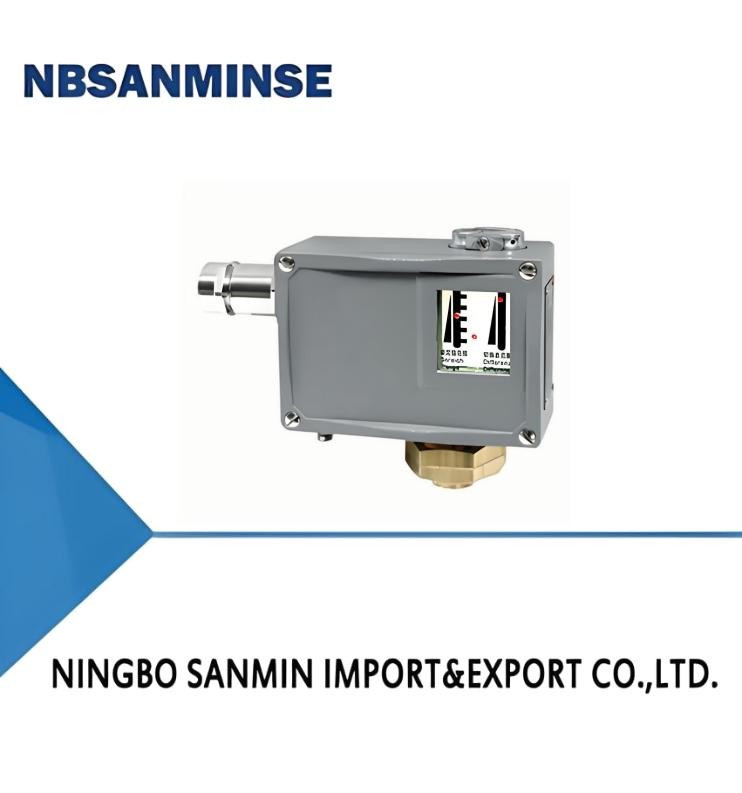

TL0002 Pressure Switch (Micro Pressure) Pressure Controller

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	CE	Model Number:	TL0002

Detail Information
Working Viscosity:	<1×10－3m2/s	Ambient Temp.:	－20℃～50℃

Product Description

Overview
The TL0002 pressure switch (micro pressure)/pressure controller adopts a diaphragm sensor, which can be used for neutral gases such as air and liquid media such as water, hydraulic oil, lubricating oil, light fuel oil, etc.
The setting value of TL0002 pressure switch (micro pressure)/pressure controller is adjustable, with a range of 0-2.5MPa. High control sensitivity.

Main Technical Performance

	Common	Explosion proof type
Working viscosity	<1×10^－3m²/s	<1×10^－3m²/s
Switching element	microswitch	Sealed switch
Explosion proof grade		Exde Ⅱ CT4～T6
Degrees of protection provided by enclosure	IP65(Compliant with DIN40050 and equivalent to IP65 in GB4208)	IP65(Compliant with DIN40050 and equivalent to IP65 in GB4208)
Ambient temperature	－20℃～50℃	－20℃～50℃
Medium temperature	0～90℃	0～120℃
Installation position		Pressure interface vertically downward
Anti-Vibration Performance	TL0002:40m/s²; TL0003:20m/s²	Max:20m/s²
Repeatability error	≤1.5%	≤1.5%
Contact capacity	AC 220V 6A(Resistive)	DC 250V 0.25A(Resistive) 60Wmax AC 250V 5A(Resistive) 1250VAmax

Specifications
Micro pressure switching difference is not adjustable

Set value adjustment range (KPa)	Switching difference greater than (KPa)	**Allowable pressure ① (KPa)	Switching frequency/minute	Pressure sensor material		Internal thread of interface	Weight (kg)	Outline dimension drawing number		Order catalog number
Set value adjustment range (KPa)	Switching difference greater than (KPa)	**Allowable pressure ① (KPa)	Switching frequency/minute	Casing	Diaphragm	Internal thread of interface	Weight (kg)	Common	Explosion proof type	Common	Explosion proof type
－16～0	0.6	50	10	Galvanized Steel	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-002265	TL0002.50-002265
－10～0	0.6	50	10	Galvanized Steel	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-003265	TL0002.50-003265
－6～0	0.6	50	10	Galvanized Steel	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-006265	TL0002.50-006265
－2.5～0	0.4	50	10	Galvanized Steel	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-008265	TL0002.50-008265
－1.6～0	0.4	50	10	Galvanized Steel	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-011265	TL0002.50-011265
0～0.6	0.2	50	10	Galvanized Steel	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-013265	TL0002.50-013265
0～1.1	0.4	50	10	Galvanized Steel	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-015265	TL0002.50-015265
0～1.6	0.4	50	10	Galvanized Steel	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-016265	TL0002.50-016265

Switching difference is not adjustable

Set value adjustment range (KPa)	Switching difference greater than (KPa)	**Allowable pressure ① (KPa)	Switching frequency/minute	Pressure sensor material		Internal thread of interface	Weight (kg)	Outline dimension drawing number		Order catalog number
Set value adjustment range (KPa)	Switching difference greater than (KPa)	**Allowable pressure ① (KPa)	Switching frequency/minute	Casing	Diaphragm	Internal thread of interface	Weight (kg)	Common	Explosion proof type	Common	Explosion proof type
(0～2.5)	(0.4)	(50)	10	aluminium	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-018265	TL0002.50-018265
(0～6)	(0.6)	(50)	10	aluminium	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-021265	TL0002.50-021265
(0～16)	(0.8)	(50)	10	aluminium	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-023265	TL0002.50-023265
(0～25)	(0.9)	(50)	10	aluminium	Nitrile rubber	G1/4	1.0	01	04	TL0002.10-024265	TL0002.50-024265
0.005～0.06	0.006	1.5	40	brass	Nitrile rubber	G1/4	1.15	02	05	TL0002.10-138066	TL0002.50-138066
0.005～0.1	0.009	1.5	40	brass	Nitrile rubber	G1/4	1.15	02	05	TL0002.10-140066	TL0002.50-140066
0.005～0.16	0.012	1.5	40	brass	Nitrile rubber	G1/4	1.15	02	05	TL0002.10-139066	TL0002.50-139066
0.005～0.25	0.015	1.5	40	brass	Nitrile rubber	G1/4	1.15	02	05	TL0002.10-141066	TL0002.50-141066
0.03～0.4	0.04	4	40	brass	Nitrile rubber	G1/4	0.85	03	06	TL0002.10-155066	TL0002.50-155066
0.03～0.6	0.05	4	40	brass	Nitrile rubber	G1/4	0.85	03	06	TL0002.10-156066	TL0002.50-156066
0.05～1	0.06	4	40	brass	Nitrile rubber	G1/4	0.85	03	06	TL0002.10-166066	TL0002.50-166066
0.1～1.6	0.12	5	40	brass	Nitrile rubber	G1/4	0.85	03	06	TL0002.10-176066	TL0002.50-176066
0.1～2.5	0.15	5	40	brass	Nitrile rubber	G1/4	0.85	03	06	TL0002.10-178066	TL0002.50-178066

Switching difference adjustable

Set value adjustment range (KPa)	Switching difference greater than (KPa)	**Allowable pressure ① (KPa)	Switching frequency/minute	Pressure sensor material		Internal thread of interface	Weight (kg)	Outline dimension drawing number		Order catalog number
Set value adjustment range (KPa)	Switching difference greater than (KPa)	**Allowable pressure ① (KPa)	Switching frequency/minute	Casing	Diaphragm	Internal thread of interface	Weight (kg)	Common	Explosion proof type	Common	Explosion proof type
(0～2.5)	(1.1)	(50)	10	aluminium	Nitrile rubber	G1/4	1.05	01	04	TL0002.00-018265	TL0002.40-018265
(0～6)	(1.5)	(50)	10	aluminium	Nitrile rubber	G1/4	1.05	01	04	TL0002.00-021265	TL0002.40-021265
(0～16)	(2.3)	(50)	10	aluminium	Nitrile rubber	G1/4	1.05	01	04	TL0002.00-023265	TL0002.40-023265
(0～25)	(2.8)	(50)	10	aluminium	Nitrile rubber	G1/4	1.05	01	04	TL0002.00-024265	TL0002.40-024265
0.005～0.06	0.016	1.5	40	brass	Nitrile rubber	G1/4	1.20	02	05	TL0002.00-138066	TL0002.40-138066
0.005～0.1	0.018	1.5	40	brass	Nitrile rubber	G1/4	1.20	02	05	TL0002.00-140066	TL0002.40-140066
0.005～0.16	0.025	1.5	40	brass	Nitrile rubber	G1/4	1.20	02	05	TL0002.00-139066	TL0002.40-139066
0.005～0.25	0.025	1.5	40	brass	Nitrile rubber	G1/4	1.20	02	05	TL0002.00-141066	TL0002.40-141066
0.03～0.4	0.08	4	40	brass	Nitrile rubber	G1/4	0.9	03	06	TL0002.00-155066	TL0002.40-155066
0.03～0.6	0.1	4	40	brass	Nitrile rubber	G1/4	0.9	03	06	TL0002.00-156066	TL0002.40-156066
0.05～1	0.11	4	40	brass	Nitrile rubber	G1/4	0.9	03	06	TL0002.00-166066	TL0002.40-166066
0.1～1.6	0.25	5	40	brass	Nitrile rubber	G1/4	0.9	03	06	TL0002.00-176066	TL0002.40-176066
0.1～2.5	0.33	5	40	brass	Nitrile rubber	G1/4	0.9	03	06	TL0002.00-178066	TL0002.40-178066

Dimension
