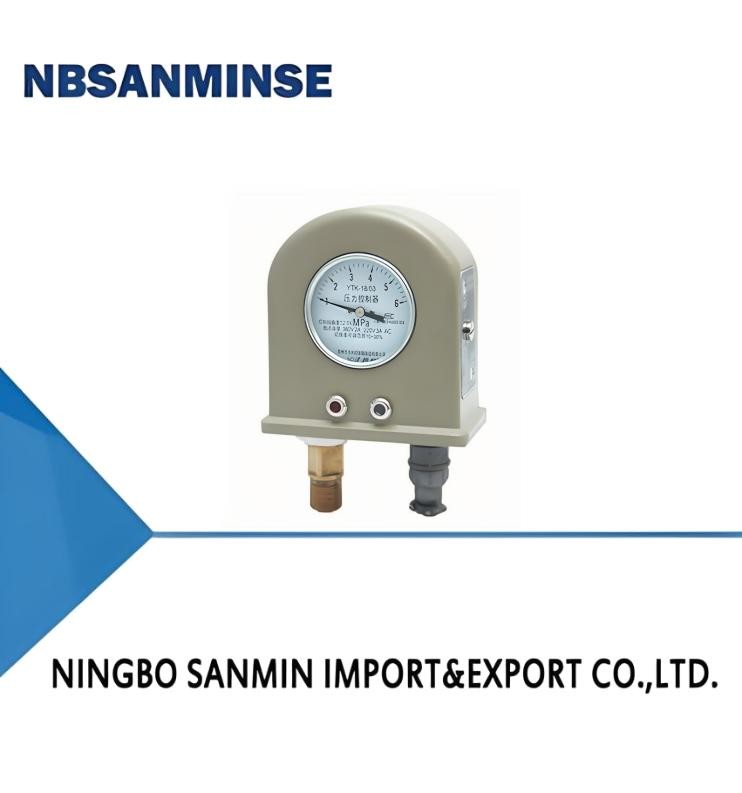

TL5228 Marine Pressure Switch Pressure Controller
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | TL5125 |
|
Detail Information |
|||
| Repeatability Error: | 1.5% | Indication Error: | ±4% |
|---|---|---|---|
Product Description
Overview
The TL5125 pressure switch/pressure controller is suitable for measuring the pressure of non explosive fluid media and performing positional (one position or two position) control.
A pressure control instrument that uses elastic elements to drive micro switches. It has the characteristics of reasonable structure, accurate action, reliable use, high frequency of opening and closing, good vibration resistance, and large contact capacity.
According to the different types of objects being tested (controlled), various types are made, including pressure indicators and non pressure indicators (both ordinary and corrosion-resistant). There is a device that can adjust the switching difference to adjust the upper and lower switching values of the measured (controlled) medium to the appropriate control pressure range.
In addition, there are signal indicator lights to enable the control circuit to emit light signals when disconnected or connected.
Main Technical Performance
| Setting value error | ±1.5%(After calibration) |
|---|---|
| Repeatability error | 1.5% |
| Indication error | ±4% |
| Control mode | One position control - normally closed or normally open |
| Two position control - normally closed and normally open | |
| Setpoint adjustment range (upper limit of pressure range) | No indication value:15~100% |
| There is an indication value:20~75% | |
| Switching difference (upper limit of pressure range) | One position (fixed): not more than 10% |
| Two position (adjustable):10~30% | |
| Contact capacity | AC 380V 2AorDC 220V 3A |
| Signal indicator light working power supply | AC 380Vor220V |
| Dielectric Strength | 50Hz sine AC 2000V for one minute |
| Usage environment | -25~70℃,Relative humidity not exceeding 90% |
| Temperature influence | Not exceeding 0.8%/10 ℃ (with a temperature deviation of 20 ± 5 ℃) |
| Weight | 1kg |
Type and pressure range
| Type | External thread of joint | Order Code Catalog | Ordering Code Catalog (with indication) |
|---|---|---|---|
| 0～0.6 | M20*1.5 | TL5125.00-117051 | TL5125.06-117051 |
| 0～1 | M20*1.5 | TL5125.00-119051 | TL5125.06-119051 |
| 0～1.6 | M20*1.5 | TL5125.00-121051 | TL5125.06-121051 |
| 0～2.5 | M20*1.5 | TL5125.00-123051 | TL5125.06-123051 |
| 0～4 | M20*1.5 | TL5125.00-125051 | TL5125.06-125051 |
| 0～6 | M20*1.5 | TL5125.00-126051 | TL5125.06-126051 |
| 0～10 | M20*1.5 | TL5125.00-127051 | TL5125.06-127051 |
| 0～16 | M20*1.5 | TL5125.00-128051 | TL5125.06-128051 |
| 0～25 | M20*1.5 | TL5125.00-129051 | TL5125.06-129051 |
| 0～40 | M20*1.5 | TL5125.00-130051 | TL5125.06-130051 |
| 0～60 | M20*1.5 | TL5125.00-131051 | TL5125.06-131051 |
