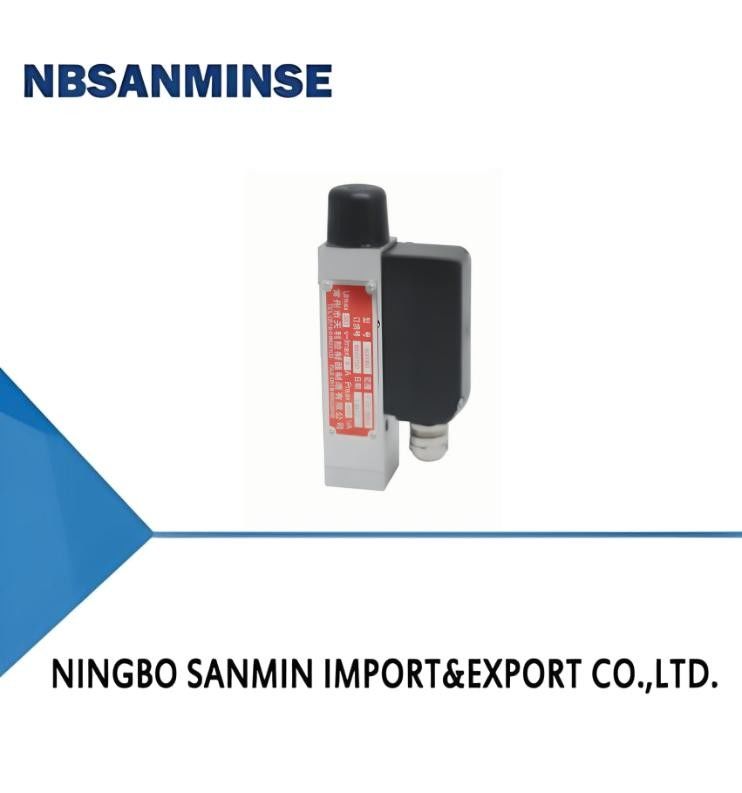

TL5228 Marine Pressure Switch Pressure Controller
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | TL0015 |
|
Detail Information |
|||
| Working Viscosity: | <1×10－3m2/s | Switching Element: | Microswitch |
|---|---|---|---|
| Ambient Temp.: | －5℃～40℃ | Medium Temp.: | 0～90℃ |
Product Description
Overview
The TL0015 pressure switch/controller adopts a diaphragm sensor, which can use neutral gases such as air and gas, as well as liquid media such as water, hydraulic oil, light fuel oil, lubricating oil, and other non corrosive materials for the pressure sensor material.
The setting value of TL0015 pressure switch/pressure controller is adjustable, with a range of 0.02~3MPa. Compact structure, small size, and particularly good anti vibration performance.
Main Technical Performance
| Working viscosity | <1×10－3m2/s |
|---|---|
| Switching element | Microswitch |
| Degrees of protection provided by enclosure | IP65(Compliant with DIN40050 and equivalent to IP65 in GB4208) |
| Ambient temperature | －5℃～40℃ |
| Medium temperature | 0～90℃ |
| Anti-Vibration Performance | Max 100m/s2 |
| Repeatability error | ≤1.5% |
| Contact capacity | AC 220V 6A(Resistive) |
Specifications
Switching difference is not adjustable
| Setting value adjustment range (MPa) | Switching difference not greater than (MPa) | **Allowable pressure ① (MPa) | Switching frequency/minute | Pressure sensor material | Pressure interface type ② | Internal thread of interface | Weight (kg) | Outline dimension drawing number | Order catalog number | |
|---|---|---|---|---|---|---|---|---|---|---|
| Casing | Sealing ring and diaphragm | |||||||||
| Adjust the set value with the hexagon socket screw with plastic protective cover: | ||||||||||
| 0.02～1.2 | 0.14 | 5 | 60 | aluminium | Nitrile rubber | I | G1/4 | 0.4 | 01 | TL0015.10-153265 |
| 0.05～3 | 0.2 | 5 | 60 | aluminium | Nitrile rubber | I | G1/4 | 0.4 | 01 | TL0015.10-170265 |
| 0.02～1.2 | 0.14 | 5 | 60 | aluminium | Nitrile rubber | P | G1/4 | 0.4 | 02 | TL0015.10-153268 |
| 0.05～3 | 0.2 | 5 | 60 | aluminium | Nitrile rubber | P | G1/4 | 0.4 | 02 | TL0015.10-170268 |
Note: In practical work, even a brief peak pressure cannot exceed this value.
② I interface is internal thread, P interface is flange
01
02
03
