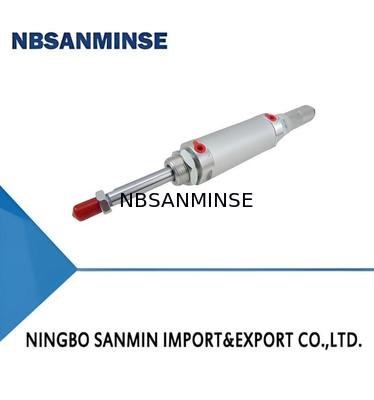

QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output

Large Image : QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	QGEW-1

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

QGEW-1 similar as 10Y-2 mini Air Cylinder adjustable Cylinder Two-end output

Description

Proof Pressure:	15 (bar)	Cushioning Type:	Cushion Pad
Minimum Stroke:	37(mm)	Operating Pressure:	1～10(bar)
Operating Speed:	50～700 (mm/s)	Material:	Aluminum
Highlight:	QGEW-1 Model Pneumatic Air Cylinder , 15 Bar Proof Pressure Air Cylinder , Cushion Pad Cushioning Pneumatic Cylinder

I. Features

It is a derivative series of the imported 10Y-2 series cylinders, featuring the characteristics of the 10Y-2 series, and most parts are interchangeable.
It uses oil-free (or oil-lubricated) lubrication, avoiding oil-gas contamination, and the oil mist lubricator can be omitted.
It can output force from both ends, and the cylinder stroke can also be adjusted by installing a limit ring at one end.

II. Graphical Symbols

Standard Type

Type with Switch

III. Model

Standard Type

Type with Switch

①	Cylinder Model	See Cylinder Performance Table
②	Installation Form
③	Cylinder Bore	See Cylinder Performance Table
④	Cylinder Stroke	See Cylinder Performance Table
⑤	Switch Model	See Switch Performance Table
Code	K	H
Name	FD-03R	FD-13RV
⑥	Number of Switches
⑦	Rod End Connection Accessory
⑧	Number of Connection Accessories

IV. Main Technical Parameters

Item	Standard Type	Type with Switch
Model	QGEW-1	QGEW-1R
Cylinder Bore (mm)	Φ20,Φ25,Φ32,Φ40
Maximum Stroke (mm)	Φ20:300;Φ25:400;Φ32:500;Φ40:600
Minimum Stroke (mm)	No Restriction		37
Operating Pressure Range (bar)	1～10
Proof Pressure (bar)	15
Operating Speed Range (mm/s)	50～700
Operating Temperature Range (℃)	-25 ～ +80 (under non-freezing conditions)
Operating Medium	Dry and Clean Compressed Air
Cushioning Type	Cushion Pad
Lubrication	Not Required (Oil-Lubricated Optional)

Note: For the main technical parameters of the switch, refer to the relevant section of the 10Y-1 series cylinders.
