QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

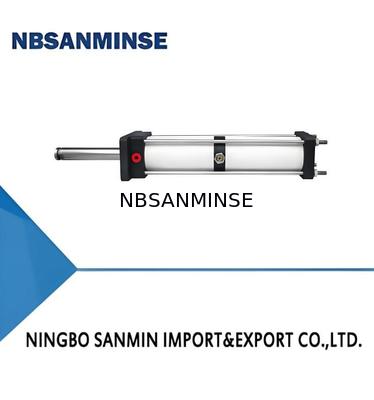

Large Image : QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	QGT

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Description

Cushioning Angle:	2~8 (degrees)	Medium And Ambient Temp:	-5~+60(℃)
Stroke S:	125(mm)	Maximum Impact Work At P=6bar:	31.6(≥N ·m)
Material:	Aluminum	Impact Frequency At P=6bar:	60 (times/min)
Highlight:	QGT Model Pneumatic Air Cylinder , 2~8 Degrees Cushioning Angle Pneumatic Air Cylinder , -5~+60℃ Operating Temperature Pneumatic Air Cylinder

I. Features

Utilizes compressed air to generate large impact force, suitable for multiple applications such as printing, blanking, stamping, and assembly.
Simple structure, low air consumption, and large impact force.

II. Model

① Cylinder Model

② Mounting Type (See Next Page)

③ Cylinder Bore (See Below Table)

④ Stroke (See Below Table)

III. Main Technical Parameters of Cylinder

Cylinder Bore(mm)	Φ63	Φ80	Φ100	Φ125
Working Pressure(bar)	2~8
Working Medium	Dried compressed air with oilmist,filtered to remove water
Medium and Ambient Temperature(℃)	-5~+60
Stroke S(mm)	125	160	200	250
Maximum Impact Work at P=6bar(≥N ·m)	31.6	69	143	294
Stroke Corresponding to Maximum Impact Work(mm)	60	80	110	132
Impact Frequency at P=6bar (times/min)	60	50	40	30

Note: The maximum impact work is at 0.55 S of the stroke in the table.

IV. Graphic Symbols and Mounting Types

SD (Basic Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 1

J (Axial Foot Mount Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 2

F (Rear Flange Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 3

FQ (Front Flange Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 4

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 5

Tag:

Contact Person: Ina Chen

Tel: 0086-15168536055

Fax: 86-574-88915660
