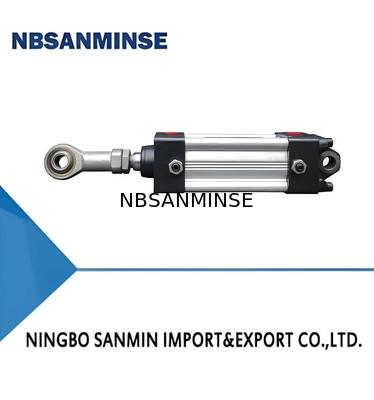

10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5

10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5
10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5

Large Image :  10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: 10B-5
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5

Description
Proof Pressure: 15(bar) Operating Medium: Dry And Clean Air
Lubrication: Not Required Cushion Stroke: 20(mm)
Operating Temp: -25 ~ +80(℃) Material: Aluminum
Highlight:

10B-5 Model Pneumatic Air Cylinder

,

15 Bar Proof Pressure Air Cylinder

,

Dry and Clean Air Pneumatic Cylinder

I. Features:

  1. Compact structure and attractive appearance.
  2. Composite Y-type sealing ring for reliable and durable use.
  3. Oil-impregnated bearing guide for wear resistance and stable operation.
  4. Smooth tank body side for easy cleaning.
  5. Integrated buffer valve and air port for more convenient installation.
  6. Rodless design; the cylinder head and cover are solid, enhancing rigidity.
  7. Same installation dimensions as the 10A-5 series cylinders, allowing mutual replacement

II. Model:

10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5 0

III. Main Technical Parameters

Cylinder Model 10B-5 (Standard)
Cylinder Bore D (mm) Φ32 Φ40 Φ50 Φ63   Φ80 Φ100 Φ125 Φ160 Φ200
Maximum Stroke S (mm) 500  800  1000  1500
Operating Pressure Range (bar) 0.5~10
Pressure Resistance (bar) 15
Operating Speed Range (mm/sec) 50～700
Operating Temperature Range (℃) -25 ~ +80 (under non-freezing conditions)
Operating Medium  Dry and Clean Air
Lubrication Not Required (Lubrication Optional)
Cushioning Adjustable Cushioning on Both Sides
Cushion Stroke (mm) 20  25  28

IV. Overall and Mounting Dimensions

  1. SD (Basic Type)

10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5 1

10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5 2

10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5 3

10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5 4

10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5 5

10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5 6

10B-5 Composite Y-type sealing ring for reliable and durable use same install size with 10A-5 7
