QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

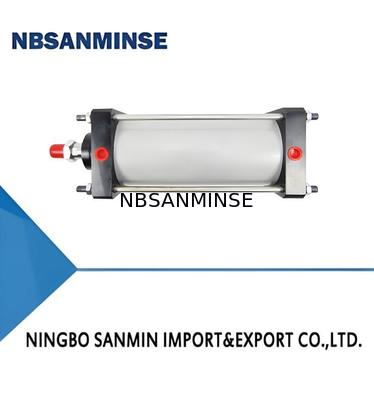

Large Image : QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANNINSE
Certification:	ISO9001
Model Number:	QGaB QGbB

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads

Description

Working Pressure:	1.5~8 (bar)	Proof Pressure:	12 (bar)
Stroke:	20～200(mm)	Operating Temp:	-25 ～ +80(℃)
Bore:	Φ40 (mm)	Material:	Aluminum
Highlight:	QGaB QGbB Model Pneumatic Air Cylinder , 12 bar Proof Pressure Air Cylinder , 1.5~8 bar Working Pressure Pneumatic Cylinder

I. Features

1.It is a derivative product of QGA and QGB series cylinders.

2.The piston rod diameter is larger than the standard size, with good rigidity and can bear large loads.

II. Graphical Symbols

Cylinder without Cushion

Cylinder with Cushion

III. Model

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads 2

IV. Main Technical Parameters

Model	QGAb,QGBb
Bore (mm)	Φ40	Φ50	Φ63	Φ80	Φ100	Φ125	Φ160	Φ200
Stroke (mm)	20～200	25～250	30～300	40～400	50～1000	63～1250	80～1600	100～2000
Working Pressure (bar)	1.5～8
Proof Pressure (bar)	12
Operating Temperature Range (℃)	-25 ～ +80 (under non-freezing conditions)
Working Medium	Purified compressed air with oil mist

V. Outline and Installation Dimensions

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads 3

Outline Drawing of QGAb Type Cylinder

QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads 4
