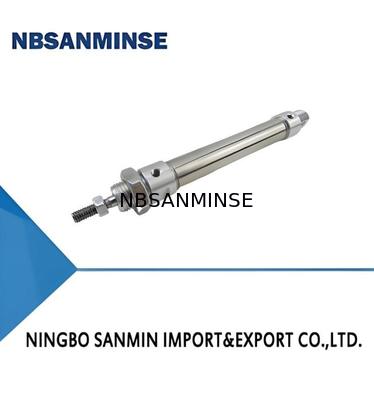

I. Features:
1.Parts are made of aluminum alloy, featuring light weight and small volume. The inner hole of the cylinder barrel is hard anodized, especially wear-resistant, with a long service life.
2.Installation dimensions comply with ISO (International Standard).
3.Oil-free (oil-lubricated is also available) lubrication, avoiding oil-gas pollution, and the oil mist lubricator can be omitted.
II. Model
| ① |
Cylinder Model |
See Cylinder Performance Table for details |
| ② |
Installation Form |
See the diagram on the next page for details |
| ⑤ |
Rear Cover Form |
See the diagram on the next page for details |
| Code |
S |
P |
K |
| Name |
Basic Type |
Axial Port |
FD-13RV |
| ⑥ |
Valve Operation Mode |
A:Push Type when Energized |
| B:Pull Type when Energized |
| ⑦ |
Valve Operating Voltage |
5:AC220V 50HZ |
| 8:DC24V |
| ⑧ |
Switch Model |
See Switch Performance Table for details |
| Code |
K |
H |
| Name |
FD-03R |
FD-13RV |
| ⑨ |
Number of Switches |
| ⑩ |
Rod End Connection Accessories |
See the diagram on the next page for details |
III. Graphical Symbols and Appearance
IV. Main Technical Parameters
1.Main Technical Parameters of Cylinder
| Variety |
Standard Type |
With Switch Type |
With Valve Type |
With Vave and Switch Type |
| Model |
10Y-1 |
10Y-1R |
10Y-1V |
10Y-1K |
| Cylinder Bore(mm) |
φ8,Φ10,Φ12,Φ16,Φ20,φ25,中32,Φ40,φ50 |
中20,Φ25,中32,中40,φ50 |
| Maximum Stroke(mm) |
Φ8,Φ10:200;Φ12,Φ16:300;Φ20,Φ25:400;φ32:500;Φ40:600;φ50:800 |
| Maximum Stroke(mm) |
No Limit |
37 |
No Limit |
37 |
| Operating Pressure Range (bar) |
Φ8~16:1～10;Φ20~φ50:0.5～10 |
1.5～10 |
| Proof Pressure (bar) |
15 |
| Operating Speed Range(mm/s) |
Φ8~16:50～500;20~50:50～700 |
50~500 |
| Operating Temperature Range(℃) |
-25～+80(under non-freezing conditions) |
| Working Medium |
Dry and Clean Compressed Air |
| Cushioning Form |
Cushion Pad |
| Oil Supply |
Not Required(Oil-lubricatedis Also Available) |
| Model |
FD-03R |
FD-13RV |
| Operating Voltage Range |
5~240V DC/AC |
5~240V DC/AC |
| Operating Current Range |
100mA(max) |
500mA |
| Maximum Contact Capacity |
10W(max) |
10W(max) |
| Leakage Current |
0 |
None |
| Indicator Light |
Red LED |
Yellow LED |
| Operation Time |
|
|
| Recovery Time |
|
|
| Impact Resistance |
30G |
30G |
Note:
① Switch FD-03R is applicable to cylinders with bore Φ8～Φ50.
② FD-13RV is applicable to cylinders with bore Φ8～Φ50.
③ Please refer to the relevant table of valves in the 10Y-2 series cylinders for the main technical parameters of the valve.
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
