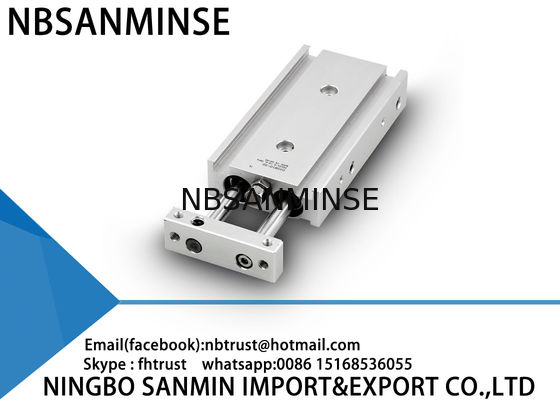

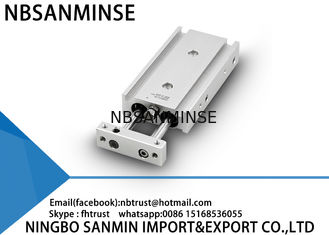

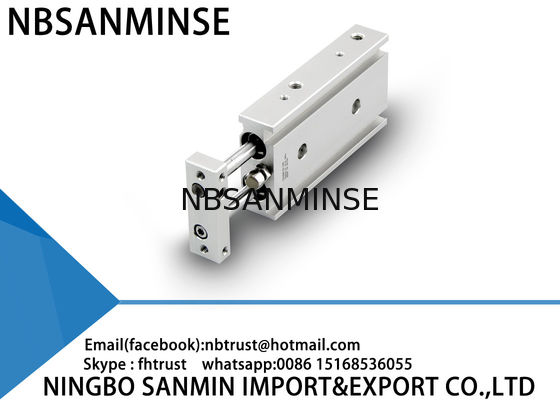

Custom Double Rod Pneumatic Air Cylinder Basic Type 6mm 10mm 15mm Bore Size

Minimum Order Quantity : 20 Price : Negotiationc
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiationc
Supply Ability : Negotiationc
Place of Origin: NINGBO Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: CXS

Detail Information

Bore Size: 6 , 10 , 15 , 20 , 25 , 32 Fluid: Air ( Non - Lube )
Max Pressure: 0.7MPa Temperature: - 10 To 60 ℃ ( No Freezing )
Cushion: Rubber Bumper Port Size: M5 × 0 . 8 , Rc1 / 8
High Light:

smc air cylinders

,

guided pneumatic cylinder

Product Description

Custom Double Rod SMC Pneumatic Cylinder Basic Type 6mm 10mm 15mm Bore Size





Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.
7: Reliable quality assured and active after-sell service


Specifications



Bore size 6 10 15 20 25 32
Fluid Air (Non – lube)
Proof pressur 1.05MPa
Maximum operating pressure 0.7MPa
Minimum operating pressure 0.15MPa 0.1MPa 0.05MPa
Ambient and fluid temperature -10 to 60 ℃ (No freezing)
Piston speed 30 to 300 mm/s 30 to 800mm/s 30 to 700mm/s 30 to 600mm/s
Cushion Rubber bumper
Stroke adjustable range 0 to – 5 mm compared to the standard stroke
Port size M5 × 0.8 Rc 1 / 8
Bearing Type Slide bearing , Ball bushing bearing (Same dimensions for both)
Allowable kinetic energy 0.0023J 0.064J 0.095J 0.17J 0.27J 0.32J




Custom Double Rod Pneumatic Air Cylinder Basic Type 6mm 10mm 15mm Bore Size 0Custom Double Rod Pneumatic Air Cylinder Basic Type 6mm 10mm 15mm Bore Size 1


Our products are high quality with 12 month guarantee ,and support paypal payment.
