Sanmin Pneumatic Pulse Valve High Performance With ADC12 die cast Body Pipe connect type Dust Proof Valve

Minimum Order Quantity :	20	Price :	Negotiation
Packaging Details :	Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice	Delivery Time :	Negotiation
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	10500 PC / Year

Place of Origin:	NINGBO	Brand Name:	NBSANMINSE
Certification:	ISO9001	Model Number:	QG - Z - 25DD / 45DD

Detail Information
Pressure:	0 . 3 - 0 . 6MPa	Temperature:	- 25 ~ 60 ℃
Relative Humidity:	≤ 85 %	Medium:	Clean Air
Voltage:	AC220V / DC24V / AC110V / AC24V	Diameter:	G1” / G1-1 / 2 "
Body:	ADC 12 Die Cast	Armature:	430FR Stainless Steel
Highlight:	electromagnetic pulse valve , pulse jet solenoid valve

Product Description

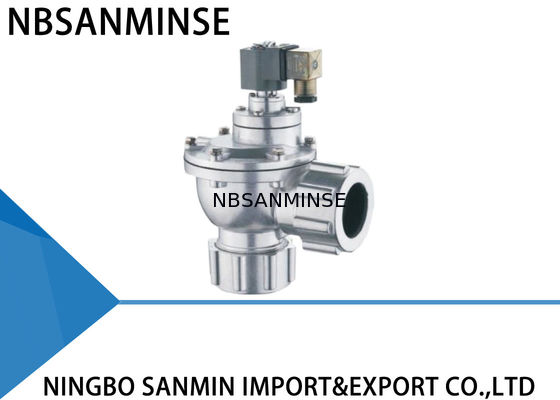

GOYEN Similar Type

Right Angle Type

Pulse valve is composed of pilot head, diaphragm and valve aluminum body. The back cavity area of diaphragm is bigger than the front one. The diaphragm is kept at the closed position due to the effect of big pressure.

The pulse signal disappears and the spring of the armature works immediately to resume the moving bar so as to close the balancing hole. The pressure gas in the back cavity of the diaphragm and the spring work together to close the passage the valve stops cleaning.

The damping hole in the diaphragm functions to damp the airflow when the moving bar of armature holds up for balancing and to transit the air to the back cavity as soon as the balancing hole is shut to close the passage and stop cleaning.

Material Construction

Body	ADC12 die cast
Armature	430FR stainless steel
Diaphragm	Nitrile or viton
Spring	321 Stainless steel
Fasteners	302 Stainless steel

Technical Parameter

	Right angle	Embedded	Inline	Plug
Design-pressure	0.3~0.8MPa	0.2~0.8MPa	0.3~0.8MPa	0.2~1.0MPa
Working-pressure	0.3~0.6MPa	0.2~0.6MPa	0.3~0.6MPa	0.2~0.6MPa
Ambient Temperature	-25~60℃ Customized for lower or higher temperature
Relative Humidity	≤85%
Working Medium	Clean Air
Voltage	AC220V/DC24V/AC110V/AC24V Customized
Protection Class	IP65
Diaphragm Life	Over One Million Cycles
Cv/Kv	Call us for detail

Common failure and troubleshooting

Use period	Failure phenomena	Possible Reason	Troubleshooting
During installation and commissioning	The valves cannot all be opened, but the leading part does act.	Check the gas dome pressure to see if it is too low.	Check the leakage
	Some valves do not work, but the others are normal.	Check the valve coil connection and coil	Replace the accessories
	The valves cannot all be closed. There is leakage. There is no way to establish a gas dome.	Y-valve. Some valves for the same gas dome are leaking, thus causing leakage for all the valves.	Check the leakage
		Z-valve. The valve inlet and blowing muzzle are installed backwards.	Re-install
	Some valves cannot be closed. There is leakage.	There is some dirt or debris on the membrane, ii is blocking the moving iron core.	Clean the membrane and check that the membrane is complete. Check the moving iron core and air lock.
	A valve closing is slowly.	The membrane orifice is blocked.	Dredge the membrane orifice
During use period	Some valves are leaking. The membrane cannot close tightly and the valve is always open a little.	There is some dirt or debris on the membrane, the leading part is damaged. Moving iron core is blocked.	Clean the membrane and check that the membrane piece is complete. Check the moving iron core and the air lock. Replace the accessories if necessary.
	Coil is hot and burned out.	It has been turned on for too long.	Check the working condition of the control system.
	Voltage exists but the valve does not operate.	Membrane is damaged and the orifice is blocked.	Replace the accessories in time.
	Ambient temperature is below -20℃. The valve is leaking and cannot open.	Ambient temperature is too low and here is frost in the valve.	Pay attention to insulation and maintaining proper temperatures.
