MHS2 Series Rotating Parallel Jaw Gripper High Effective Φ 32 Φ 40 Φ 50 Φ 63

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: China Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: MHS2

Detail Information

Bore Size: 16 , 20 , 25 , 32 , 40 , 50 , 63 Mm Fluid: Air
Pressure: 0 . 1 To 0 . 6 Temperature: - 10 To 60 ℃
Lubrication: Not Required Action: Double Acting
High Light:

smc locking cylinder

,

smc air cylinders

Product Description

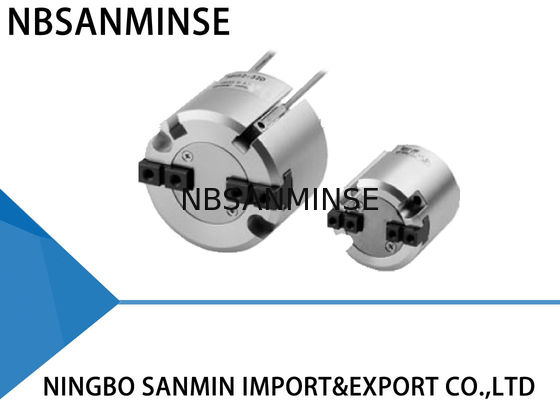

MHS2 Series Rotating Parallel Jaw Gripper High Effective Φ 32 Φ 40 Φ 50 Φ 63






Model / Specifications



Model MHS2 – 16D MHS2 – 20D MHS2 – 25D MHS2 – 32D MHS2 – 40D MHS2 – 50D MHS2 – 63D
Bore Size 16 20 25 32 40 50 63
Fluid Air
Operating Pressure ( MPa ) 0 . 2 to 0 . 6 0 . 1 to 0 . 6
Ambient and fluid temperature ( ℃ ) - 10 to 60
Repeatability ( mm ) ± 0 . 0 1
Max . operating frequency ( c . p . m ) 120 60
Lubrication Not required
Action Double acting
Effective gripping force ( N ) at 0 . 5 MPa Note) External Grip 21 37 63 111 177 280 502
Internal Grip 23 42 71 123 195 306 537
Opening / Closing Stroke ( Both sides ) ( mm ) 4 4 6 8 8 12 16
Weight 58 96 134 265 345 515 952



Note ) Values for Φ 16 to Φ 25 are with gripping point L = 20 mm , and for Φ 32 to Φ 63 with gripping point L = 30 mm .

Refer to " Effective Gripping Force " Data on pages 591 and 592 for the gripping force at each gripping position .




Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Reliable quality assured and active after-sell service
5: One year quality guarantee



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.




MHS2 Series Rotating Parallel Jaw Gripper High Effective Φ 32 Φ 40 Φ 50 Φ 63 0MHS2 Series Rotating Parallel Jaw Gripper High Effective Φ 32 Φ 40 Φ 50 Φ 63 1
