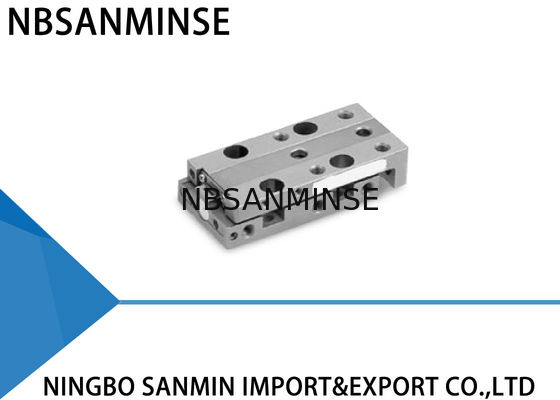

MXJ Air Slide Table M3 × 0 . 5 Piping Port Size Double Acting Non - Lube Standard Equipment Cylinder
Specifications
| Model |
MXJ4 |
MXJ6 |
MXJ8 |
| Bore Size ( mm ) |
4 . 5 |
6 |
8 |
| Piping Port Size |
M3 × 0 . 5 |
| Fluid |
Air |
| Action |
Double Acting |
| Operating Pressure |
0 . 15 to 0 . 7 MPa |
| Proof Pressure |
1 . 05 MPa |
| Ambient and Fluid Temperature |
- 10 to 60 ℃ |
| Operating Spend range ( Average operating speed ) Note ) |
50 to 500 mm / s
( Metal Stopper : 50 to 200 mm/s )
|
| Cushion |
Rubber Bumper
( Metal Stopper : Without cushion )
|
| Lubrication |
Non - Lube |
| Stroke Adjuster |
Standard Equipment |
| Stroke Adjuster range ( Metal stopper ) |
Both ends each 0 to 5 mm |
| Auto Switch |
Reed auto switch ( 2 – wire , 3 – wire )
Solid state auto switch ( 2 – wire , 3 – wire )
2 – Color indication solid state auto switch ( 2 – wire , 3 – wire )
|
| Stroke length tolerance |
+1mm
0mm
|
Standard Stroke
| Model |
Standard Stroke ( mm ) |
| MXJ4 |
5 , 10 |
| MXJ6 |
5 , 10 , 15 |
| MXJ8 |
5 , 10 , 15 , 20 |
Symmetric Type
Nil : Standard
L : Symmetric
Adjuster Option
Nil : Without adjuster
CS : Metal stopper on extension end
CT : Metal Stopper on returaction end
C : Metal Stopper on both ends
Functional Option
Nil : With out Option
P : Axial piping Type
Switch rail
Nil : With magnet and switch rail
N : Without magnet and switch rail
Auto switch
Nil : Without auto switch ( Built - in magnet )
Number of auto switches
Nil : 2 pcs
S : 1 pc
n : " n " pcs
Mode to Order
Refer ro page 210 for details
