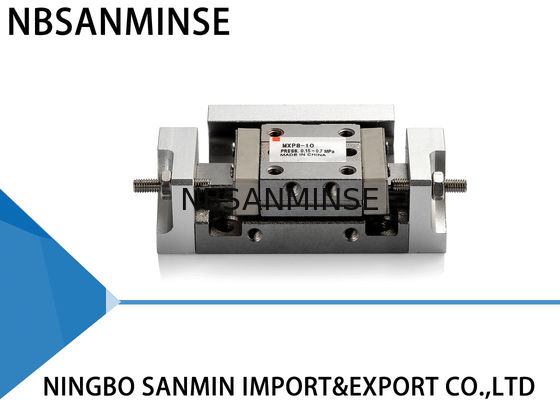

MXP Air Slide Table Series Pneumatic Cylinder Double Acting Bore Size 6 - 16 mm
Specifications
| Model |
MXP6 |
MXP8 |
MXP10 |
MXP12 |
MXP16 |
| Bore Size ( mm ) |
6 |
8 |
10 |
12 |
16 |
| Piping Port Size |
M3 × 0 . 5 |
M5 × 0 . 8 |
| Fluid |
Air |
| Action |
Double Acting |
| Operating Pressure |
0 . 15 to 0 . 7 MPa |
| Proof Pressure |
1 . 05 MPa |
| Ambient And Fluid Temperature |
- 10 to 60 ℃ |
|
Operating speed range
( Average operating speed )
|
50 to 500 mm/s
( Adjuster option / Metal stopper : 50 to 200 mm / s
|
| Cushion |
Rubber Bumper
Shock Absorber ( Option is not available for Series MXP and MXP8 )
Non ( Adjustable option / Metal stopper )
|
| Lubrication |
Non - Lube |
| Stroke Adjustable |
Standard equipment ( Adjustable on one side only , for the MX |
| Auto Switch |
Read auto switch ( 2 – wire , 3 – wire )
Solid state auto switch ( 2 – wire , 3 – wire )
2 – Color indication solid state auto switch ( 2 – wire , 3 – wire )
|
| Stroke length tolerance |
+1mm
0mm
|
None ) Average operating Speed : Speed that the stroke is divided by a period of time from starting the operation to reaching the end .
Theoretical Output
( N )
|
Bore Size
( mm )
|
Piston area ( mm ² ) |
Operating Pressure ( MPa ) |
| 0.2 |
0.3 |
0.4 |
0.5 |
0.6 |
0.7 |
| 6 |
28 |
6 |
8 |
11 |
14 |
17 |
20 |
| 8 |
50 |
10 |
15 |
20 |
25 |
30 |
35 |
| 10 |
79 |
16 |
21 |
32 |
40 |
47 |
55 |
| 12 |
113 |
23 |
34 |
45 |
57 |
68 |
79 |
| 16 |
201 |
40 |
60 |
80 |
101 |
121 |
141 |
Bore Size / Standard Stroke ( mm )
| 6 |
5 , 10 |
| 8 |
10 , 20 |
| 10 |
10 , 20 |
| 12 |
15 , 25 |
| 16 |
20 , 30 |
Adjuster Option
Symbol : Adjuster Option
Nil : Rubber Stopper
B : Shock Absorber
C : Metal Stopper
Magnet / Switch Rail
Nil : With magnet and rail
N : Without Magnet and rail
Auto Switch
Nil : Without Auto switch ( Built - in magnet )
Number of auto switches
Nil : 2 pcs
S : 1pc
N : " n " pcs
