| Place of Origin: | China |
| Brand Name: | NBSANMINSE |
| Certification: | ISO9001 |
| Model Number: | CJP2 |
| Minimum Order Quantity: | 20 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice |
| Delivery Time: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | Negotiation |
| Action: | Double Acting , Single Rod | Proof Pressure: | 1 MPa |
|---|---|---|---|
| Lubrication: | Not Required ( Non - Lube ) | Rod End Style: | With Thread / Without Thread |
| Piston Speed: | 10 To 500 Mm / S | Cushion: | Rubber Bumper |
| High Light: | smc locking cylinder,guided pneumatic cylinder |
||

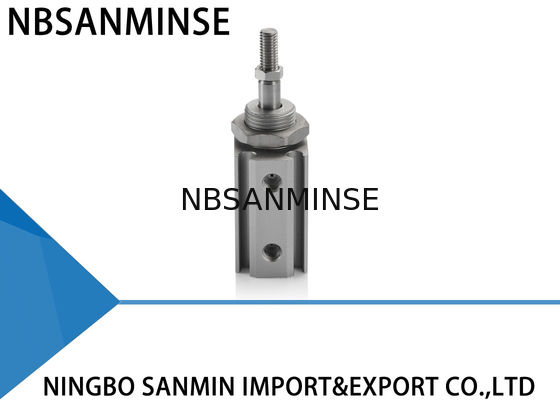

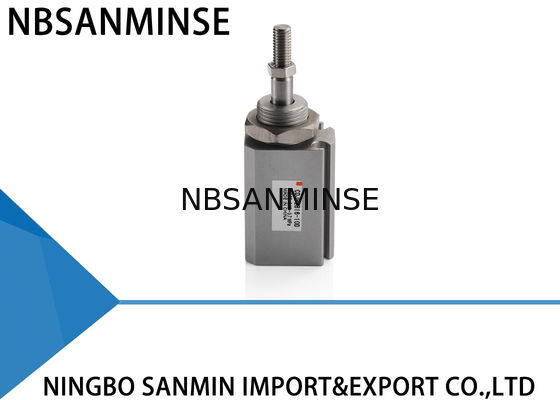

CJP2 Double Acting Single Rod Pin Cylinder With Thread / Without Thread Pneumatic Cylinder
Specifications
| Action | Double acting , Single rod | |
| Maximum operating pressure | 0.7MPa | |
|
Minimum operating pressure |
φ 4 | 0.15MPa |
| φ6 | 0.12MPa | |
| φ10 , 16 | 0.06MPa | |
| Proof pressure | 1MPa | |
| Ambient and fluid temperature |
Without auto switch : -10 to 70 ℃ With auto switch : -10 to 60 ℃ (No Freezing) |
|
| Lubrication | Not Required ( Non - lube) | |
| Stroke length tolerance |
+1.0 0 |
|
| Rod end style | With thread / Without thread | |
| Piston speed | 10 to 500 mm/s | |
| Cushion | Rubber Bumper | |
| Mounting Note ) | Basic, Flange , Foot , Clevis ,Trunnion | |
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Reliable quality assured and active after-sell service
4: One year quality guarantee
5: High quality with competitive price .
6: Sample order & small quantity order is acceptable .
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
