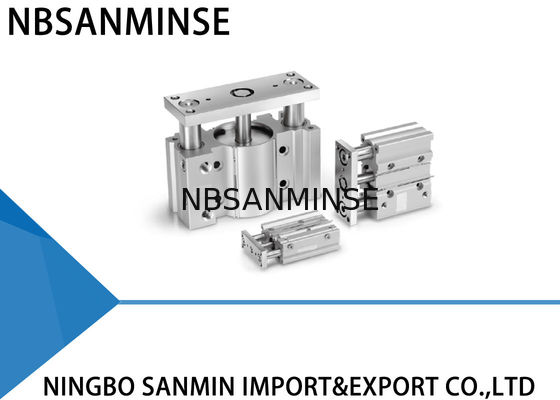

MGP Series Compact Guided Pneumatic Cylinder 12 - 100mm Bore Size Double Acting Action

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: China Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: MGP

Detail Information

Auto Switch: Without Auto Switch Bore Size: 12 - 100 Mm
Port Thread Type: M5 × 0.8 , RC , NPT , G Action: Double Acting
Fluid: Air Cushion: Rubber Bumper On Both Ends
High Light:

smc locking cylinder

,

guided pneumatic cylinder

Product Description

MGP Series Compact Guide Cylinder 12 ~100mm Bore Size Double Acting Action





Specification



Bore Size ( mm ) 12 16 20 25 32 40 50 63 80 100
Action Double Acting
Fluid Air
Proof pressure 1.5MPa
Max Pressure 1.0MPa
Min Pressure 0.12MPa 0.1MPa
Ambient and fluid temperature - 10 to 60 ℃ ( No freezing )
Piston speed 50 to 500 mm / s 50 to 400 mm/s
Cushion Rubber bumper on both ends
Lubrication Not required ( Non – lube )
Stroke length tolerance

+1.5mm

0mm



Standard Strokes



Bore Size Standard Stroke ( mm )
12 , 16 10 , 20 , 30 , 40 , 50 , 75 , 100 , 125 , 150 , 175 , 200 , 250
20 , 25 20 , 30 , 40 , 50 , 75 , 100 , 125 , 150 , 175 , 200 , 250 , 300 , 350 , 400
32 to 100 25 , 50 , 75 , 100 , 125 , 150 , 175 , 200 , 250 , 300, 350 , 400





Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .

3: Reliable quality assured and active after-sell service
4: One year quality guarantee
5: High quality with competitive price .
6: Sample order & small quantity order is acceptable .



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



MGP Series Compact Guided Pneumatic Cylinder 12 - 100mm Bore Size Double Acting Action 0MGP Series Compact Guided Pneumatic Cylinder 12 - 100mm Bore Size Double Acting Action 1
