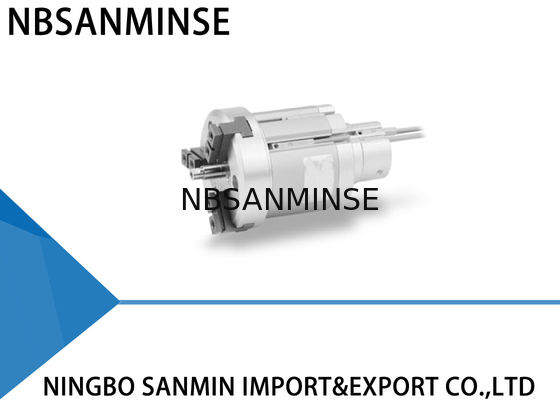

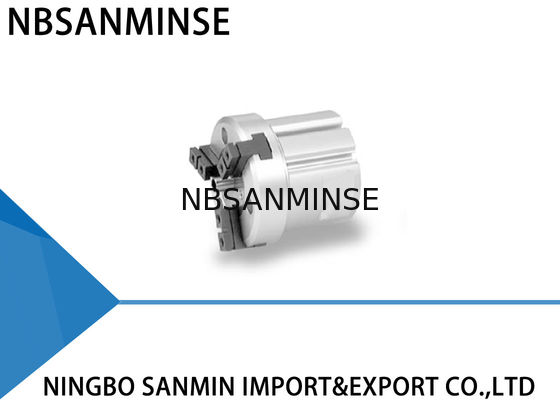

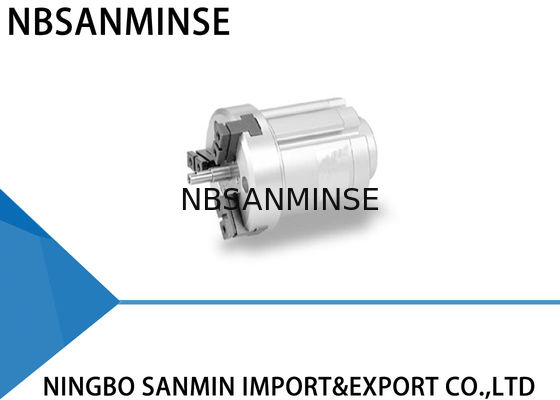

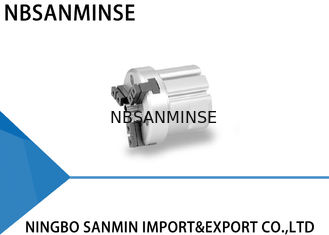

MHSH3 Series Parallel Type Air Cylinder Gripper 3 Finger Type Through - Hole Type

MHSH3 Series Parallel Type Air Gripper 3 - Finger Type Through - Hole Type Air Gripper

Air Gripper Specification

Model : MHSH3 - 16D , MHSH3 - 20D , MHSH3 - 25D , MHSH3 - 32D , MHSH3 - 40D , MHSH3 - 50D , MHSH3 - 63D , MHSH3 - 80D

Cylinder bore size (mm): 16 , 20 , 25 , 32 , 40 , 50 , 63 , 80

Fluid : Air

Operating pressure ( MPa ) : 0.2 to 0.6 , 0.1 to 0.6

Ambient and fluid temperature ( ℃ ) : - 10 to 60

Repeatability ( mm ) : ± 0 . 01

Max . Operating Frequency ( C.P.M. ) : 120 , 60

Lubrication : Not reguired

Action : Double acting

How to Order

Dust cover

Nil : None

J : With dust cover

Number of fingers

3 : 3fingers

Bore size

16 : 16mm

20 : 20mm

25 : 25mm

32 : 32mm

40 : 40mm

50 : 50mm

63 : 63mm

80 : 80mm

Center pusher

Nil : Without center pusher

A : Cylinder type

B : Spring type

Dust cover type

( with dust cover only )

Nil : Chloroprene rubber

F : Fluororubber ( FKM )

S : Silicone rubber ( Si )

Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .

3: Reliable quality assured and active after-sell service
4: One year quality guarantee
5: High quality with competitive price .

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder,  air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
