DNC VDMA / ISO6431 Pneumatic Air Cylinder Double Acting Cylinder Standard

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: China Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: DNC

Detail Information

Bore: 32 , 40 , 50 , 63 , 80 , 100 , 125 Motion: Double Acting
Series: DNC , DNCD Fluid: Air
Pressure Range: 0.1 ~ 1 Mpa Operating Speed: 50 ~ 500 Mm/sec
Ambient Temp: -10 ~ 70 ℃ Cushion: Adjustable Cushion At Both Ends
High Light:

smc air cylinders

,

guided pneumatic cylinder

Product Description

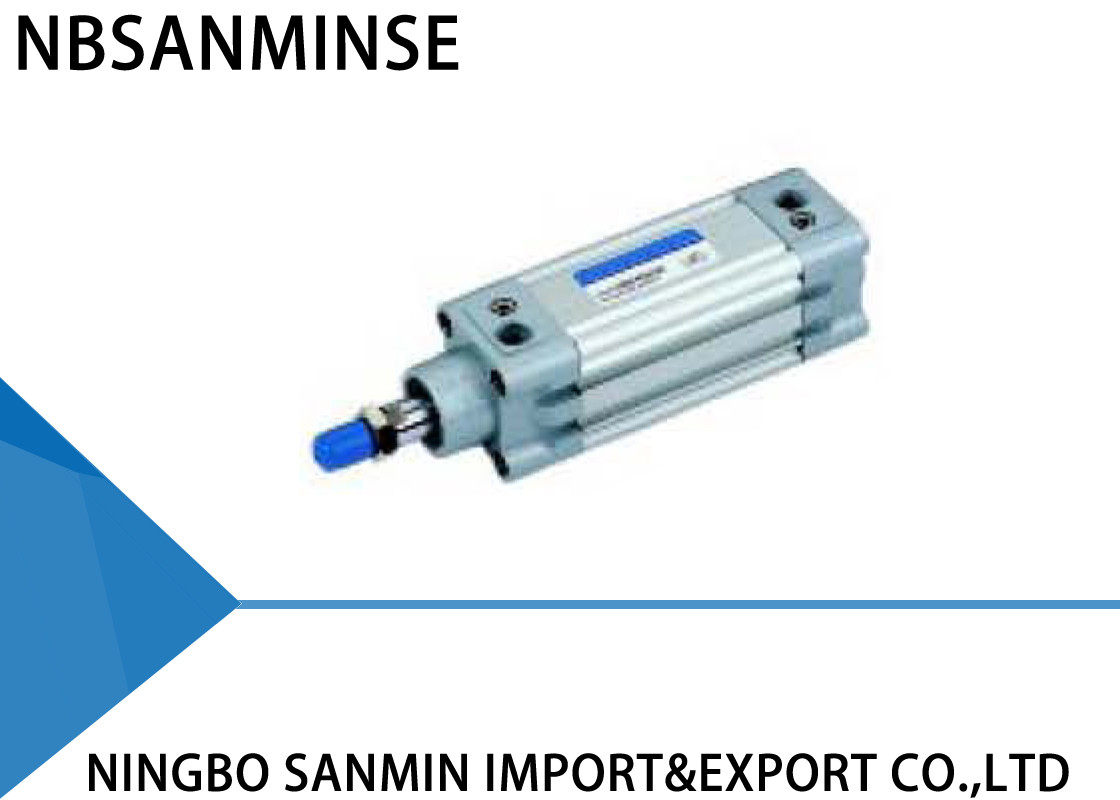

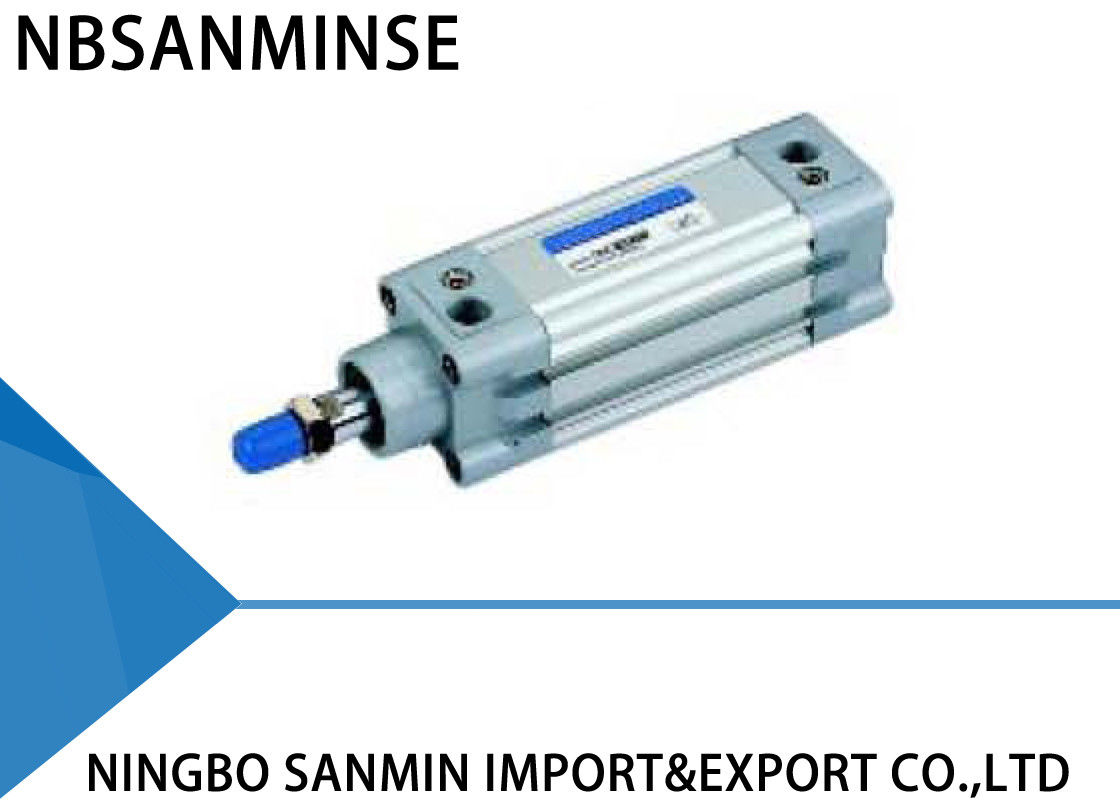

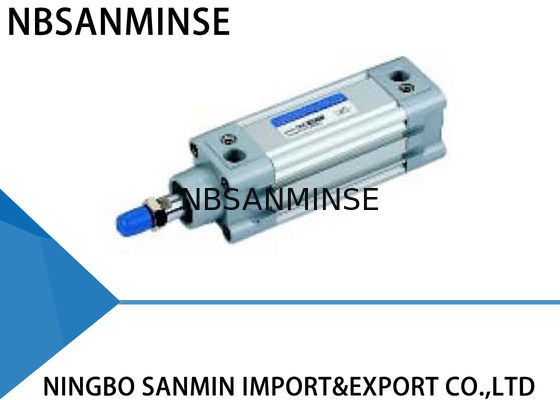

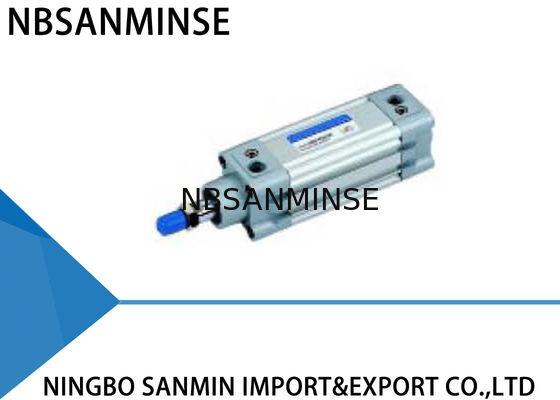

DNC VDMA / ISO6431 Cylinder Double Acting Cylinder Standard Cylinder Sanmin





Characteristic :



Front and rear caps are finished by aluminum alloy die – casting , CNC mechanically processed with high precision .

Aluminum tube is imported , stainless forever with friction & corrosion resistance .

Adopt imported none lubrication , long time service and no need lubrication maintenance .

Unique cushion technique makes smooth action

May add the sensor equipment to easily control

In terms of DNC series , pull – rod is hidden inside .





How to order :



Series :

DNC Standard Cylinder

DNCD Double Axial Cylinder



Bore :

φ32 φ40 φ50 φ63 φ80 φ100 φ125



Specification :



Type 32 40 50 63 80 100 125
Motion Double Acrting
Series DNC , DNCD
Fluid Air
Operating Pressure Range(Mpa) 0.1 ~ 1
Operating Speed (mm/sec) 50 ~ 500
Ambient Temperature (℃) -10 ~ 70
Cushion Adjustable Cushion At Both Ends
Port Size (G) 1/8" 1/4" 3/8" 1/2"





Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .

3: Reliable quality assured and active after-sell service
4: One year quality guarantee
5: High quality with competitive price .
6: Sample order & small quantity order is acceptable .



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.



DNC VDMA / ISO6431 Pneumatic Air Cylinder Double Acting Cylinder Standard 0DNC VDMA / ISO6431 Pneumatic Air Cylinder Double Acting Cylinder Standard 1
