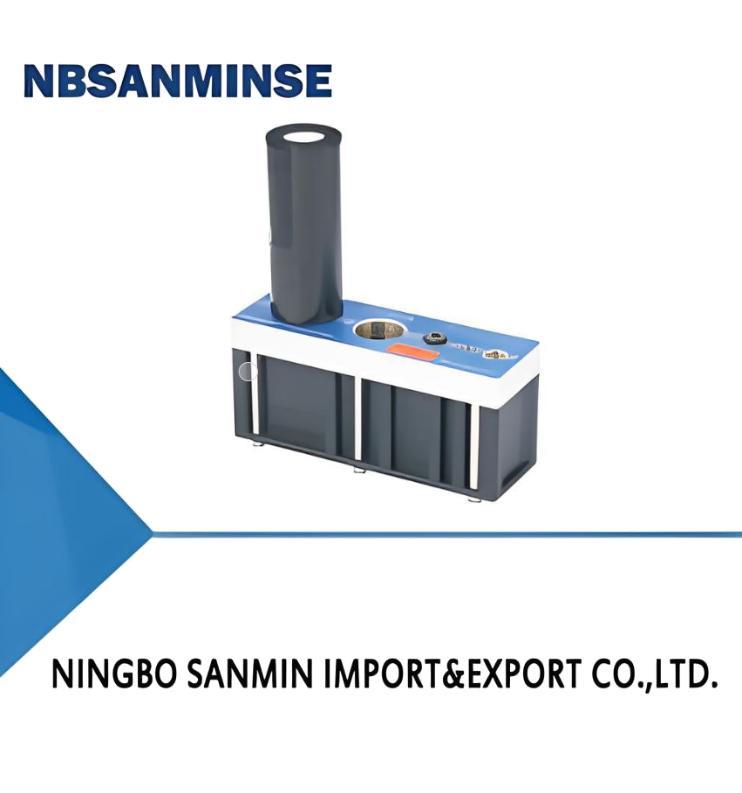

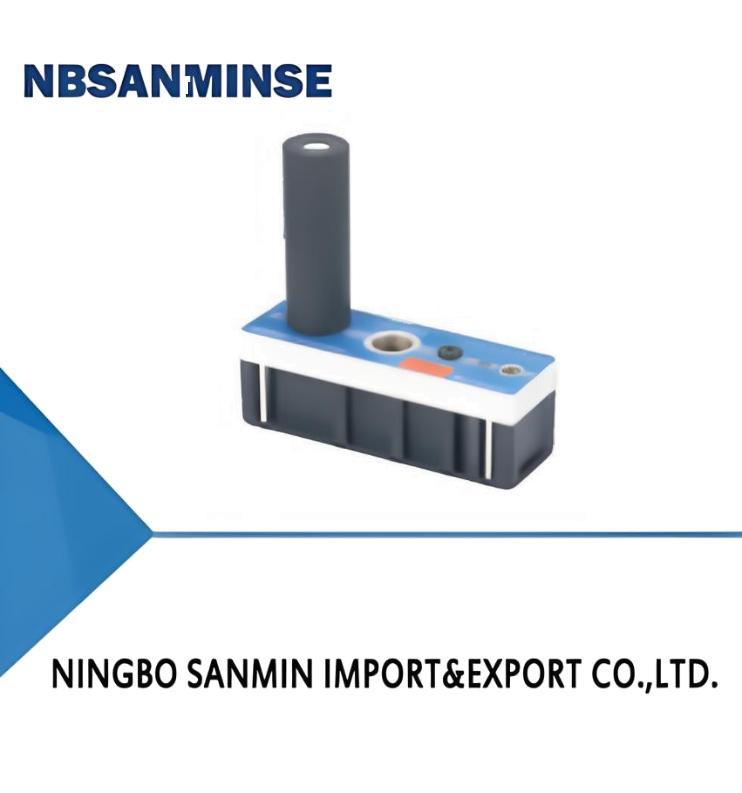

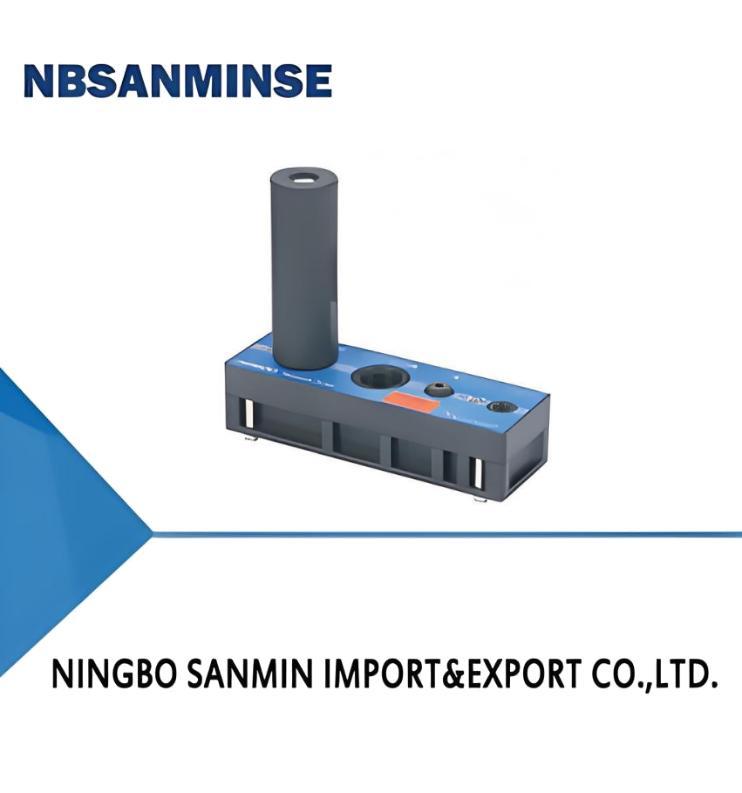

AM/AL/AH Series Multistage Vacuum Generator

Contact Now

AM/AL/AH Series Multistage Vacuum Generator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	AM25L

Detail Information
Rated Air Supplypressure Bar:	6.0	Max. Vacuumlevel -kPa:	81
Max. Vacuumflow NL/min:	360	Air Consumption NL/min:	105
Noise Level DB(A):	81

Product Description

Features

◇ Energy-efficient multistage nozzle design

◇ It has a very strong suction capacity

◇ A variety of specifications of air supply port and vacuum port

◇ Energy-saving system(ES) is optional

Advantages

◇ Quick evacuation in low vacuum level range,reduce cost and shorten

working cycle

◇ It can produce large vacuum flow, handle all porous workpieces fast

and safely

◇ Different thread specifications can be used

◇ Save compressed air consumption when handling airtight workpieces

Applications

◇ The multistage vacuum generator is suitable for handling cartons,

packaging materials and porous materials

◇ Usedfor workingconditions requiringlarge vacuum flow,fast evacuation

and less air consumption

Structure

◇ (1) The main body

◇ (2) Vacuum detecting port

◇ (3) Silencer

◇ (4) Air supply port

◇ (5) Mounting bracket

◇ (6) ES Energy-saving system

AM 25L -AD -N-A -ES
① ② ③ ④ ⑤ ⑥
①Series		②Specification		③Connectionplate		④5ealing	⑤Non-return valve			⑥Control device
AM-Universaltype (-92kPa)		25L 50L 75L 100L 125L 150L		D B		N-NBR E-EPDM	Nil-Default,without non-returnvalve A-With non-returnvave			Nil-Default,without contoldevice

AL-Large wacuum flowtype (-81kPa)		25 50 75		AD		F-Fuoine rubber				B-Energy-savingsystem
		100 125 150		E						only for AM-25L/50L
AH-High vacuumlevel type (-100.8kPa)		40 120		(Refe to table1)						AL-25/50
										AH-40
Connection plate table1
Connection plate	Air supply port(		')Vacuum port(		)Exhaust port(		Connection plate material	Applicable vacuum gene rator
D	NPSF1/8		G3/4		G3/4		PPS	AM25-100,AL25-100,AH40-120
B	NPSF1/8		NPT3/4		NPT3/4		PPS
AD	G1/4		G3/4		G3/4		Aluminum alloy
E	NPT1/4		NPT3/4		NPT3/4		Aluminum alloy
D	G1/4		G1"		G1"		PPS	AM125-150,AL125-150
B	NPT1/4		NPT1"		NPT1"		PPS
AD	G1/4		G1"		G1"		Aluminum alloy
E	NPT1/4		NPT1"		NPT1"		Aluminum alloy
Selection -AM series
Model/ Specification	25L		50L		75L		100L		125L		150L
AM□-D-N	AM25L-D-N		AM50L-D-N		AM75L-D-N		AM100L-D-N		AM125L-D-N		AM150L-D-N
AM□-D-N-A	AM25L-D-N-A		AM50L-D-N-A		AM75L-D-N-A		AM100L-D-N-A		AM125L-D-N-A		AM150L-D-N-A
AM□-D-N-A-ES	AM25L-D-N-A-ES		AM50L-D-N-A-ES		-		-		--		-
AM□-B-N	AM25L-B-N		AM50L-B-N		AM75L-B-N		AM100L-B-N		AM125L-B-N		AM150L-B-N
AM□-B-N-A	AM25L-B-N-A		AM50L-B-N-A		AM75L-B-N-A		AM100L-B-N-A		AM125L-B-N-A		AM150L-B-N-A
AM□-AD-N	AM25L-AD-N		AM50L-AD-N		AM75L-AD-N		AM100L-AD-N		AM125L-AD-N		AM150L-AD-N
AM□-AD-N-A	AM25L-AD-N-A		AM50L-AD-N-A		AM75L-AD-N-A		AM100L-AD-N-A		AM125L-AD-N-A		AM150L-AD-N-A
AM□-AD-N-A-E5	AM25L-AD-N-A-ES		AM50L-AD-N-A-ES		-		-		-		-
AM□-E-N	AM25L-E-N		AM50L-E-N		AM75L-E-N		AM100L-E-N		AM125L-E-N		AM150L-E-N
AM□-E-N-A	AM25L-E-N-A		AM50L-E-N-A		AM75L-E-N-A		AM100L-E-N-A		AM125L-E-N-A		AM150L-E-N-A

Selection-AL series

Model/
Specification

100

125

150

AL□-D-N

AL25-D-N

AL50-D-N

AL75-D-N

AL100-D-N

AL125-D-N

AL150-D-N

AL□-D-N-A

AL25-D-N-A

AL50-D-N-A

AL75-D-N-A

AL100-D-N-A

AL125-D-N-A

AL150-D-N-A

AL□-D-N-A-ES

AL25-D-N-A-ES

AL50-D-N-A-ES

AL□-B-N

AL25-B-N

AL50-B-N

AL75-B-N

AL100-B-N

AL125-B-N

AL150-B-N

AL□-B-N-A

AL25-B-N-A

AL50-B-N-A

AL75-B-N-A

AL100-B-N-A

AL125-B-N-A

AL150-B-N-A

AL□-AD-N

AL25-AD-N

AL50-AD-N

AL75-AD-N

AL100-AD-N

AL125-AD-N

AL150-AD-N

AL□-AD-N-A

AL25-AD-N-A

AL50-AD-N-A

AL75-AD-N-A

AL100-AD-N-A

AL125-AD-N-A

AL150-AD-N-A

AL□-AD-N-A-ES

AL25-AD-N-A-ES

AL50-AD-N-A-ES

AL□-E-N

AL25-E-N

AL50-E-N

AL75-E-N

AL100-E-N

AL125-E-N

AL150-E-N

AL□-E-N-A

AL25-E-N-A

AL50-E-N-A

AL75-E-N-A

AL100-E-N-A

AL125-E-N-A

AL150-E-N-A

Selection -AH series

Model/
Specification

120

AHO-D-N

AH40-D-N

AH120-D-N

AHO-D-N-A

AH40-D-N-A

AH120-D-N-A

AH□-D-N-A-ES

AH40-D-N-A-ES

AH□-B-N

AH40-B-N

AH120-B-N

AH□-B-N-A

AH40-B-N-A

AH120-B-N-A

AH□-AD-N

AH40-AD-N

AH120-AD-N

AH□-AD-N-A

AH40-AD-N-A

AH120-AD-N-A

AH□-AD-N-A-ES

AH40-AD-N-A-ES

AH□-E-N

AH40-E-N

AH120-E-N

AHO-E-N-A

AH40-E-N-A

AH120-E-N-A

Technical parameters

Model

Rated air
supply presure
bar

Max.
vacuumlevel
-kRa

Max
vacuum flow
NL/min

Air
consumption
NL/min

Noise
level
dB(A)

Working
tempeature
℃

Weight
g

Recom
(Hose outer dia.
Airsupply port

mended hose dia.mm
(Wired hose innerdia.)
Vacuum port

AL25

6.0

360

105

-10~80

675

φ8

φ19

AL50

6.0

640

215

-10~80

675

φ10

φ19

AL75

6.0

850

320

-10~80

837

φ10

φ25

AL100

6.0

990

390

-10~80

837

φ10

φ25

AL125

6.0

1,170

480

-10~80

1,075

φ12

φ32

AL150

6.0

1,230

620

-10~80

1,075

φ12

φ32

AH40

6.0

99.8

150

155

-10~80

675

φ10

φ19

AH120

6.0

100.8

530

440

-10~80

837

φ12

φ19

Technical parameters
Model	Ratedair supplypressure bar		Max. vacuum level -kPa		Max. vacuum flow NL/min		Air consumption NL/min		Noise level dB(A)	Working temperature ℃		Weight g		Recom (Hoe auterdia. Airsupplyport			mendedhoseda.mm (Mredhoseinner dia.) Vacuumport
AM25L	3.4		92		360		116		80	-10~80		675		φ8			φ19
AM50L	3.4		92		600		230		81	-10~80		675		φ8			φ19
AM75L	3.4		92		760		365		81	-10~80		837		φ10			φ25
AM100L	3.4		92		850		445		81	-10~80		837		φ10			φ25
AM125L	3.4		92		1,150		545		82	-10~80		1,075		φ12			φ32
AM150L	3.4		92		1,200		655		82	-10~80		1,075		φ12			φ32
AM25L	6.0		89		420		185		80	-10~80		675		φ8			φ19
AM50L	6.0		89		700		370		81	-10~80		675		φ8			φ19
AM75L	6.0		89		950		610		81	-10~80		837		φ10			φ25
AM100L	6.0		89		1,010		720		81	-10~80		837		φ10			φ25
AM125L	6.0		89		1,400		780		82	-10~80		1,075		φ12			φ32
AM150L	6.0		89		1,500		810		82	-10~80		1,075		φ12			φ32
Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min		0		10	20	30	40	50	60		70		80	90	Max. vacuum level -kPa
AM25L	3.4	116		360		180	115	80	43	30	22.5		15.5		7.5	21.2	92
AM50L	3.4	230		600		320	250	135	75	60	46		30		13	1.5	92
AM75L	3.4	365		760		445	340	175	110	85	70		43		20	1.8	92
AM100L	3.4	445		850		550	430	280	145	115	85		60		28	2.2	92
AM125L	3.4	545		1,150		760	530	350	180	148	115		78		34.5	3.5	92
AM150L	3.4	655		1,200		830	550	360	215	170	130		90		36	5	92
AM25L	6.0	185		420		240	125	100	82	65	38		12.5		3.5	-	89
AM50L	6.0	370		700		510	290	195	160	115	70		22		8	-	89
AM75L	6.0	610		950		710	380	285	230	170	100		32		11	-	89
AM100L	6.0	720		1,010		800	460	385	310	215	125		42		15.5	-	89
AM125L	6.0	780		1,400		1,120	560	490	355	260	150		50		25	-	89
AM150L	6.0	810		1,500		1,110	630	560	385	315	210		65		26	-	89

Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Airsupply pressure bar	Air consumption NL/min	10	20	30	40	50	60	70	80	90	Max. vacuum level -kPa
AM25L	3.4	116	0.022	0.060	0.110	0.210	0.400	0.650	0.950	1.600	4.000	92
AM50L	3.4	230	0.014	0.031	0.060	0.100	0.200	0.340	0.500	0.800	2.500	92
AM75L	3.4	365	0.012	0.029	0.058	0.095	0.180	0.310	0.460	0.890	1.500	92
AM100L	3.4	445	0.010	0.025	0.043	0.075	0.110	0.190	0.270	0.450	1.200	92
AM125L	3.4	545	0.006	0.015	0.029	0.052	0.085	0.145	0.202	0.330	1.00	92
AM150L	3.4	655	0.005	0.013	0.027	0.045	0.070	0.105	0.230	0.460	0.900	92
AM25L	6.0	185	0.018	0.050	0.080	0.018	0.250	0.400	0.620	1.550	-	89
AM50L	6.0	370	0.010	0.022	0.048	0.080	0.110	0.200	0.350	0.780	-	89
AM75L	6.0	610	0.009	0.019	0.045	0.075	0.130	0.180	0.310	0.700	-	89
AM100L	6.0	720	0.007	0.018	0.038	0.055	0.080	0.120	0.190	0.470	-	89
AM125L	6.0	780	0.005	0.013	0.026	0.045	0.062	0.115	0.194	0.560	-	89
AM150L	6.0	810	0.003	0.009	0.014	0.03	0.060	0.095	0.200	0.800	-	89

Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model	Airsupply pressure bar	Air consumption NL/min	0	10	20	30	40	50	60	70	Max. vacuumlevel -kPa
AL25	6.0	105	360	196	135	85	45	36	27	17	81
AL50	6.0	215	640	320	205	145	95	65	45	25	81
AL75	6.0	320	850	430	320	190	130	105	65	40	81
AL100	6.0	390	990	580	460	300	185	130	95	52	81
AL125	6.0	480	1,170	720	541	350	200	150	125	65	81
AL150	6.0	620	1,230	760	560	410	210	160	148	85	81

Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min	10	20	30	40	50	60	70	Max. vacuum level -kPa
AL25	6.0	105	0.030	0.060	0.100	0.200	0.390	0.580	0.870	81
AL50	6.0	215	0.018	0.039	0.066	0.120	0.200	0.310	0.510	81
AL75	6.0	320	0.010	0.020	0.040	0.080	0.120	0.200	0.310	81
AL100	6.0	390	0.008	0.017	0.032	0.050	0.090	0.130	0.220	81
AL125	6.0	480	0.006	0.016	0.026	0.045	0.078	0.110	0.180	81
AL150	6.0	620	0.005	0.014	0.024	0.040	0.071	0.100	0.160	81

Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min	0	10	20	30		40		50	60		70	80	90	99	Max. vacuum level -kPa
AH40	6.0	155	150	145	105	52.5		27.5		20.5	15.0		8.5	5.5	3.0	0.2	99.8
AH120	6.0	440	530	420	265	141.0		85.0		65.0	45.0		33.0	21.5	6.0	0.5	100.8
Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min	10	20	30		40		50	60		70		80	90	99	Max. vacuum level -kPa
AH40	6.0	155	0.04	0.08	0.18		0.32 0.14		0.64	1.30		1.80		2.60	3.90	9.8	99.8
AH120	6.0	440	0.02	0.04	0.08				0.25	0.38		0.66		1.08	3.60	8.5	100.8

◇ Note:The mounting accessory kit includes 2 L-type brackets and 4 screws for the connection plate B and E
