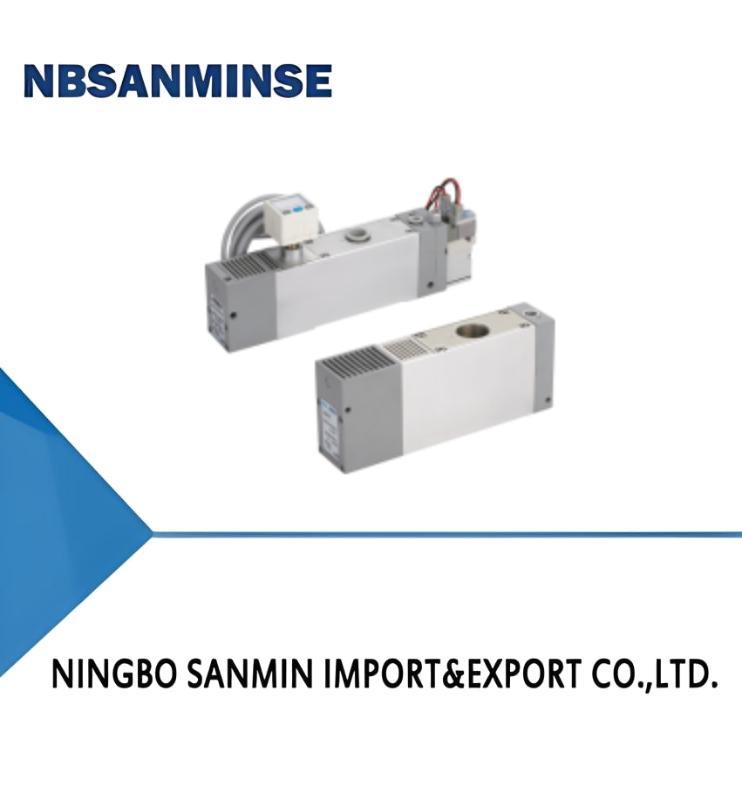

AZL Series Multistage Vacuum Generator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	AZL112

Detail Information
Rated Air Supply Pressure Bar:	4.0	Max. Vacuum Level -kPa:	84
Max. Vacuum Flow NL/min:	100	Air Consumption NL/min:	63
Noise Level DB(A):	70

Product Description

Features

◇ Multi-level and energy-efficient design

◇ Optional solenoid valve and pressure switch

◇ Built-in vacuum filter and silencer

◇ Vertical and lateral mounting holes for option

Advantages

◇ Vacuum flow can be increased, save air consumption and shorten

working cycle

◇ Control function is optional, no need of separate external connection

to save space and reduce cost

◇ Minimize noise, the filter element is replaceable

◇ A variety of installation ways are available

Applications

◇ Suitable for handling of cartons,metal sheet and plastics

◇ Suitable for occasions which require large vacuum flow, fast

evacuation and low air consumption

Structure

◇ (1) Pressure switch

◇ (2) Vertical mounting hole

◇ (3) Lateral mounting hole

◇ (4) Exhaust port

◇ (5) Vacuum port

◇ (6) Air supply port

◇ (7) Vacuum release valve

◇ (8) Vacuum supply valve

How to orde

AZL 112-A -DCN
① ② ③ ④
①Series	②Nozzle diameter			③Control valve							④Digital vacuum pressure switch
AZL	112-1×φ1.2mm			Nil-Without vacuum supply valve							Nil -Default,without external vacuum port
	212-2×φ1.2mm			and vacuum release valve							NP -With vaauumportRc1/8,without pressureswitch
				A-With vacuum supply valve							DCN-Compound pressure switch (-100.0~100.0kPa),2NPN+V(1-5V)
				and vacuum releasevalve
											DCP-Compound pressure switch (-100.0~100.0kPa),2PNP+V(1-5V)

Selection-AZL112 Series Selection-AZL212 Series
Model/Control valve Nil-Without control valve			A-With vacuum supply valve vacuum release vabve						Model/Control valve A-with vacuum supply ualve
									Nil-Without control valve						Hvacuum release valve
AZL112			AZL112-A						AZL212						-
AZL112-NP			AZL112-A-NP						AZL212-NP						-
AZL112-DCN			AZL112-A-DCN						AZL212-DCN						-
AZL112-DCP			AZL112-A-DCP						AZL212-DCP						-
Technical parameters
Model	Rated air supply pressure bar		Max. vacuum level -kPa		Max. vacuum flow NL/min		Air consumption NL/min			Noise level dB(A)			Working temperature ℃			Recommended h Air supplyport (P)			ose dia. (mm) Vacuum port (V)
AZL112	4.0		84		100		63			70			5~50			φ6			φ12
AZL212	4.0		84		200		126			77			5~50			φB			φ12
○Note:Maxopeating pressure 7bat recommended an suply pressure range2-5bar.Noise levelis measured by the wacum generator wath bum-in sience.
Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model	Air supply pressure bar	Air consumption NL/min		0		10	20	30		40		50		60		70	80	Max. vacuum level -kPa
AZL112	4.0	63		100.0		65.0	26.0	20.0		18.5		13.0		8.0		5.0	2.8	84
AZL212	4.0	126		200.0		150.0	52.0	40.0		30.0		25.0		15.0		8.0	3.0	84
Evacuation time(s/L)to reach different vacuum levels(-kPa)
Model	Airsupply pressure bar	Air consumption NL/min		10		20	30		40		50		60		70		80	Max. vacuum level -kPa
AZL112	4.0	63		0.05		0.17	0.40		0.67		1.07		1.63		2.46		3.9	84
AZL212	4.0	126		0.02		0.08	0.25		0.42		0.65		0.98		1.52		2.46	84
