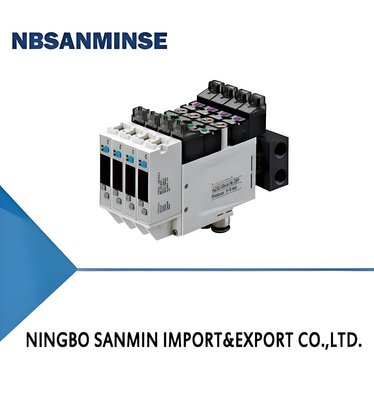

AZQ Series Mini Integrated Vacuum Generator
AZQ Series Mini Integrated Vacuum Generator
Contact Now

AZQ Series Mini Integrated Vacuum Generator

Minimum Order Quantity : 100PCS Packaging Details : Plastic bag
Delivery Time : 5-30days Supply Ability : 10000PCS
Place of Origin: CHINA Brand Name: NBSANMINSE
Model Number: AZQ-X

Detail Information
Specifications: X - High Vacuum Level Type Air Supply Pressure Range Bar: 3.0~6.0
Max. Vacuum Level -kPa: 91 Max. Vacuum Flow NL/min: 12
Air Consumption NL/min: 8.2

Product Description

Features
◇ Multi-nozzle design
◇ Small size and light weight. The volume is 43.5cm³
◇ Centralized air supply
◇ No noise (vacuum pump type)
◇ With digital vacuum pressure switch
Advantages
◇ The device is compact and can be installed directly in the handling system
◇ Simple installation, can be installed directly on the distribution box
◇ Vacuum pump type is suitable for centralized vacuum station system
Applications
◇ Vacuum producing and monitoring in automation systems
◇ For robot handling applications and linear axes
◇ Pick and place applications with very short time
◇ Used for systems that require high dynamic handling of workpieces
and with limited space
◇ Usually used for handling small parts in fully automated systems
AZQ Series Mini Integrated Vacuum Generator 0
Without vacuum source type
(Vacuum pump type)
◇(1)Vacuum release valve
◇(2)Vacuum release adjusting valve
◇(3)Vacuum supply valve
◇(4)Vacuum pressure switch
◇(5)Air supply port
◇(6)Vacuum pump connector
◇(7)Vacuum port
AZQ Series Mini Integrated Vacuum Generator 1
With vacuum source type
(Vacuum generator type)
◇(1)Vacuum release valve
◇(2)Vacuum release adjusting valve
◇(3)Vacuum supply valve
◇(4)Vacuum pressure switch
◇(5)Air supply port
◇(6)Exhaust port
◇(7)Vacuum port
AZQ Series Mini Integrated Vacuum Generator 2
How to order
AZQ - T × 8 - N - DP
①  ②  ③  ④  ⑤
①Series ②Specifications ③Stack ④Vacuum switch ⑤Air supply
AZQ X-High vacuum level type Nil-Single body N-2NPN output+1 analog output(1~5V) Nil-Individual air supply
T-Large flow type 2  P-2PNP output+1 analog output(1~5V) DP-Centralized airsupply
B-Vacuum pumptype 3



.....



10

◇Note:1. It is recommended to install an air filter with a filtration accuracy of 5um or less for positive pressure air supply of the vacuum generator
(without the need for an oil mist filter)
2. For vacuum pump type, the recommended stack quantity is 6PCs. The maximum vacuum flow rate will be a decrease if there is stack Bx7
and Bx8. Please refer to the following parameters:
31NL/min is the max.allowed passing flow of single stack of AZQ-Bx7
28NL/min is the max.allowed passing flow of single stack of AZQ-Bx8
Technical parameters
Model Air supply
pressue range
bar		 Rated
air supply pressure
bar		 Max.
vacuum  level
-kPa		 Max.
vacuum  flow
NL/min		 Air
consumption
NL/min		 Noise
dB(A)		 Weight
    g		 Recom
Air supply
portP		 mended
Vacuum
portV		 hose  dia. (mm)
Vacuum  pump
   connector
AZQ-X 3.0~6.0 5.0  91  12  8.2  64~70 75.4  φ6 φ6 -
AZQ-T 3.0~6.0 4.5  84  16  15.5  64~70 75.4  φ6 φ6 -
AZQ-B 3.0~6.0 - - 35(Note) - - 78.2  φ4 φ6 φ6
◇ Note: 35NL/min is the max.allowed passing flow of single stack of AZQ-Bx6
Vacuum flow(NL/min) at different vacuum levels(-kPa)
Model Air supply
pressure
bar		 Air
consumption
NL/min		 0  10  20     30    40  50  60  70  80  90  Max.
vacuum  level
-kPa
AZQ-X 5.0  8.2  12 9.5
 6.4
    5.6
   5.1
 4.4
 3.2
 2.1
 0.9
 - 90
AZQ-T 4.5  15.5  16 14.5 10.7 9.1
 8.0 6.7
 4.8 2.8 - - 84
Evacuation time(s/L) to reach different vacuum levels(-kPa)
Model Air  supply
pressure
bar		 Air
consumption
NL/min		 10  20  30  40  50  60  70  80  90  Max.
vacuum  level
-kPa
AZQ-X 5.0  8.2  0.49  1.37  2.90  4.70  6.98  10.03  14.90  23.20  59.52  90
AZQ-T 4.5  15.5  0.34  0.76  1.51  2.40  3.76  5.61  8.94  16.86  - 84
AZQ Series Mini Integrated Vacuum Generator 3
Technical parameters - Pressure switch
  Model

 ZPDC-□
  Pressure range -100~100kPa
  Setting pressure range -105~105kPa
  Proof pressure 500kPa
  Generalgas Air,Non-corrosive,non flammable gas
  Power supply voltage 12-24V DC±10%,RIPPLE(P-P)10%or less
  Current consumption s40mA(Without  load)
  Switchoutput Outputmode 2NPN or 2PNP open colector output+1~5V Linear analog output
Max.Loadaurrent 125mA
Max.supplyvoltage 30V DC(NPN)24V DC(PNP)
Residual voltage ≤1.5V
Response time ≤2.5ms(chattering-proof functione 25ms,100ms,
250ms,500ms,1000ms,1500ms selectable)

Output short drcuit protection Yes
  Repeatability ±0.2%F.5. ±1 digit
  Display
3½LED7segment display(Red)display(Sampling rate:5times/sec)
  Indicator accuracy ±2%F.5. ±1 digit At ambient temperature:25±3℃
  Switch ON indicator OUT1:Green/OUT2:Red
   Environmental
   resistance		 IP   Grade IP40
                        Ambient temp.range Operation:0~50℃
Withstand voltage 1000VACin 1minute (between case and lead wire)
Insulation resistance 50M0 min. (at 500V DC,between case and lead wire)
  Temperature characteristic ±2%F.5. (at temperature range of 0~50℃)
  Lead wire Oil proof PVC cable(0.15mm²)
Output circuit wiring diagrams
AZQ Series Mini Integrated Vacuum Generator 4
Centralized air supply dimensions(mm)
AZQ Series Mini Integrated Vacuum Generator 5
Dimensions(mm)
AZQ Series Mini Integrated Vacuum Generator 6
