Digital Pressure Transmitter High Stability Smart Water Pressure Transmitter SMPB8100CNF

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : 5 - 30 Work Days
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: China Brand Name: Mkfale
Model Number: SMPB8100CNF

Detail Information

Accuracy: 0.25%F S,0.5%F S(including Linearity.Hysteresis And Repeatability Measuring Range: -1 ... 0bar To -1...25bar,0... 0.1bar To 0... 600bar
Linear: Superior To 0.25%F S Response Time: ≤ 10 Ms
Power Supply: 24VDC (or 12 To 36VDC) Output: 4 To 20mA(or 0 To 10mA,1 To 5V, 0 To 5V,0 To 10V)
High Light:

pressure transmitter with display

,

high accuracy pressure transmitter

Product Description

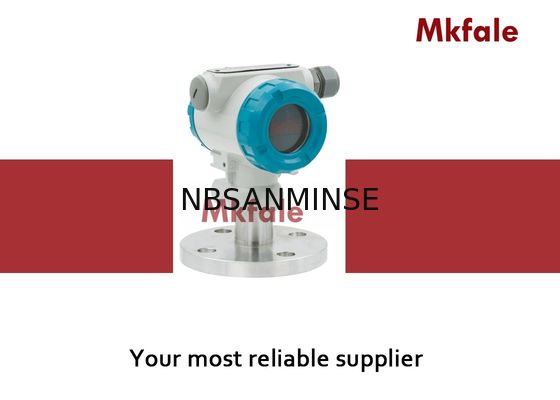

SMPB8100CNF Digital Pressure Transmitter High Stability Smart Water Pressure Transmitter Flange Type







Technical Specification Table


Type SMPB8100CNF
Accuracy 0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability)
Measuring Range -1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar
Linear Superior to 0.25%F S
1 year stability Superior to 0.25%F S
Response time ≤ 10 ms
Power supply 24VDC (or 12 to 36VDC)
Output 4 to 20mA(or 0 to 10mA,1 to 5V, 0 to 5V,0 to 10V)
Proof pressure 150%F S
Burst pressure 300%F S
Operating Temp -20 to +85℃
Compensated Temp -10 to +70℃
Storing Temp -40 to +125℃
Process connection Flange
Electric connection M20*1.5 male
Enclosure Protection IP65
Wetted parts SS304
Diaphragm material SS316L
Housing material Aluminium
Power Consume <0.5W(24VDC)





Why choose us

1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: 12-18month quality guarantee




FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .


Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.


Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .


Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
