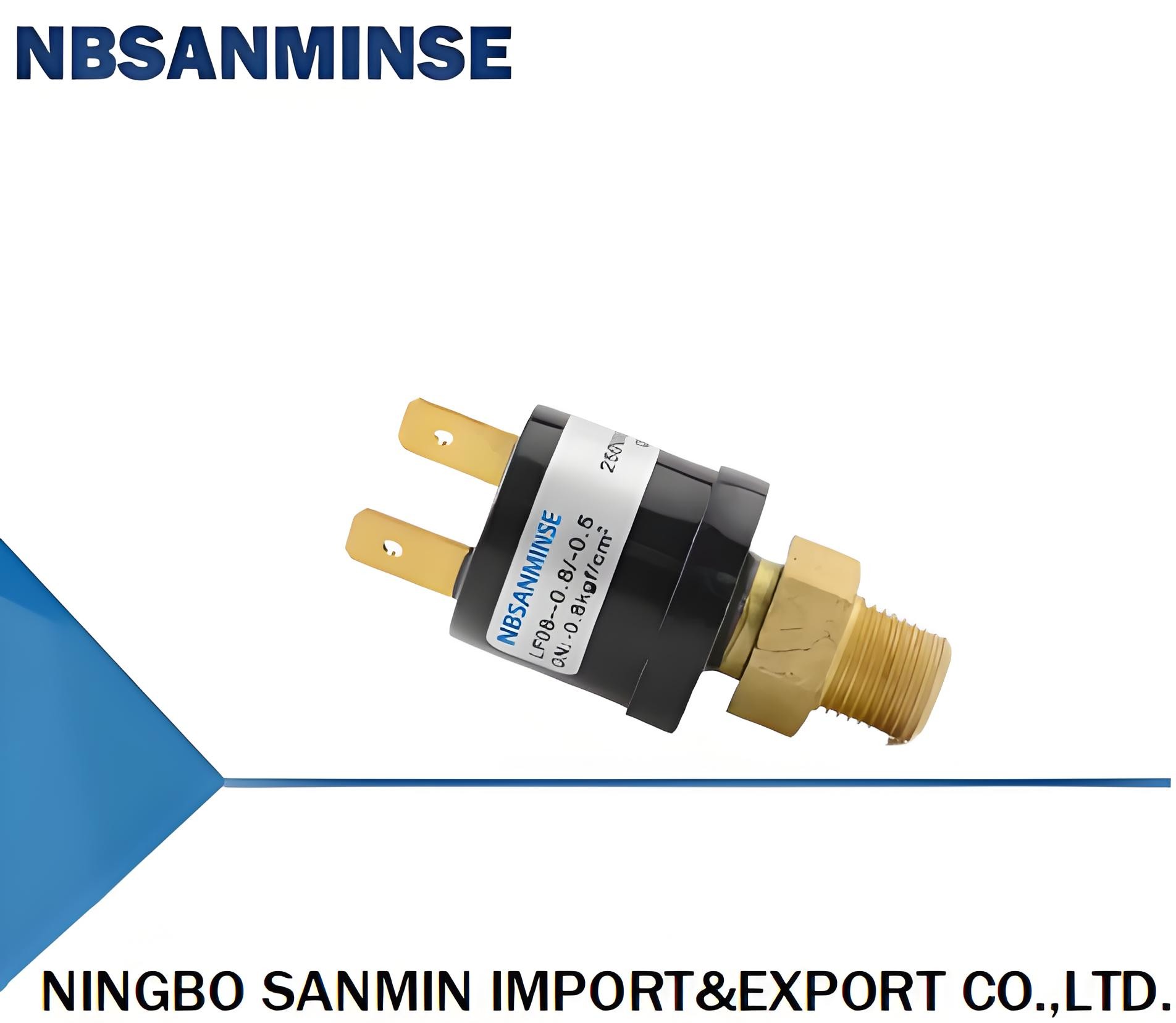

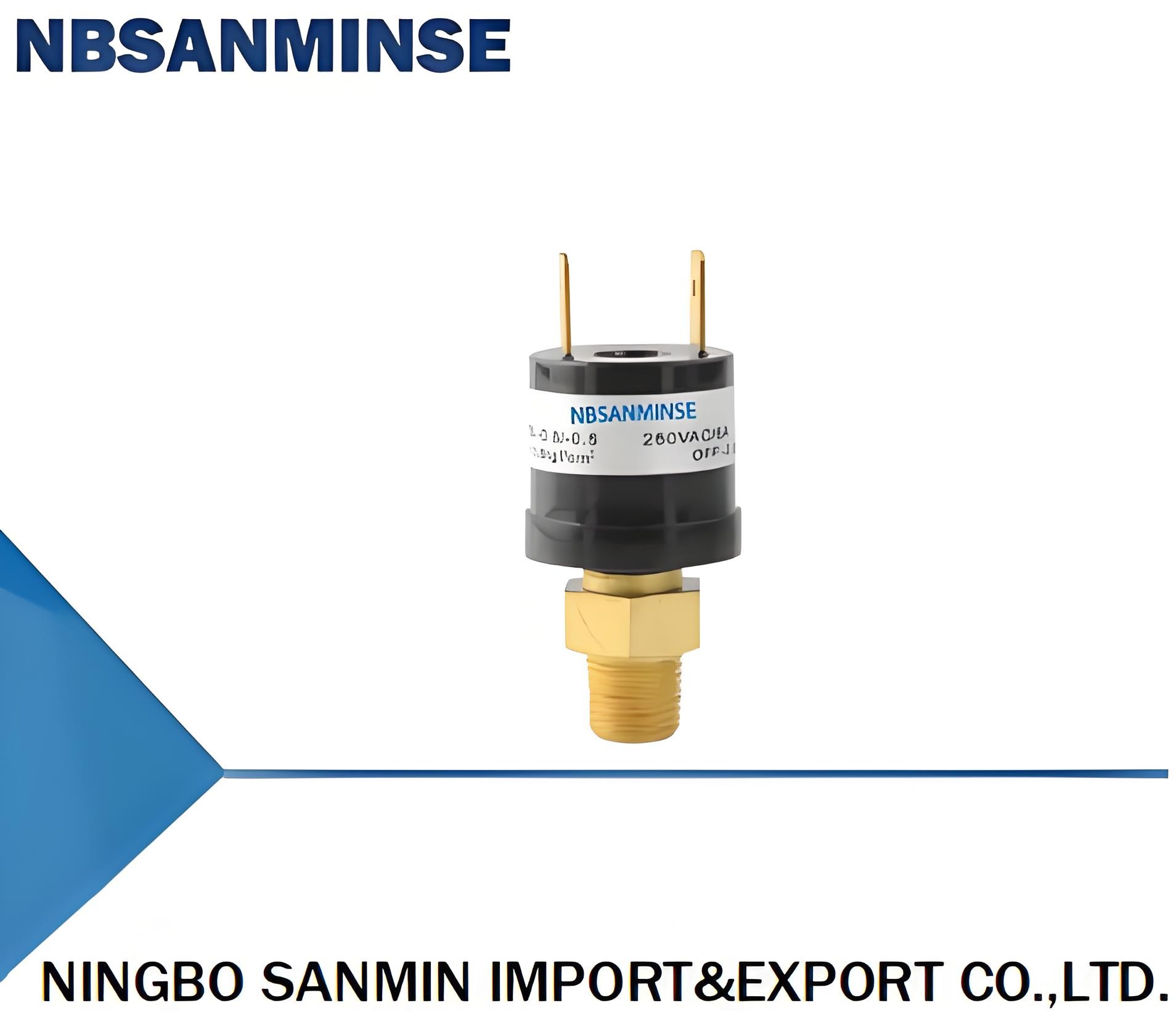

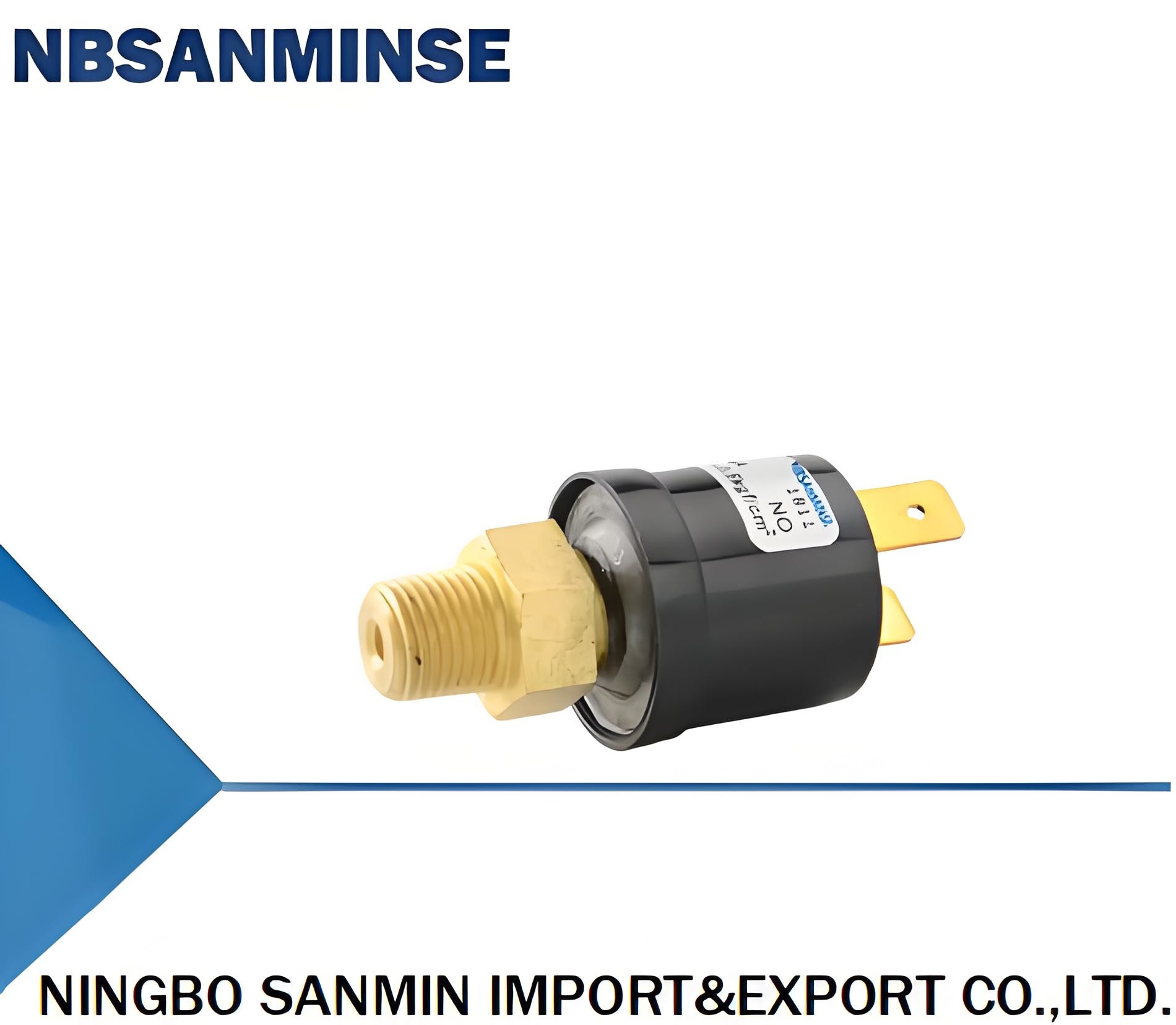

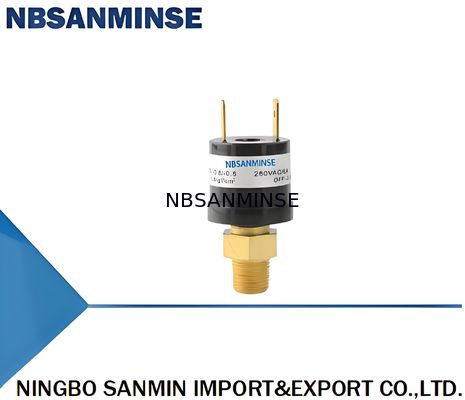

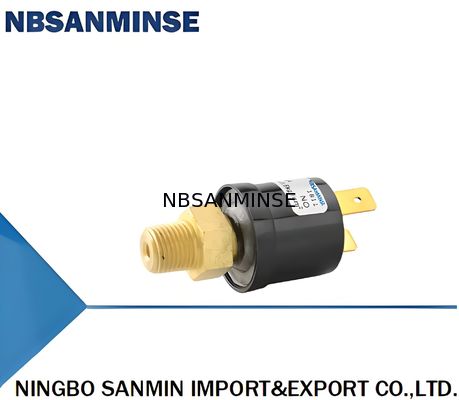

SMF08V Pressure Switch Designed Automatic Reset Small Vacuum Parts In Vacuum Environment

Large Image : SMF08V Pressure Switch Designed Automatic Reset Small Vacuum Parts In Vacuum Environment

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	SMF08V

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

SMF08V Pressure Switch Designed Automatic Reset Small Vacuum Parts In Vacuum Environment

Description

Features:	Designed Automatic Reset Switch	Model:	SMF08V
Thread:	6.35*0.8 NPT1/8 NPT1/4	Material:	Brass
Certification:	CE	Environment Temperature:	-20 ~ 65 C
Highlight:	Vacuum Environment Pressure Switch , Automatic Reset Pressure Switch , Vacuum Environment Pressure Switch

Product sellpoints

•Switch Type: Pressure Switch,Precise pressure control with a pressure switch type, ideal for vacuum tank and refrigeration applications.

•Electrical Connections: 6.35 X 0.8 NPT,Standard 6.35 X 0.8 NPT electrical connections for easy installation and compatibility with various systems.

•Environment Temperature: -20 ~ 65 C,Operates reliably in a wide temperature range from -20 to 65°C, suitable for various climates.

•410a Low Presser Switch|How Do Vacuum Pump Work|Material: Brass,Crafted from durable brass, this switch withstands the rigors of vacuum environments.

•Features: Designed Automatic Reset Switch,Automatic reset design ensures consistent performance and easy recovery from pressure fluctuations.

Ex : ON :1Bar OFF:2Bar =NC

ON :2Bar OFF:1Bar =NO

ON :-0.9Bar OFF:-0.65Bar =NO

ON :-0.65Bar OFF:-0.9Bar =NC

ON>OFF is NO , ON<OFF is NC

The images shown are not all the actual item and are for your reference only

NC = Normally Closed

NO = Normally Open

Electrical Connections : 6.35 X 0.8

NPT1-8 = NPT 1/8"

NPT1-4 = NPT 1/4"

Normally is brass material,Normal close,if special request ,please memo for us during payment

SMF08-V vacuum switch is automatic reset pressure switch designed, there is deadband between close and open pressure setpiont. It can be used for vacuum pressure controlling for vacuum tank, refrigerating equipment or room cooler units or remote outdoor condensing units for domestic cooling systems.

Typical Applications:safety controls / air conditioning / refrigeration / vacuum tank pressure control/ braking system of automobile

Seires No.	SMF08-V
Medium	Air, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluid
Pressure Set Point	-0.85 Bar to 1.5 Bar
Proof Pressure	10 Bar
Burst Pressure	100 Bar
Operating Temperature Range	-30° C to ~ 80° C
Switch Type	SPST- NC, SPST-NO
Electric Rating	120/240VAC, 3A 5~28VDC, 6A
Dielectric Strength	750 Vrms across open contacts 1550 Vrms terminals to fitting
Terminals	1/4” blade, wire lead
Life at Related Load	100,000 cycles
Connection	1/8NPT, G1/8", 1/4NPT, G1/4", 7/16-20 UNF, etc.
Options	various connector thread sizes; wire leads (potted & sealed); protective cover.
