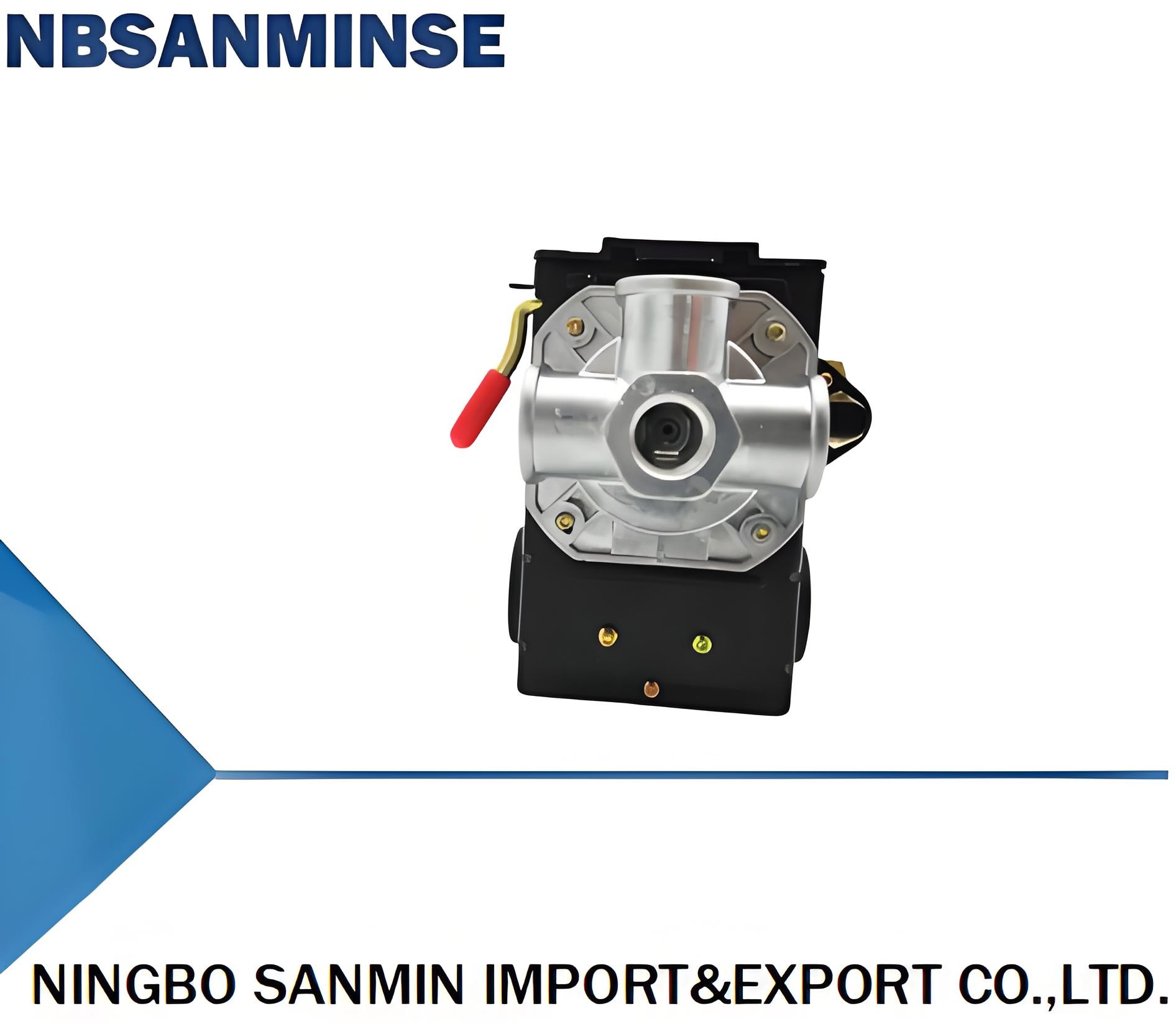

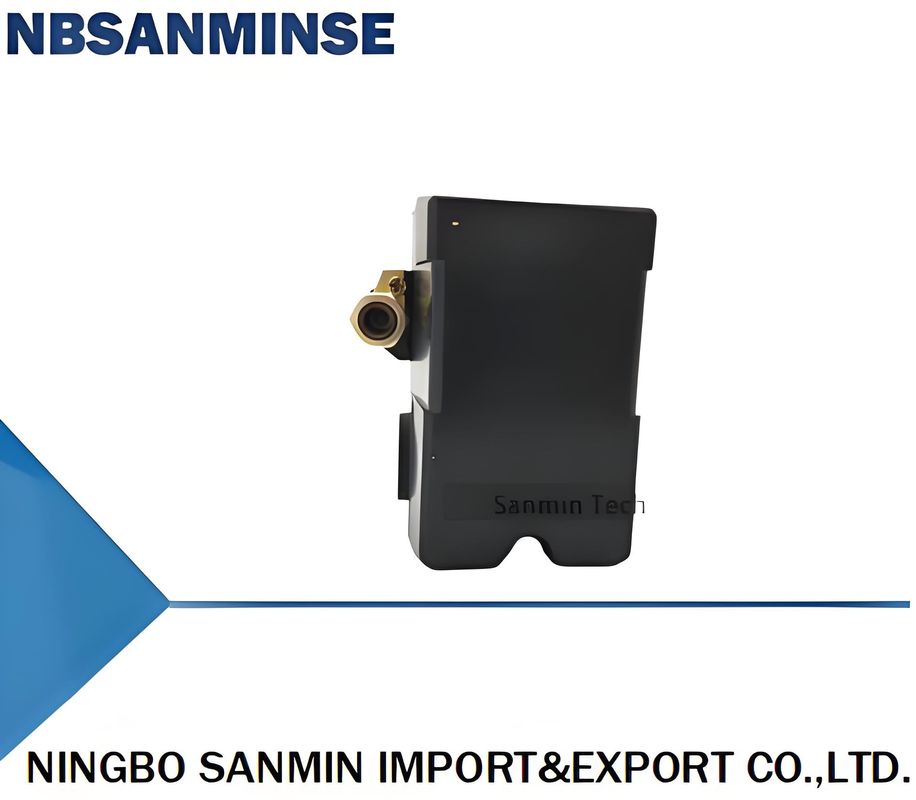

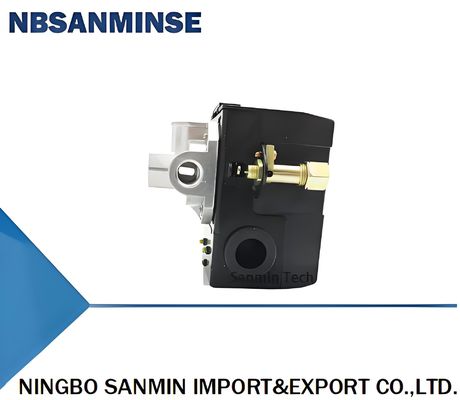

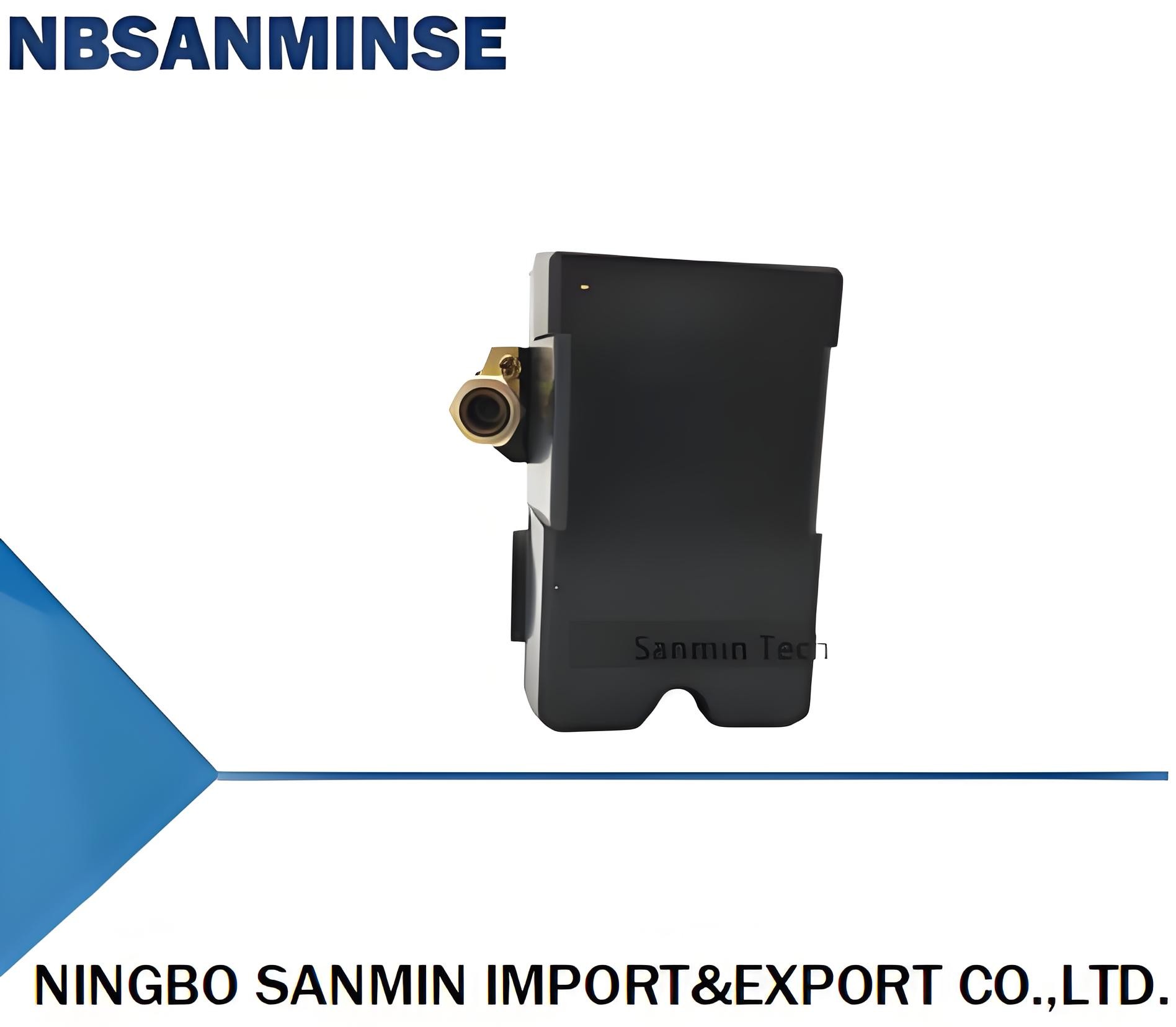

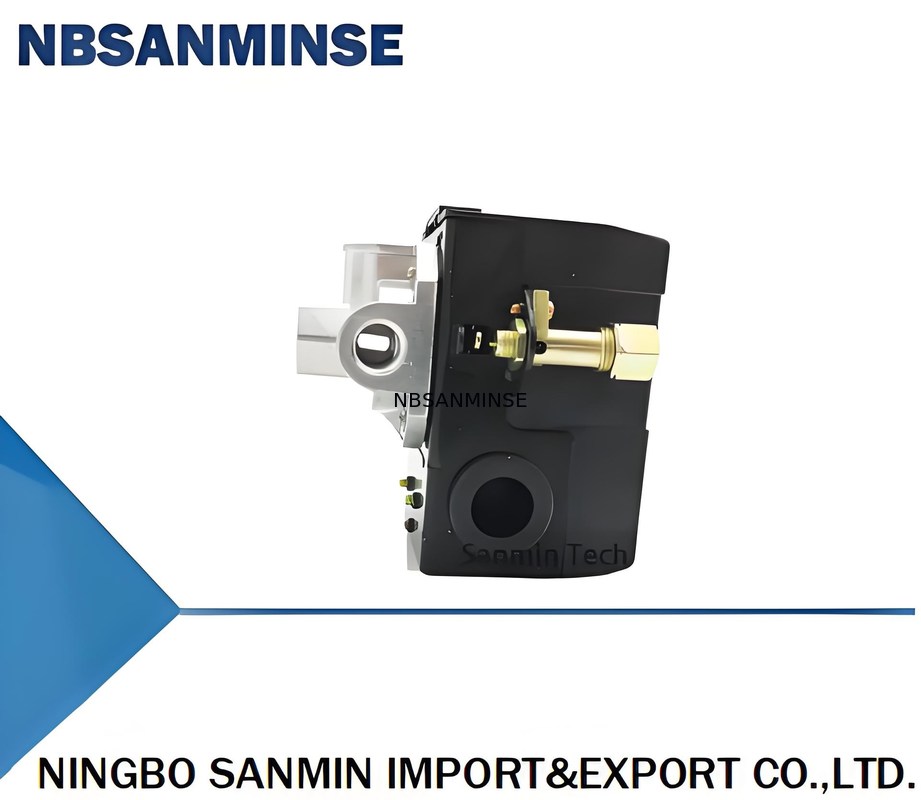

SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE

Large Image : SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	SMF 10

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	T/T,L/C
Supply Ability:	10000PCS

Contact Now

SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE

Description

Features:	Easy Mounting	Size:	K - 26A None ( 15A )
Certification:	Ce	Material:	Plastic
Model:	SMF10	Warranty:	1 Year
Highlight:	G NPT Air Pressure Switch , Easy Mounting Air Pressure Switch , SMF Air Pressure Switch

Product sellpoints

Multiple Pipe Fittings:Comes with NPT 1/4 Male or Female and G 1/4 " options for flexible installation.

Easy Mounting:Features a 4-port manifold design for effortless mounting of valves and gauges.

Dual Electrical Rating:Supports 120VAC and 240VAC, ensuring compatibility with a wide range of electrical systems.

Industrial Approvals:Meets UL, CSA, TUV CE, CCC standards for industrial safety and reliability.

Versatile Pressure Range:Available with preset ranges from 25-200 PSI to suit various air compressor needs.

Ex : ON :1Bar OFF:2Bar =NC

ON :2Bar OFF:1Bar =NO

ON :-0.9Bar OFF:-0.65Bar =NO

ON :-0.65Bar OFF:-0.9Bar =NC

ON>OFF is NO , ON<OFF is NC

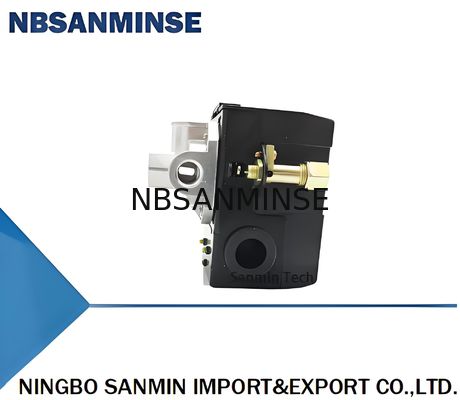

The images shown are not all the actual item and are for your reference only SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE 0

G1-4 = G 1/4 "

NPT1-4 = NPT 1/4"

Normally with short handle ,vertical design,female thread,if special request,please make a memo to us during payment.

The SMF10 pressure switches are used to regulate the tank pressure between two preset values on small (up to 175psi) electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and an auto-off disconnect lever for manual cut off the compressor. A four port manifold style is available which provides a means for easy mounting of valves and gauges.

MODEL	Min ON (Cut-In) PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	Electrical Rating		Pipe Fittings	Contact Arrangement
MODEL	Min ON (Cut-In) PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	120VAC	240VAC	Pipe Fittings	Contact Arrangement
SMF10-1H1	25	100	20-30	50-80	20A	12A	NPT 1/4 Male or Female NPT	NC
SMF10-1H2	35	150	30-40	85-115	20A	12A	1/4" Male or Female NPT	NC
SMF10-1H3	50	175	35-55	110-150	20A	12A	1/4" Male or Female NPT	NC
SMF10-4H1	25	100	20-30	50-80	20A	12A	1/4" Female NPT (4 Port)	NC
SMF10-4H2	35	150	30-40	85-115	20A	12A	1/4" Female NPT (4 Port)	NC
SMF10-4H3	50	175	35-55	110-150	20A	12A	1/4" Female NPT (4 Port)	NC

MODEL	Min ON (Cut-In) PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	Electrical Rating		Pipe Fittings	Contact Arrangement
MODEL	Min ON (Cut-In) PSI	Max Off (Cut-Out) PSI	Differential PSI	Factory Setting PSI	120VAC	240VAC	Pipe Fittings	Contact Arrangement
SMF10A-1H1	25	100	20-30	50-80	26A	26A	NPT 1/4 Male or Female NPT	NC
SMF10A-1H2	35	150	30-40	85-115	26A	26A	1/4" Male or Female NPT	NC
SMF10A-1H3	50	175	35-55	110-150	26A	26A	1/4" Male or Female NPT	NC
SMF10A-1H4	70	200	40-55	130-175	26A	26A	1/4" Male or Female NPT	NC
SMF10A-4H1	25	100	20-30	50-80	26A	26A	1/4" Female NPT (4 Port)	NC
SMF10A-4H2	35	150	30-40	85-115	26A	26A	1/4" Female NPT (4 Port)	NC
SMF10A-4H3	50	175	35-55	110-150	26A	26A	1/4" Female NPT (4 Port)	NC
SMF10A-4H4	70	200	40-55	130-175	26A	26A	1/4" Female NPT (4 Port)	NC

Approval: UL, CSA, TUV CE, CCC

G1/4 (BSP 1/4) Male or Female Pipe Fittings are available.

Conversion: 1Kgf/cm2 = 14.2PSI , 1bar = 14.5PSI

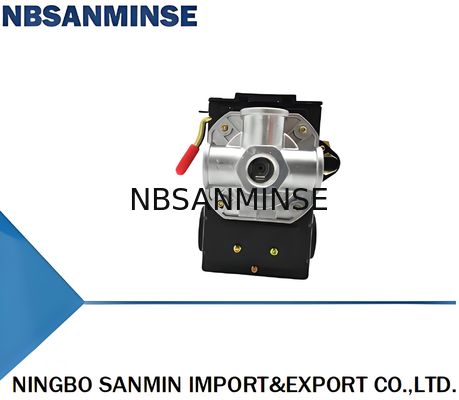

SMF 10 1/4 G NPT Air Compressor Pressure Switch For Easy Mounting Of Valve And Gauges Air Pressure Switch NBSANMINSE 7
