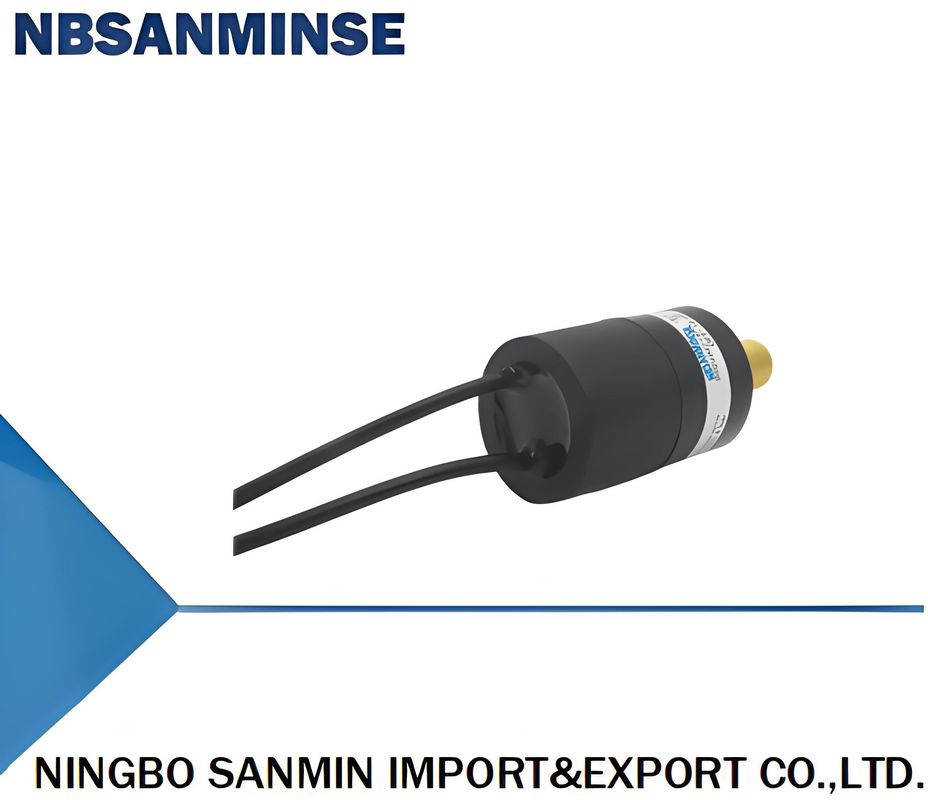

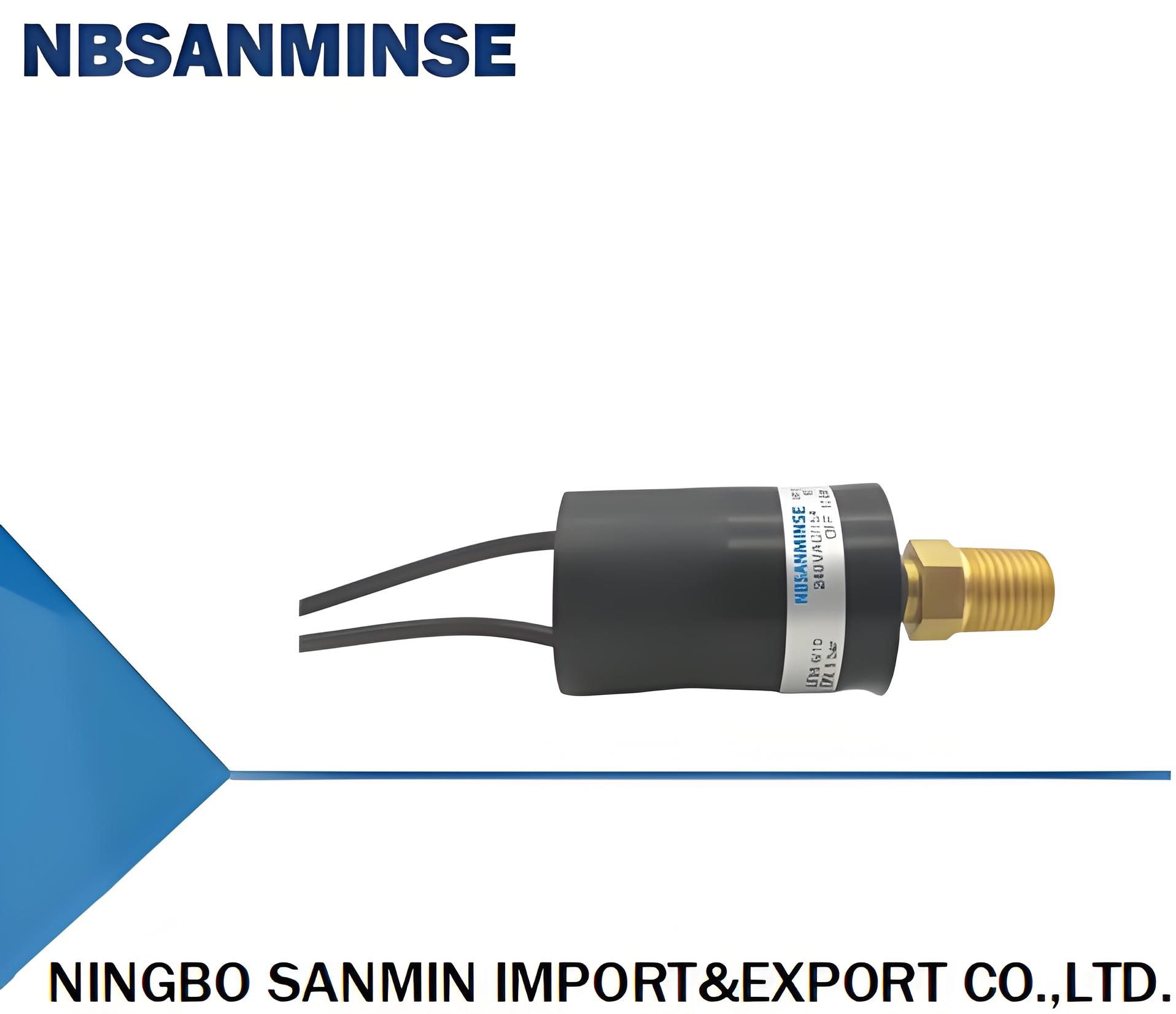

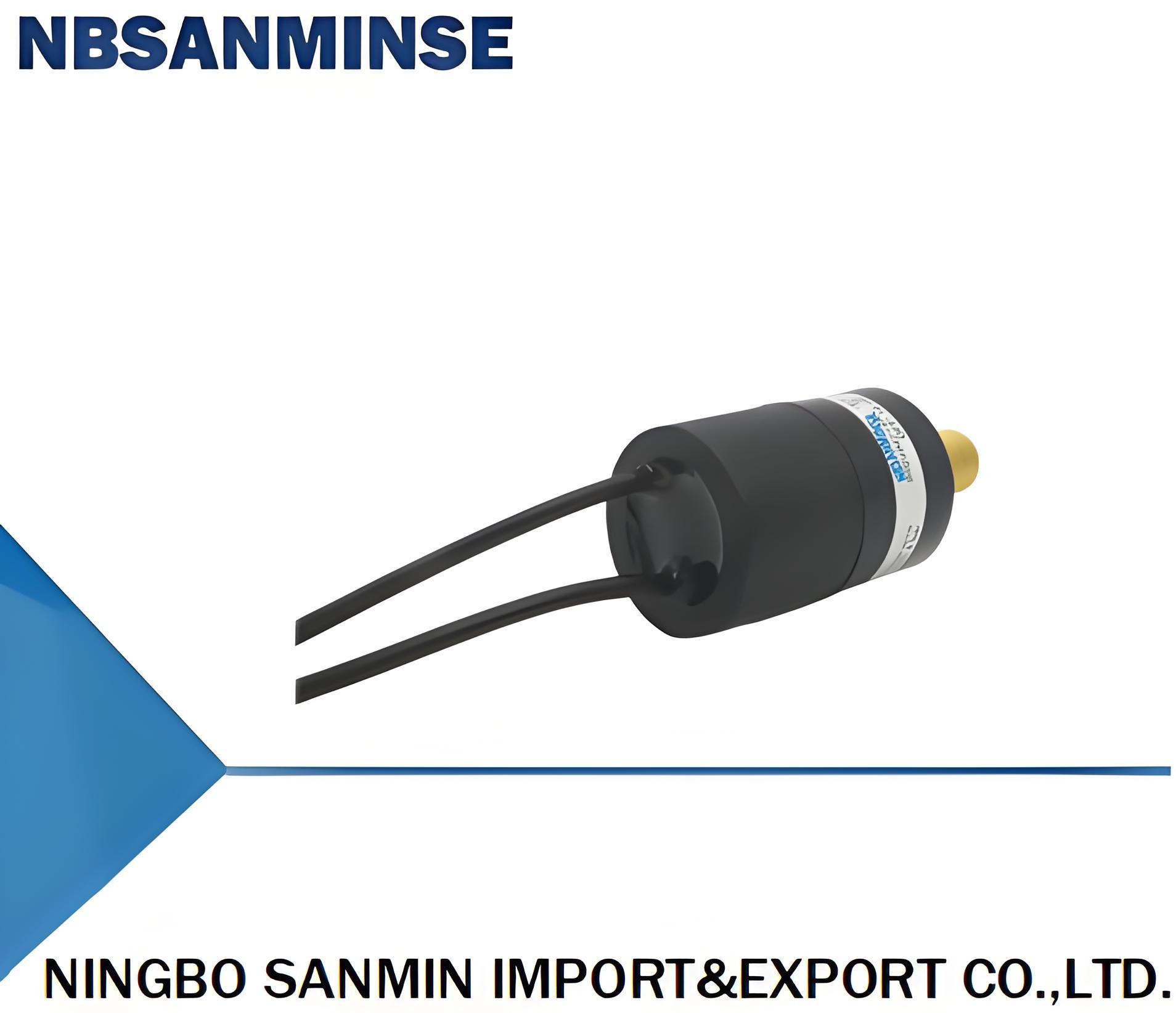

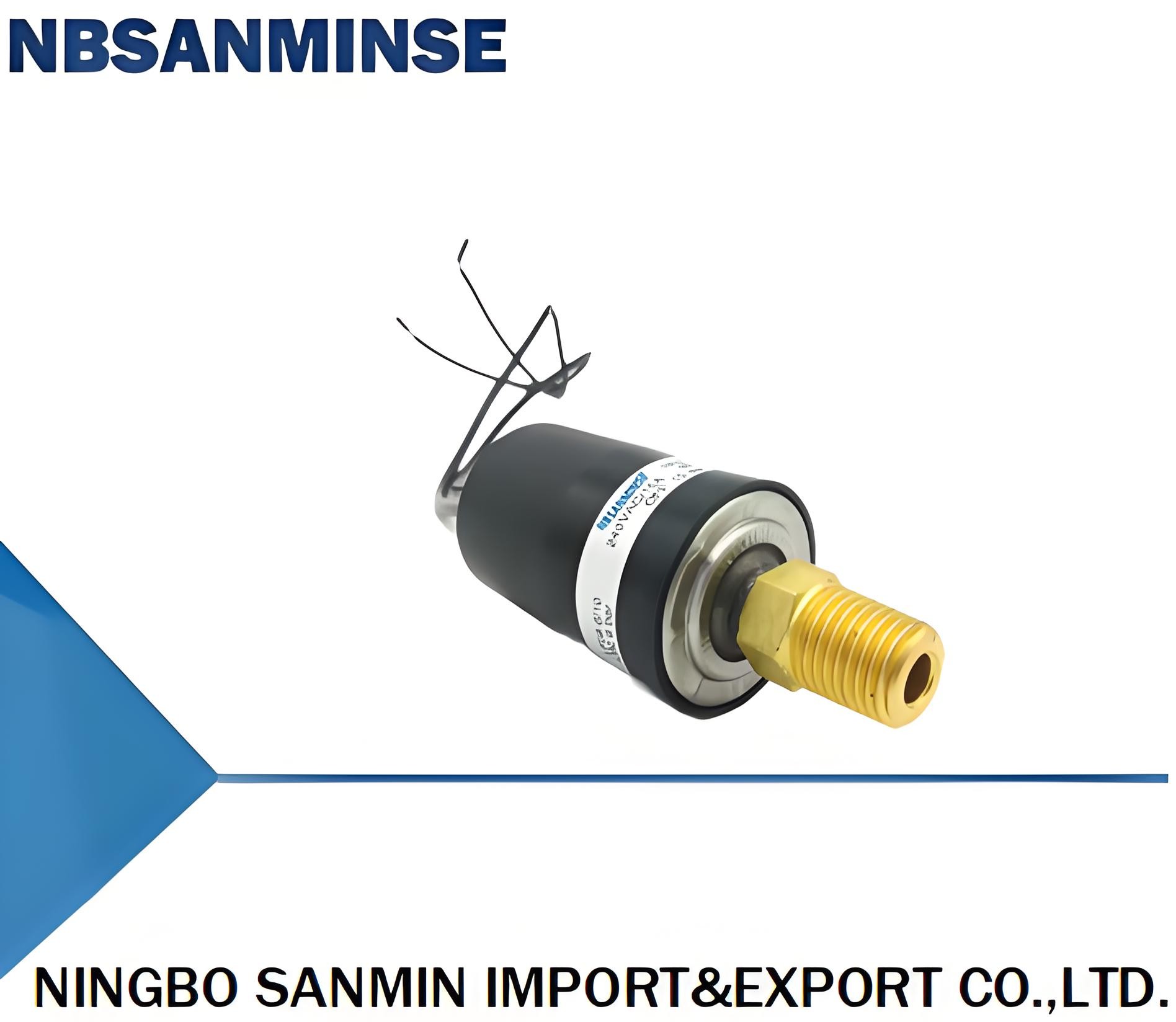

SMF08A 1/8 1/4 High Current Pressure Switch Fixed Set Point Automatic Reset Air Water Pressure Switch NBSANMINSE

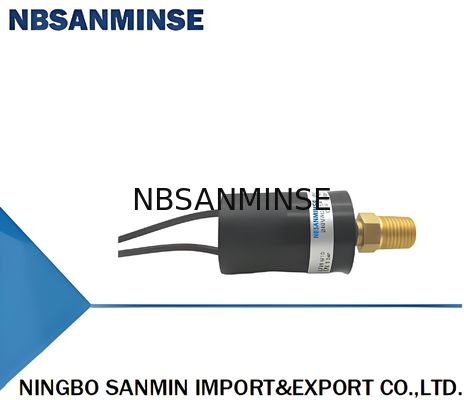

Large Image : SMF08A 1/8 1/4 High Current Pressure Switch Fixed Set Point Automatic Reset Air Water Pressure Switch NBSANMINSE

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	SMF08A

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

SMF08A 1/8 1/4 High Current Pressure Switch Fixed Set Point Automatic Reset Air Water Pressure Switch NBSANMINSE

Description

Features:	Fixed Set Point , Automatic Reset	Model:	SMF08A
Size:	NPT1-8 NPT1-4	Certification:	Ce
Medium Temperature:	-50 ~ 120 C	Material:	Copper
Highlight:	Automatic Reset High Current Pressure Switch , SMF08A High Current Pressure Switch

Ex : ON :1Bar OFF:2Bar =NC

ON :2Bar OFF:1Bar =NO

ON :-0.9Bar OFF:-0.65Bar =NO

ON :-0.65Bar OFF:-0.9Bar =NC

Get SANMIN's coupons,Please click here !

The images shown are not all the actual item and are for your reference only

ON>OFF is NO , ON<OFF is NC

NC = Normally Closed

NO = Normally Open

1-4 = NPT 1/4"

1-8 = NPT 1/8"

Normally is brass material,Normal close,if special request ,please memo for us during payment .

SMF08A is an overloaded pressure switch, the maximum pressure can be up to 750 PSI and the maximum rated current can be 25A. The contact arrangement can be normal close or normal open. It can be used in refrigerating unit, all kinds of air conditioner, air compressor, oil pump and other commercial equipment which need the protection of the pressure system by adjusting the fluid pressure voluntarily.

Specifications :

Model	SMF08A
Medium	air, water, refrigerant, oil, lubricant and other similar hydrocarbon
Factory setting range	12 PSI-750 PSI, the setting value is fixed, non-adjustable
Proof Pressure	750 PSI
Burst pressure	5000 PSI
Working temperature	-30~+80℃
Switch type	SPST, NC or NO
Electrical rating	36Vdc/36Vac,≤25A 120Vac,≤25A 240Vac,≤20A
Dielectric strength	AC1500V x 1minute, AC1275V x 1minute after humid heat test
Terminal	1/4’’ blade or wiring connection
Connection type	NPT1/8, G1/8, NPT1/4,G1/4,7/16UNF,copper pipe connection(regular)
Options	various connection types, wire leads (epoxy sealed), protective cover

SMF08A 1/8 1/4 High Current Pressure Switch Fixed Set Point Automatic Reset Air Water Pressure Switch NBSANMINSE 7

The images shown are not all the actual item and are for your reference only
