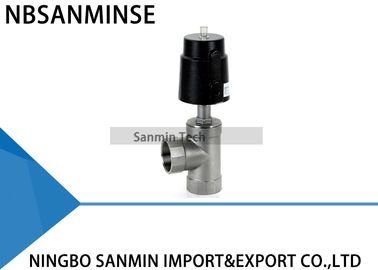

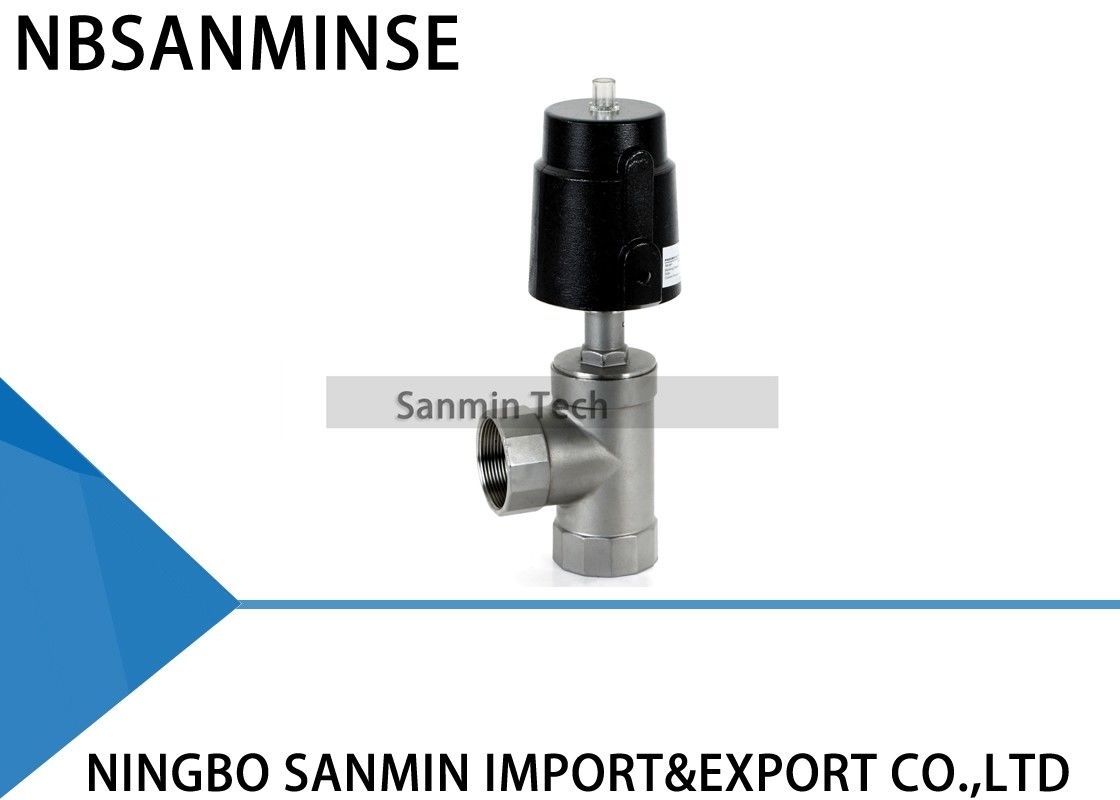

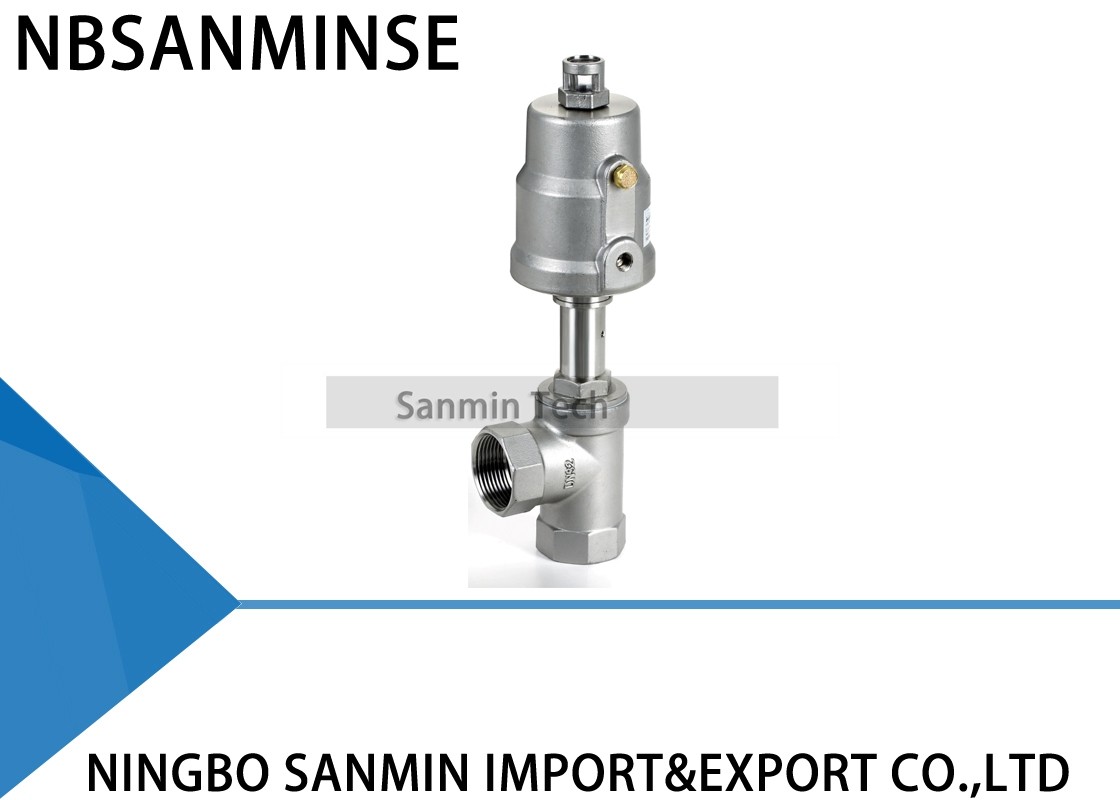

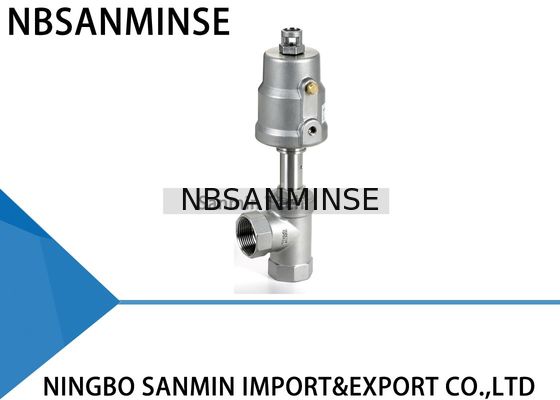

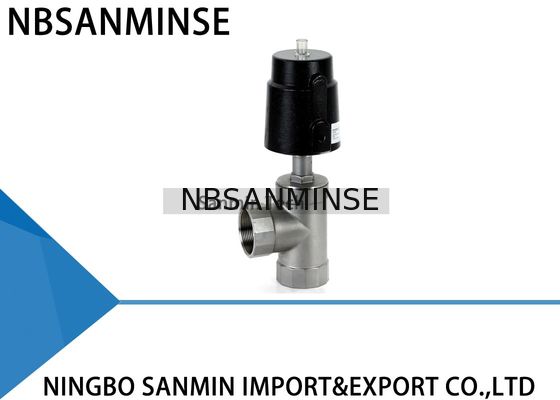

JDF1400 / JDF1500 Pneumatic Angle Seat Valve SS 304 Pneumatic Drain Valve

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: Ningbo Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: JDF1300 / JDF1400

Detail Information

Control Function: 2/2 - Way Pneumatically Operated Drain Valve Body Material: S.S 304
Nominal Pressure: PN16 ( Body ) Operating Method: Plunger Pilot
Medium Temp: - 10 ~ 120 C Seat Seal: PTFE / FPM / NBR
High Light:

slanted seat valve

,

angle seated valves

,

Pneumatic Angle Seat Valve SS 304

Product Description





JDF1400 / JDF1500 Pneumatic Angle Seat Valve , SS 304 Pneumatic Drain Valve





2/2 - Way Drain Valve Pneumatically Operating , For medium up to +120 C , Threaded Port and Tri - Clamp Connection DN 15 - 50





Acting Type

S : Single Acting

D : Double Acting



Body Material

Blank : S.S 304 ( Standard )



Control Function

NO : Normally Open

NC : Normally Closed ( Standard )



Nominal Diameter

15 : G1/2 , 20 : G3/4 , 25 : G1 , 32 : G1-1/4 ,  40 : 1-1/2 , 50 : G2



Actuator Material Code

P : PA Actuator

S : S.S. Actuator

A : Aluminum Actuator

C : Aluminum pneumatic Cylinder



JDF1400 Series Plunger pilot drain valve is operated by a piston actuator , eight single acting or double acting .

Actuators are made of four different materials , applicable to different ambient temperature ;

2/2 – Way stainless steel valve with big flow capacity

Maintenance free , manual switching can be achieved conveniently .
