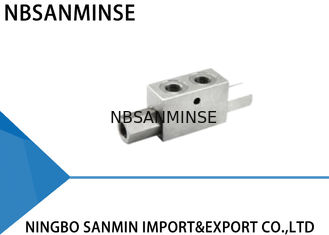

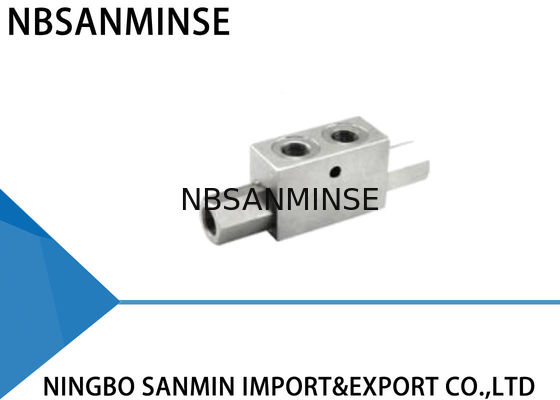

VRDE Type Two-Way Hydraulic Lock Valve Industry Valve
The hydraulic three-way shuttle valve is mainly used as a reversing valve to control the flow of hydraulic oil to different oil ways by changing the position of the valve core, so as to realize the action conversion of the hydraulic actuator. It is widely used in the hydraulic system requiring control direction or switching function, such as the control of various hydraulic machinery, automatic production lines and test equipment.
Basic functions and principles
Reversing function: the core function of the three-way shuttle valve is to realize the reversing of the hydraulic oil flow, that is, control the hydraulic oil to switch the flow direction between different oil ways.
Valve core control: when the internal valve core (usually driven by handle or electric device) is in different positions, different oil circuits will be connected or disconnected, so as to change the connection between main oil circuit and branch oil circuit.
Field of application
Hydraulic machinery: in various hydraulic power machinery, the three-way shuttle valve is used to control the expansion and contraction of the oil cylinder and the steering of the hydraulic motor, so as to realize the conversion of various actions, such as the bucket action switch of the excavator.
Automatic control: in the automatic production line, the three-way shuttle valve can cooperate with other control elements to realize the sequence control of a series of actions such as workpiece clamping, feeding and positioning.
Test equipment: On some hydraulic test benches, the three-way shuttle valve can be used to switch different test loops for various performance tests.
Aircraft hydraulic system: As one of the various valves in the aircraft hydraulic system, the three-way shuttle valve is used on the aircraft to control the action of various hydraulic drive components, such as the retraction and retraction of the landing gear.
| VRDE |
Thread |
L/min |
Pilot ratio |
PN(bar) |
| VRDE-G1/4 |
NPTG1/4 |
20 |
1:4.5 |
350 |
| VRDE-G3/8 |
NPTG3/8 |
50 |
1:4 |
350 |
| VRDE-G1/2 |
NPTG1/2 |
80 |
1:4 |
300 |
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
