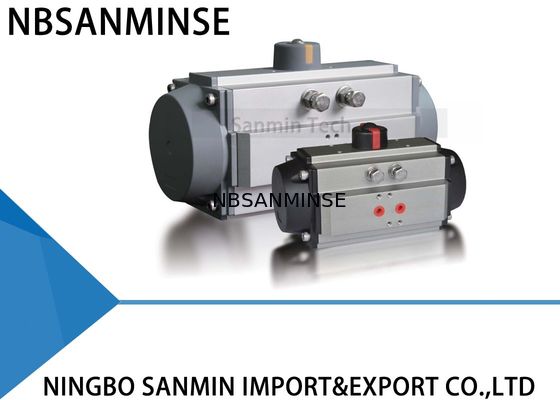

AT Torque Pneumatic Valve Actuator , Spring Return Pneumatic Actuator

Contact Now

AT Torque Pneumatic Valve Actuator , Spring Return Pneumatic Actuator

Minimum Order Quantity :	20	Price :	Negotiation
Packaging Details :	Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice	Delivery Time :	Negotiation
Payment Terms :	L/C, T/T, Western Union	Supply Ability :	10000 pcs / year

Place of Origin:	NINGBO	Brand Name:	NBSANMINSE
Certification:	ISO9001	Model Number:	AT

Detail Information
Model:	AT 032S - 400S	Type:	Single Acting Spring Return
Diameter:	32 - 400 Mm	Temperature:	Room Temperature
Actuator Stroke:	90 ℃	Air Supply Pressure:	5 . 5 Bar
Highlight:	hydraulic regulator valve , electronic hydraulic control valve

Product Description

AT Torque Pneumatic Valve Actuator , Spring Return Pneumatic Actuator

Model Selection Example :

Example 1 : ST095D F07 / 10 17P7046

Description : Actuator mode ST095 , double acting , ISO flange F07 & F10 , 17mm bottom square with standard indicator , P body , cap color grey ( RAL7046 ) , nitrile rubber sealing .

Example 2 : ST190S12 F10 / 14 36 S5021HT

Description : Actuator model ST190 , single acting spring return , with 12 springs , ISO flange F10 & F14 , 36 mm bottom square , S body , cap color green ( RAL5021 ) , fluororubber sealing .

1. For model 32-160

(1) Room temperature

(2) Actuator stroke 90°

(3) Solenoid valve with orifice of 4 mm and a flow capacity Qn400L/min

(4) Inside pipe diameter 6 mm

(5) Medium clean air

2. For model 190-400

(1) Room temperature

(2) Actuator stroke 90°

(3) Solenoid valve with orifice of 12 mm and a flow capacity Qn5100L/min

(4) Inside pipe diameter 8 mm

(5) Medium clean air

Technical Date

Model type A	ST032		ST050		ST065		ST075		St085		ST095		ST110		ST125		ST140
	D	S	D	S	D	S	D	S	D	S	D	S	D	S	D	S	D	S
Diameter (mm)	32		50		65		75		85		95		110		125		140
Air Volume Opening (L)	0.03		0.09		0.19		0.30		0.44		0.88		0.83		1.41		1.76
Air Volume Closing (L)	0.04		0.15		0.32		0.50		0.66		1.17		1.27		2.13		2.72
Opening Time (sec)	0.3		0.3	0.9	0.4	0.9	0.4	0.9	0.9	1.0	0.9	1.4	0.9	1.4	1.3	2.4	1.3	2.8
Closing Time (sec)	0.4		0.4	0.7	0.4	0.8	0.4	0.9	0.9	1.2	1.0	1.4	1.0	1.6	1.4	2.4	1.4	3.0
Weight (Kg) hai	0.47	0.59	1.13	1.25	1.97	2.21	2.93	3.29	3.78	4.26	5.14	5.86	6.09	7.17	10.86	12.54	13.77	15.93

Model type A	ST160		ST190		ST210		ST240		ST270		ST300		ST350		ST400
	D		D		D		D		D		D		D		D
Diameter (mm)	160		190		210		240		270		300		350		400
Air Volume Opening (L)	2.85		4.75		6.60		11.40		15.80		19.09		27.65		42.81
Air Volume Closing (L)	4.08		7.20		10.29		15.10		18.80		28.23		44.10		62.05
Opening Time (sec)	2.0	4.8	2.2	2.4	2.9	3.4	3.2	3.8	2.0	4.8	2.2	2.4	2.9	3.4	3.2	3.8
Closing Time (sec)	2.4	4.9	2.6	3.0	3.8	4.1	3.7	4.0	2.4	4.9	2.6	3.0	3.8	4.1	3.7	4.0
Weight (Kg) hai	20.15	23.75	28.41	33.81	40.03	48.43	52.6	77.76	20.15	23.75	28.41	33.81	40.03	48.43	52.6	77.76

Why choose us

1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service

FAQ

Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .

Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection

Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

AT Torque Pneumatic Valve Actuator , Spring Return Pneumatic Actuator 0

Our products are high quality with 12 month guarantee ,and support paypal payment.
