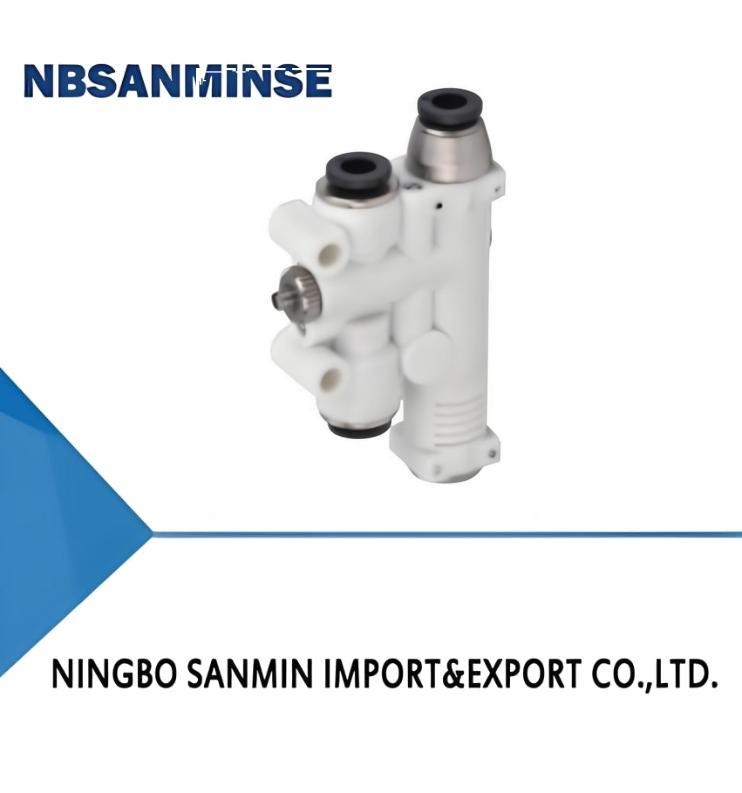

AZR Series Mini Vacuum Generator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	AZR05H

Detail Information
Rated Air Supply Pressure Bar:	5.0	Max. Vacuum Level -kPa:	88
Max. Vacuum Flow NL/min:	7.0	Max. Break Flow Rate NL/min:	40
Air Consumption NL/min:	11

Product Description

Features

◇ Small size, light weight

◇ High vacuum level type and large vacuum flow type are optional

◇ The generator has vacuum breaking function itself

◇ Separate vacuum filter and mounting bracket are optional

Advantages

◇ For the occasions with limited installation space and weight

◇ It can meet different requirements of vacuum flow in different working

conditions

◇ There is noneedfor external control device, can quickly releasethe product

◇ Customers can choose freely according to the actual working conditions

Applications

◇ Suitable for handling electronic components and other small workpieces

◇ Suitable for working occasions where quick picking andquick release are

required

Structure

◇ (1) Release port

◇ (2) Vacuum release regulating valve

◇ (3) Lock nut

◇ (4) Vacuum detecting port

◇ (5) Vacuum port

◇ (6) Vacuum filter

◇ (7) Air supply port

◇ (8) Exhaust por

AZR 07 H - J - V - F ① ② ③ ④ ⑤ ⑥
①Series ②Nozzle Diameter				③Specification				④Exhaust way				⑤Specal spedification			⑥Vacuum filter
AZR	05-φ0.5mm			H-High vacuumleveltype				Nil-Directeshaust				Nil-Standard type			Nil-Standard type
	07-φ0.7mm			L-Large vacuum flow type				-Centralizedexhaust				V-Vacuumdetecting port			F -With vacuum filter
Selection
ModeV Nozzle Diameter		05									07
AZRO□		AZRD5H AZR05L									AZRD7H AZRO7L
AZR□□-J		AZRD5H-J AZR05L-J									AZRD7H-J AZR07L-
AZR□□--F		AZRD5H-J-F AZR05L-J-F									AZRD7H-J-F AZR07L--F
AZRO□-J-V		AZRD5H-J-V AZR05L-J-V									AZRD7H-J-V AZR07L-V
AZRO□-J-V-F		AZRD5H-J-V-F AZRD5L-J-V-F									AZRD7H-J-V-F AZR07L-J-V-F
AZR□□-V		AZRD5H-V AZR05L-V									AZRD7H-V AZRO7L-V
AZR□□-V-F		AZRD5H-V-F AZR05L-V-F									AZRD7H-V-F AZR07L-V-F
AZR□□-F		AZRD5H-F AZRO5L-F									AZRD7H-F AZR07L-F
Technical parameters
Model	Rated air supply pressure bar		Max. vacuum Level kPa		Max vacuum fow NL/min		Max break flow rate NL/min		Air consumption NL/min			Noise level dB(A)	Weight g	Airsupply portP		Recommended hose dia.mm Vacuum portV
AZR05H	5.0		8B		7.0		40		11			80	19	φ4		φ4
AZRD7H	5.0		8B		12.5		40		22			80	20	φ6		φ6
AZR05L	5.0		5B		12.0		40		11			70	19	φ4		φ4
AZRO7L	5.0		5B		20.0		40		22			70	20	φ6		φ6
◎ Nobe:Mau.airsupplypresure is 6D bar
Vacuum flow(NL/min)at different vacuum levels(-kPa)
Model	Air supply pressure bar		Air consumption NL/min		0	10	20		30	40		50	60	70	80	Max. vacuum Level -kPa
AZR05H	5.0		11		8.0	7.3	6.3		5.2	4.2		3.4	2.2	1.4	1.0	88
AZRO7H	5.0		22		12.5	11.5	9.7		7.4	6.5		5.2	4.1	3.0	1.7	88
AZR05L	5.0		11		12.5	10.5	8.7		6.9	5.0		2.9	1.0			58
AZRD7L	5.0		22		22.0	19.1	14.5		9.4	7.2		4.3	1.0			58

Vacuum flow(NL/min) at different vacuum levels(-kPa)

Evacuation time(s/L) to reach different vacuum levels(-kPa)

Air circuit schematic diagram

Vacuum release principle and attentions:

◇ 1. Close solenoid valve and stop air supply, open the release valve. The

residual positive pressure air in the air circuit between check valve

and release port flows into the vacuum circuit to release vacuum

◇ 2. Change the tube length between the check valve and release port

to adjust the residual positive pressure air volume. In this way, the

vacuum releasing time can be adjusted

◇ 3. The vacuum releasing flow of this way is small

Air circuit schematic diagram

Vacuum release principle and attentions:

◇ 1. Close solenoid valve and stop air supply, open the release

valve, and the positive pressure air flows directly into the

vacuum circuit to release the vacuum

◇ 2. Can adjust the vacuum releasing time through controlling

the air supply time of solenoid valve

◇ 3. Adjust the air releasing pressure through the reducing valve

to avoid excessive pressure blowing away the workpiece

◇ 4. The air releasing pressure must be lower than air supply

pressure of vacuum generator

◇ 5. The releasing flow and pressure can be adjusted freely as

required

Dimensions(mm)
