Type 2518
Cable plug,
form A according to DIN EN 175301-803 |

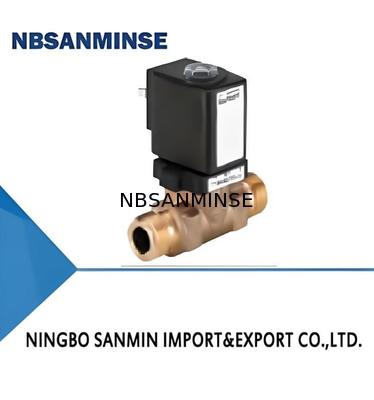

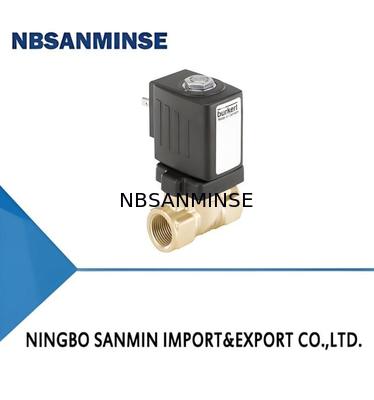

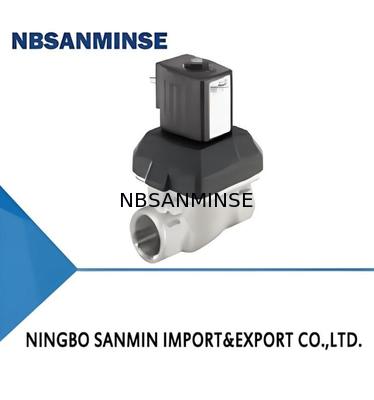

The 6213 EV valve is a servo-assisted diaphragm valve of the S.EV series.
The diaphragm spring coupling supports the opening process of the valve.
In its standard version, the valve is suitable for use in liquids. A minimum dif
ferential pressure is required for complete opening. A special version (HP00)
which opens the valve without differential pressure is available for gas and
vacuum applications. Various diaphragm material combinations are available
depending on the application. The range of housings includes brass, stain
less steel and gunmetal. Dezincification-resistant brass is available for other
markets. To reduce power consumption in operation, coils with Kick and Drop
electronics assembly (double coil technology) are available.
|
|
Type 2513
Cable plug,
form A according to DIN EN 175301-803 |
|
Type 1087
Timer, form A according to DIN EN 175301-803 |
| 1. General technical data |
| Product properties |
| Dimensions |
Detailed infomation can be found in chapter"5.Dimensions"on page 6. |
| Material |
| Seal |
NBR,FKM,EPDM |
| Body |
Brass acc.to DINEN50930-6
Stainless steel 1.4408
Gunmetal(extemal thread)DN 10..DN 20 |
| Coil |
Polyamide,epoxy (insulation classH) |
| lnner part of valve |
Brass body:Brass,stainless steel and PPS
Stainless steel body:Stainless steel and PPS
Gunmetal body:Stainless steel and PPS(external threadDN 10...DN 20 |
| Orifice |
Standard:DN 10..DN40
HP00:DN 13….DN20 |
| Circuit function |
Detailed infomation can be found in chapter"2.Circuit functions"on page 4. |
| Performance data |
| Duty cycle |
100%continuous rating;KD coil max.rating 6 circuit switches/minute |
| Switching timelAC/DC |
| DN 10..DN 13 |
Opening:10.….100 ms
Ciosing:100...200 ms
Opening:200...300 ms
Ciosing:400...700 ms
Opening:30400 ms
Closing:800...1400 ms |
| DN 20 |
| DN 25..DN 40 |
|
| Electrical data |
| Operating voltage |
Standard:024/DC,024/50,230/50,110/50,120/60
HP00:024/DC,24V(50..60 Hz),230V(50...60 Hz) |
| Power consumption |
Depending on orifice and coil size
For detailed infomation,see "6.Performance specifications"on page 11 |
| Voltage toleranoe |
±10% |
| Medium data |
| Operating medium |
| NBR |
Neutral fluids,water,hydraulic oil,oil without additives |
| FKM |
Per-solutions,hot oils with additives |
| EPDM |
Oil and fat-free fluids and gases |
| Medium temperature |
| NBR |
-10C….+80℃ |
| FKM |
0℃…+90Cwith polyamide coil
0℃.…+120℃with epoxy coil |
| EPDM |
-30°C…+90℃ with polyamide coil |
| -30°C….+100℃ withepoxy coil |
EPDM with dninking water approval
according to UBA |
Application range of cold and hot water up to+60°℃ |
| Viscosity |
Max.21mm²/s |
| Process/Port connection &communication |
| Bectrical connection |
Tag connector acc.to DINEN175301-803 fom A
(see"8.4.Ordering chartaccessories"on page 29 |
| Approvals and certificates |
| Degree of protection |
IP65IP65 with cable plug Type 2518▶
4XNEMA with stainless steel version and cableplug Type 2509▶ |
| Environment and installation |
| Installation |
As required,preferably with actuator upright |
| Ambient temperature |
Max.+55℃ |
| .)Measrement at 6 bar and+20°℃at the wade oufet,openg pessre buid-up0...90%,dosing pressue educion 10...10% |
