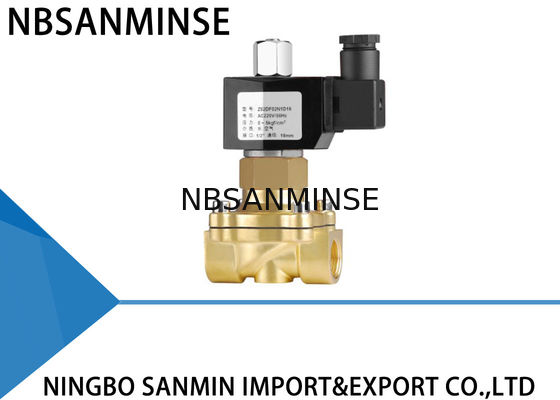

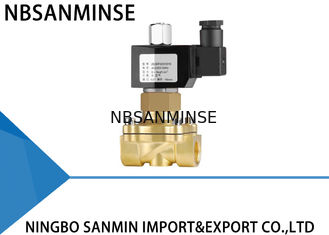

Z6 Anti Explosion Forged Brass Solenoid Valve Normally Open 0 - 65 ℃ Temperature

Z6 Anti Explosion Forged Brass Solenoid Valve Normally Open 0 - 65 ℃ Temperature


Applicability :

1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid
valve , general solenoid valve is better claim to medium cleanness
4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
5 . Pay attention to the environmental temperature on the influence of solenoid valve .

Reliability :

Ction time is very short at high frequency generally choose directly acting , large diameter
choose fast series .

Security :

General solenoid valve is not waterproof , when needs waterproof model , we can be customized .

Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .

Details

1: 2 - Way normally open solenoid valve , open when de - energized , Closed When energized .
2: Body Material : Brass
3: Max. Allowable pressure 10 kgf / cm ² ; Ambient Temp . 0 ℃ ~ 65 ℃
4: Serialized products , small in size , Large flow rate , widely use .
5: Flow as the arrow , mounts in any position ; Best position is Solenoid vertical and upright direction .
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60Hz 24VDC / 12VDC ; Voltage
Tolerance : + 10 % to - 10 % applicable voltage .
7: This series valves are offered NBR ` VITON ` EPDM etc for Seals and diaphragm to provide on - off control of various fluids .

 Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Reliable quality assured and active after-sell service
5: One year quality guarantee


Our products are high quality with 12 month guarantee ,and support paypal payment.

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder,  air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
