Thread Connection P5 Air Compressor Solenoid Valve 220VAC / 230VAC / 240VAC

Product Description

Thread Connection P5 Air Compressor Solenoid Valve 220VAC / 230VAC / 240VAC


Applicability

1 . Fluid temperature must be less than the marked temperature .

2 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness

3 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .

4 . Pay attention to the environmental temperature on the influence of solenoid valve .

5 . Power supply current and power consumption should be selected according to the output capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the VA value is higher .

Reliability

Ction time is very short at high frequency generally choose directly acting , large diameter choose fast series .

Security

1 . Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .

2 . Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .

Economy

There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products

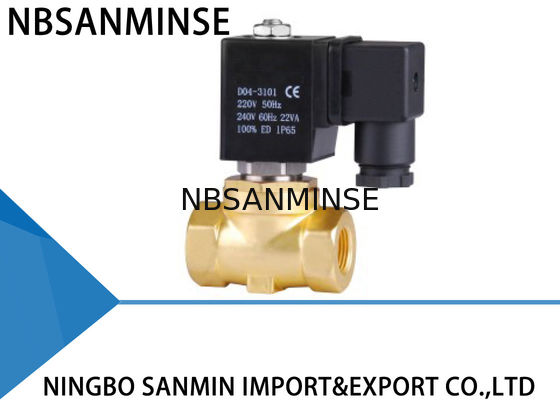

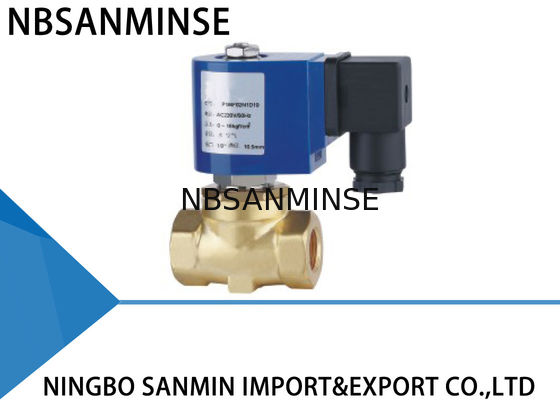

Brass

1: 2 Way normally closed solenoid valve , Closed when de - energized , open when energized .
2: Serialized products , small in size , large flow rate , widely use
3: Body material : forged brass . Orifice : Φ 10 . 5mm
4: Ambient Temp. 0 ℃ ~ 65 ℃ , Fluids Temp : 0 ℃ ~ 130 ℃ .
5: Flow as the arrow , mounts in any position ; Best position is solenoid vertical and upright direction .
6: Voltage: 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VDC / 12VDC ;
Voltage Tolerance : + 10 % to - 10 % applicable voltage
7: This series valves are offered NBR , VITON , EPDM , etc . For Seals and diaphragm to provide on - off control of various fluids .

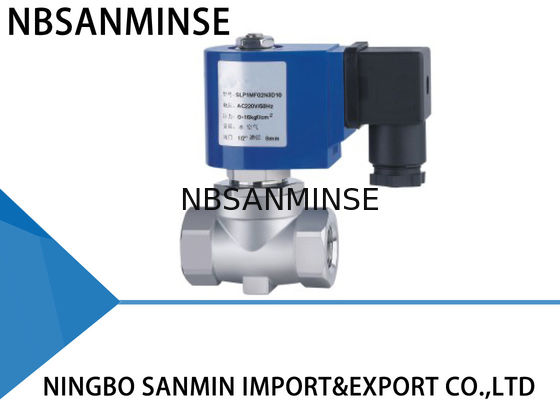

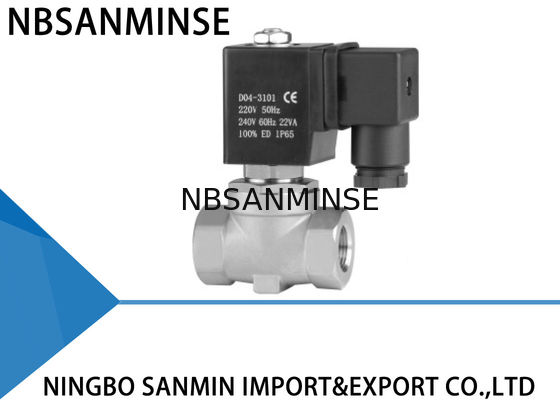

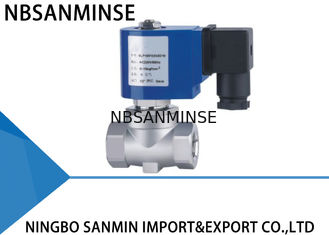

Stainless Steel

1: 2 Way Normally closed solenoid valve , closed when de - energized , open when energized .
2: Serialized produvts , small in size , large flow rate , widely use
3: Body material : SS316 Orifice Φ 8mm
4: Ambient Temp 0 ℃ ~ 65 ℃ Fluids Temp . : 0 ℃ ~ 130 ℃
5: Flows as the arrow , mounts in any position ; best position is solenoid valve vertical and upright direction .
6: Voltage : AC24V / 110V / 220V / 230V / 240V 50 / 60HZ DC24V / 12V /
Voltage Tolerance : + 10 % ~ - 10 % applicable voltage
7: This series valves are offered NBR , VITON , EPDM Etc , Forseals and diaphragm to provide on / off control of various fluids .

Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee


FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .

Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .

Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection

Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
