2W Series Solenoid Valve Brass Valve Water Valve Steam Valve Anti - Explosion Solenoid Valve
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +008615168536055
|Minimum Order Quantity :||20||Price :||Negotiation|
|Packaging Details :||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice||Delivery Time :||Negotiation|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||10000PCS / Year|
|Place of Origin:||NINGBO||Brand Name:||NBSANMINSE|
|Certification:||ISO9001||Model Number:||Z7 2 / 2 Way Stainless Steel Valve|
|Medium:||Water , Hot Water , Air , Gas , Oil Etc||Type:||Normally Open|

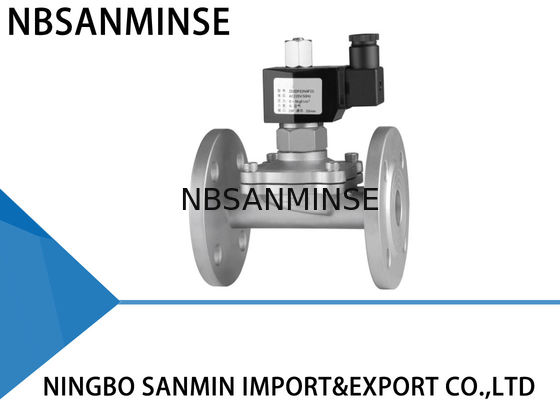

|Temperature:||0 ~ 65 ℃||Connection:||Thread , Flange ( DN 25 - 50 )|
|Action:||Direct Acting||Body:||Stainless Steel 304 / 316|
|Pressure:||0 ~ 5 Kgf / Cm ²||Port Size:||3 / 8 " ,1 / 2 " ,3 / 4 " ,1 " ,1 1 / 4 " ,1 1 / 2 " ,2 "|
magnetic solenoid valve,
electronic solenoid valve

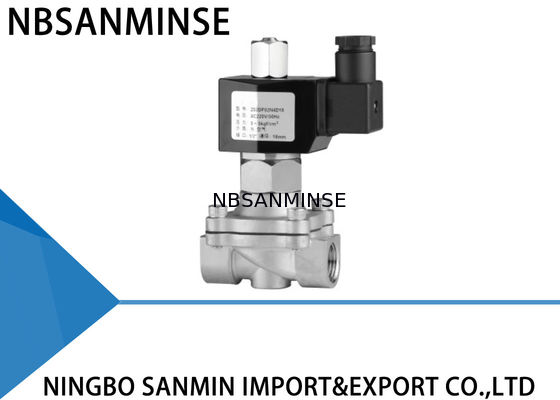

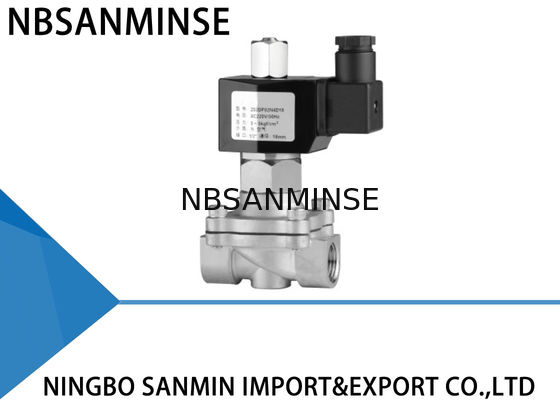

Z7 2 Way Normally Closed Solenoid Valve Direct Acting 0 - 5 kgf / cm ² Pressure
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . About the working pressure difference , the pipeline high - pressure difference less than
0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of
solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .
4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
5 . Pay attention to the environmental temperature on the influence of solenoid valve .
Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .
General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure
in the pipeline , otherwise life will shorten or other unexpected circumstances .
1: Two Way normally open solenoid valve , open when de - energized , Closed when energized .
2: Body material : SS304 ( Standard ) , SS316 ( Special Made )
3: Max. Allowable pressure 10kgf / cm ² , Ambient Temp . 0 ℃ ~ 65 ℃
4: Serialized products , small in size , large flow rate , widely use .
5: Flow sa the arrow , mounts in any position ; Best position is Solenoid Vertical and upright direction .
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VVDC / 12VDC
7: This series Valves are offered NBR ` VITON ` EPDM ect for Seals and diaphragm to provide on - off control of various fluids
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Provide free products information .
6: One year quality guarantee
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples for the massive products .
Q: What ' s your business scope ?
A: Our business scope is air cylinder , air source treatment , air solenoid valve , motorize valve , pneumatic valve , quick fitting , etc .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do you company have specialized technical personnel ?
A: Do you company have specialized technical personnel , they can design the product which the most meet your requirements .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Our products are high quality with 12 month guarantee ,and support paypal payment.
