• Servo-assisted diaphragm with diameter of up to DN 50
• Vibration-proof, central screwed coil system
• Damped design for quiet closing
• Energy-saving double coil technology with kick and drop variant
• Explosion-proof versions
| Can be combined with |
Type description |
 |
Type 2518
Cable plug,
form A according to DIN EN 175301-803 |

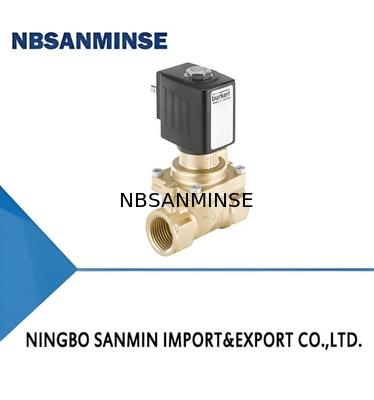

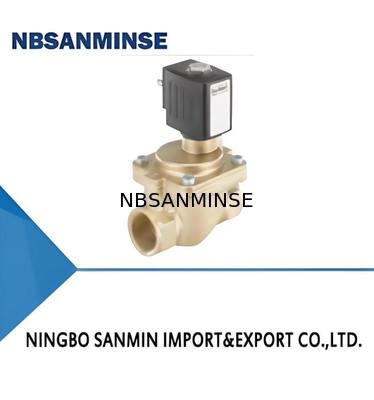

The 6281 valve is a servo-assisted solenoid valve of the S.EV series. A minimum
differential pressure is always required for the function of the valve. Various dia
phragm material combinations and methods of operation are available depending
on the application. The standard brass housing satisfies all European drinking
water requirements. Dezincification-resistant brass is available for other markets.

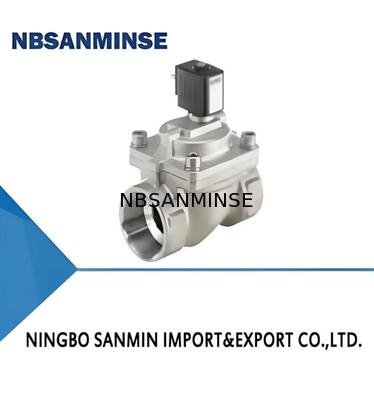

The housing offering is rounded out by a stainless steel version. To reduce power
consumption in operation, coils with "Kick and Drop" (KD) electronics assembly
(double coil technology) are available. The valve can be equipped with manual
override for easy maintenance and commissioning. NEMA 4X is available on
request.
|
|
Type 2509
Cable plug,
form A according to DIN EN 175301-803 |
| 1.General technical data |
| Product properties |
|
| Dimensions |
Further infomation can be found in chapter "5.Dimensions"on page 7. |
| Material |
| Seal |
NBREPDM,FKM |
| Body |
Brass acc.to DIN EN 50930-6,stainless steel
(dezincification resistant on request) |
| Inner valve parts |
Stainless stee,Brass,Plastic(PPS) |
| Orifice |
DN 10...DN 50 |
| Circuit function |
Further infomation can be found in chapter “2.Circuit functions”on page 4. |
Themal insulation class of
solenoid coil |
Polyamide coil class B
Epoxy coil class H |
| Performance data |
| Duty cycle |
100%continuous operation |
| Switching time⁴ |
Opening:0.1.….1.5 s
Closing:0.2...4s |
| Electrical data |
| Operating woltage |
24V/DC,24VUC,24V/50...60 Hz,230 VUC,230V/50...60Hz |
| Power consumption |
Further infomation can be found in chapter "6.Performance specifications"on page 12. |
| Voltage tolerance |
±10% |
| Medium data |
| Operating medium |
| NBR |
Neutral fluids (e.g.compressed air,water) |
| EPDM |
Oiland fat-free fluids,hot water,aceton,aqueous alkali solution |
| FKM |
Hot air,per-solution |
| Medium temperature |
| NBR |
-10.…+80℃ |
| EPDM |
-30*...90℃(with epoxy coil to+100℃) |
| FKM |
0℃…90℃with epoxy coil to+120℃) |
| Process/Port connection &communication |
| Bectrical connection |
·Cable plug Type 2518▶,fomA acoording to DIN EN 175301-803
Further infomation can be found in chapter"“Cable plug Type 2518,form Aaccording to DIN EN
175301-803"on page 20. |
| ·Cable plug Type 2509▶,fomA acoording to DIN EN 175301-803 |
Further infomation can be found in chapter"“Cable plug Type 2509,form Aaccording to DIN EN
175301-803"on page 20. |
| Approvals and conformities |
| Directives CE,EAC |
| Degree of protection |
IP65 with cable plug,cable connection and terminal box |
| Explosionprotection |
Further infomation can be found in chapter"3.4.Explosion protection"on page 4. |
| North America(USA/Canada) |
Further infomation can be found in chapter"3.5.North America (USA/Canada)"on page 5. |
| Drinking water |
Further infomation can be found in chapter "3.6.Drinking water"on page 5. |
| Environment and installation |
| Installation |
As required,preferably with actuator upright |
| Ambient temperature |
Max.+55℃ |
|
1.) Measurement at +20 °C, 6 bar at the valve outlet, opening: pressure build-up 0…90%, closing: pressure reduction 100…10%
|
