Product Details:
Place of Origin: NINGBO
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: 2W
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pcs / year
Contact Now
Detailed Product Description
Medium: Air , Water , Oil , Gas Type: Normally Open / Closed
Temperature: - 5 ~ 80 ℃ Connection: Thread , Flange ( DN 25 - 40 )
Action: Direct Acting Body: Forged Brass , Cast Brass , Stainless Steel
Pressure: 0 ~ 5 Kgf / Cm ² Port Size: 1 / 8 " ,1 / 4" ,3 / 8 " ,1 / 2 " ,3 / 4 " ,1 " ,1 1 / 4 " ,1 1 / 2 " ,2 "
High Light:

magnetic solenoid valve

,

electric solenoid valve

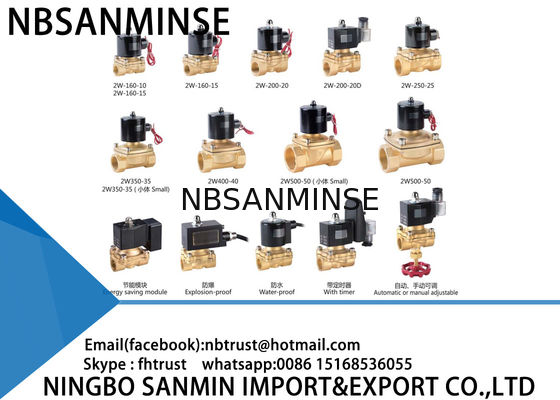

2W Series Solenoid Valve Brass Valve Water Valve Steam Valve Anti - Explosion Solenoid Valve







2W160 - 10 , 2W160 - 15 , 2W200 - 20 , 2W250 - 25 , 2W350 - 35 , 2W400 - 40 , 2W500-50


Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
6: Provide free products information .
7: Reliable quality assured and active after-sell service
8: One year quality guarantee






FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.




Model 2W160-10 2W160-15 2W200-20 2W250-25 2W350-35 2W400-40 2W500-50
Working Medium Air, Water, Oil, Gas
Motion Pattern Direct Drive Type
Type Normal Close Type; Normal Open Type
Aperture of Flow Rate 16mm 16mm 20mm 25mm 35mm 40mm 50mm
CV Value 4.8 4.8 7.6 12 24 29 48
Post Size 3/8” 1/2” 3/4” 1” 11/4“ 11/2” 2“
Operation Fluid Viscosity 20 CST below
Working-Pressure Water:0~5kgf/cm², Air:0~7kgf/cm², Oil:0~5kgf/cm², Gas:0~7kgf/cm²
Max. Pressure Resistance 10.5kgf/cm²
Operating Temperature Range -5~80 ℃
Voltage range ±10%
Material of Body Brass
Material of Oil Seal NBR,EPDM or VITON

OrDering :



2W : 2/2 way solenoid valve(Direct drive type)


Aperture of flow rate :



160 : 16 mm

200 : 20 mm

250 : 25mm

350 : 35mm

400 : 40mm

500 : 50mm


Port Size :



10 : 3/8"

15 : 1/2"

20 : 3/4"

25 : 1"

35 : 11/4"

40 : 11/2"

50 : 2"


Initial Estate :



Blank : Pipe Jiont type

F : Flange Type


Standard Voltage:



DC12V

DC24C

AC24V   50/60Hz

AC36V   50/60Hz

AC110V 50/60Hz

AC220V 50/60Hz

AC380V 50/60Hz


Wiring form :



Blank : Lead Wire Type

D : Join Connector

E : Blast-proof Coil

G : Water-proof Coil


2W Series Solenoid Valve Brass Valve Water Valve Steam Valve Anti - Explosion Solenoid Valve 02W Series Solenoid Valve Brass Valve Water Valve Steam Valve Anti - Explosion Solenoid Valve 12W Series Solenoid Valve Brass Valve Water Valve Steam Valve Anti - Explosion Solenoid Valve 2
