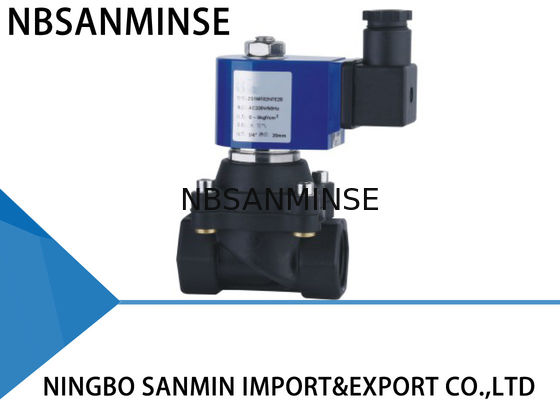

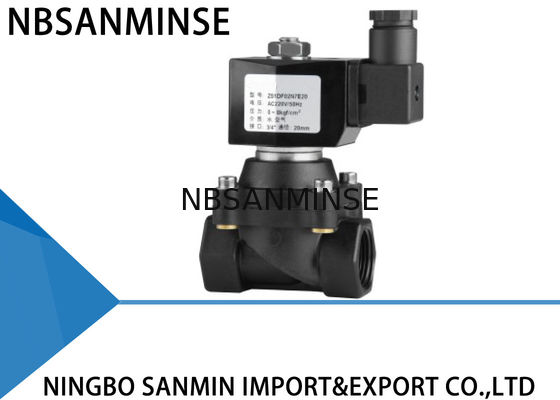

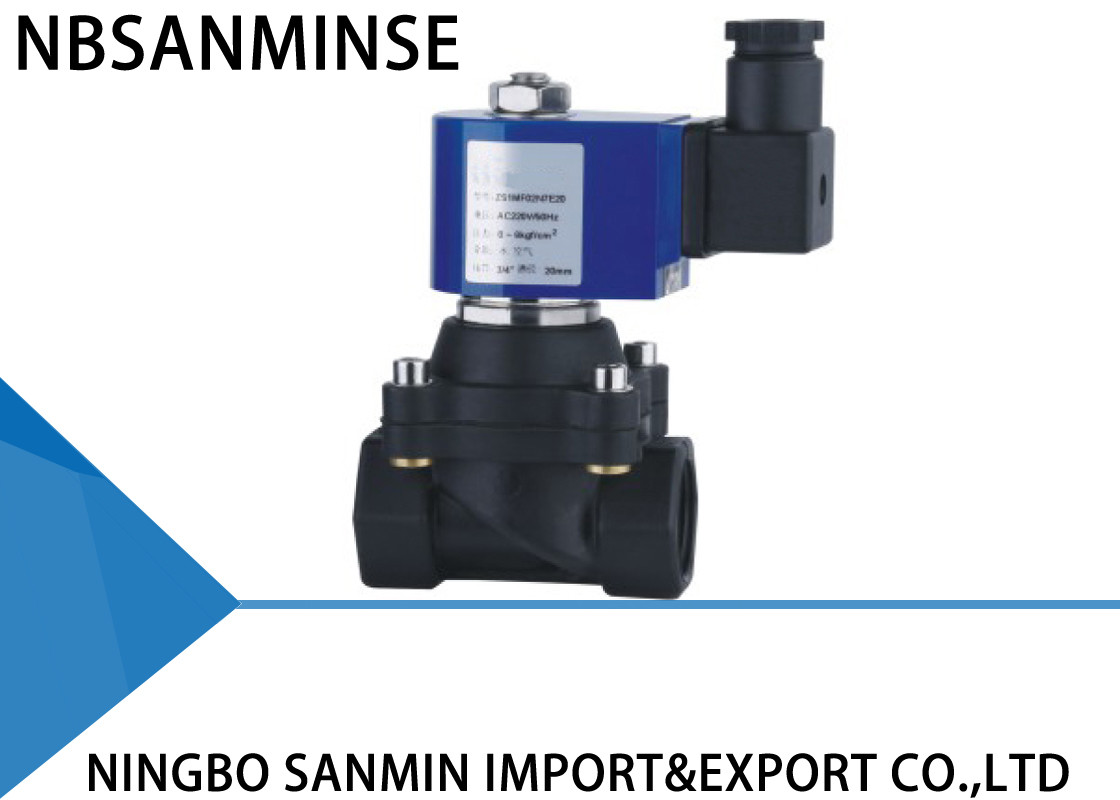

Z5 Plastic Solenoid Valve Zero pressure Thread Connection ISO9001 Certification

Product Description

Z5 Plastic Solenoid Valve Zero pressure Thread Connection ISO9001 Certification

Applicability :

1 . The pipeline fluid must same as solenoid valve marked medium .

2 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall

be indicated .

3 . About the working pressure difference , the pipeline high - pressure difference less than

0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of

solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether

there is a contrast pressure , if you have to install the check valve .

4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .

5 . Pay attention to the environmental temperature on the influence of solenoid valve .

Reliability :

Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .

Security :

General solenoid valve is not waterproof , when needs waterproof model , we can be customized .

Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .

Explosive environment must choose corresponding anti - explosion type.

Details

1: 2 - Way normally closed solenoids valve .

2: Closed When De - energized , open when energized .

3: Body material : Nylon

4: Max pressure : 10 bar Ambient temp 0 - 65 ℃

5: Serialized products , small in size , large flow rate

6: Voltage : AC 220V / 230V / 240V / 110V / 24V / 12V

7: Voltage tolerance : -10 % ~ + 10 %

8: Diaphragm seals : NBR , VITON , EPDM , SILICAGEL

9: Plastic body : Its advantages are low cost , light , good appearance and easy to install . Consult factory for other size .

10: Coil can fix SM coil . AC 220V / AC110V / AC24V / DC24V .

Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Provide free products information .
5: Reliable quality assured and active after-sell service

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples for the massive products .

Q: What ' s your business scope ?
A: Our business scope is air cylinder , air source treatment , air solenoid valve , motorize valve , pneumatic valve , quick fitting , etc .

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any color .

Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .

Our products are high quality with 12 month guarantee ,and support paypal payment.
