2W Series Solenoid Valve Brass Valve Water Valve Steam Valve Anti - Explosion Solenoid Valve
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
|Minimum Order Quantity :||20||Price :||Negotiation|
|Packaging Details :||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice||Delivery Time :||Negotiation|
|Payment Terms :||T/T, L/C, Western Union||Supply Ability :||Negotiation|
|Place of Origin:||NINGBO||Brand Name:||NBSANMINSE|
|Certification:||ISO9001||Model Number:||P3 Compact Series|
|Medium:||Water , Hot Water , Air , Gas , Oil Etc||Type:||Normally Open|
|Temperature:||0 ~ 65 ℃||Connection:||Thread|
|Action:||Direct Acting||Body:||Forged Brass , Stainless Steel 316|
|Pressure:||0 - 30 Kgf / Cm ²||Port Size:||1 / 8 " ,1 / 4"|
electronic solenoid valve,
electric solenoid valve

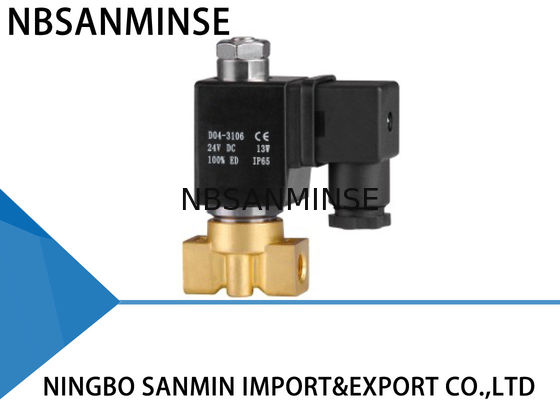

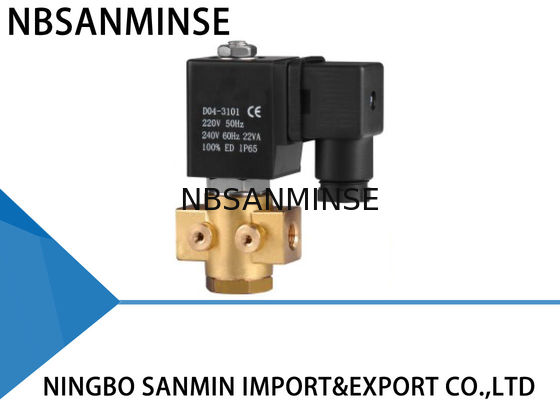

Bistable P3 Brass Solenoid Valve 1 / 4 Inch High Frequency NBSANMINSE Brand
1 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .
2 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .
3 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness
4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
5 . Pay attention to the environmental temperature on the influence of solenoid valve .
Ction time is very short at high frequency generally choose directly acting , large diameter choose fast series .
1. Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .
2. Explosive environment must choose corresponding anti - explosion type.
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products
1: 2 Way normally open solenoid valve , Open when de - energized , Closed when energized.
2: Serialized products , small in size , large flow rate widely use .
3: Body material : forged brass . 316 stainless steel .
4: Ambient Temp . 0 ℃ ~ 65 ℃ , Fluids Temp 0 ℃ ~ 130 ℃ .
5: Flow as the arrow , mounts in any position ; Best position is solenoid vertical and upright direction
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VDC / 12VDC
7: This series valves are offered NBR , VITON , EPDM etc , For Seals and diaphragm to provide on - off control of various fluids .
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve
,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse
vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check
valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick
coupler , etc .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But
you need give us the authorization for work.
