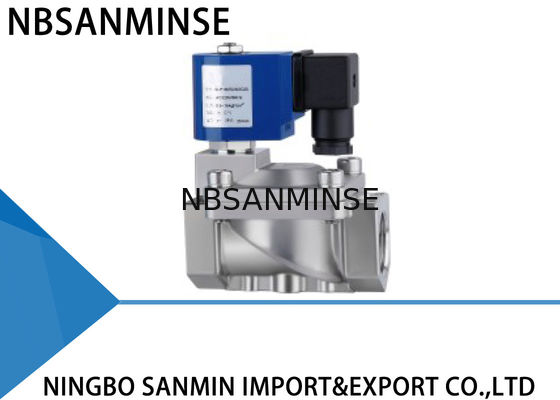

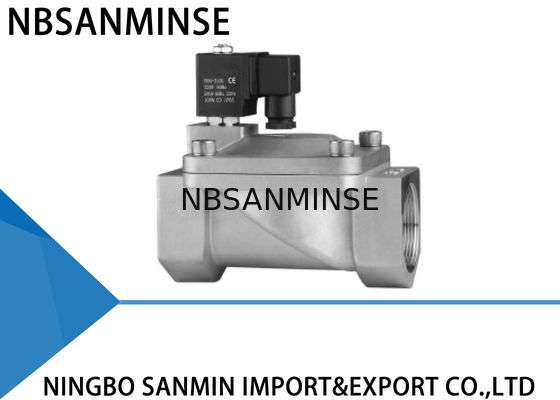

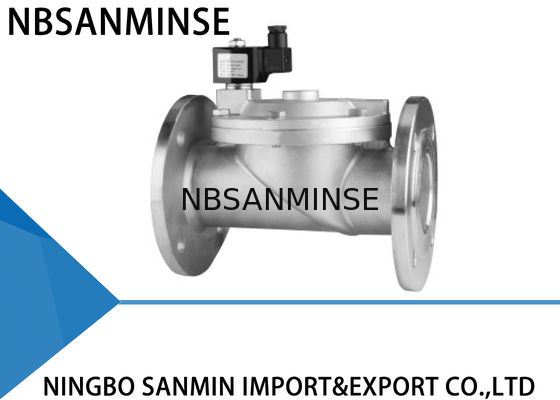

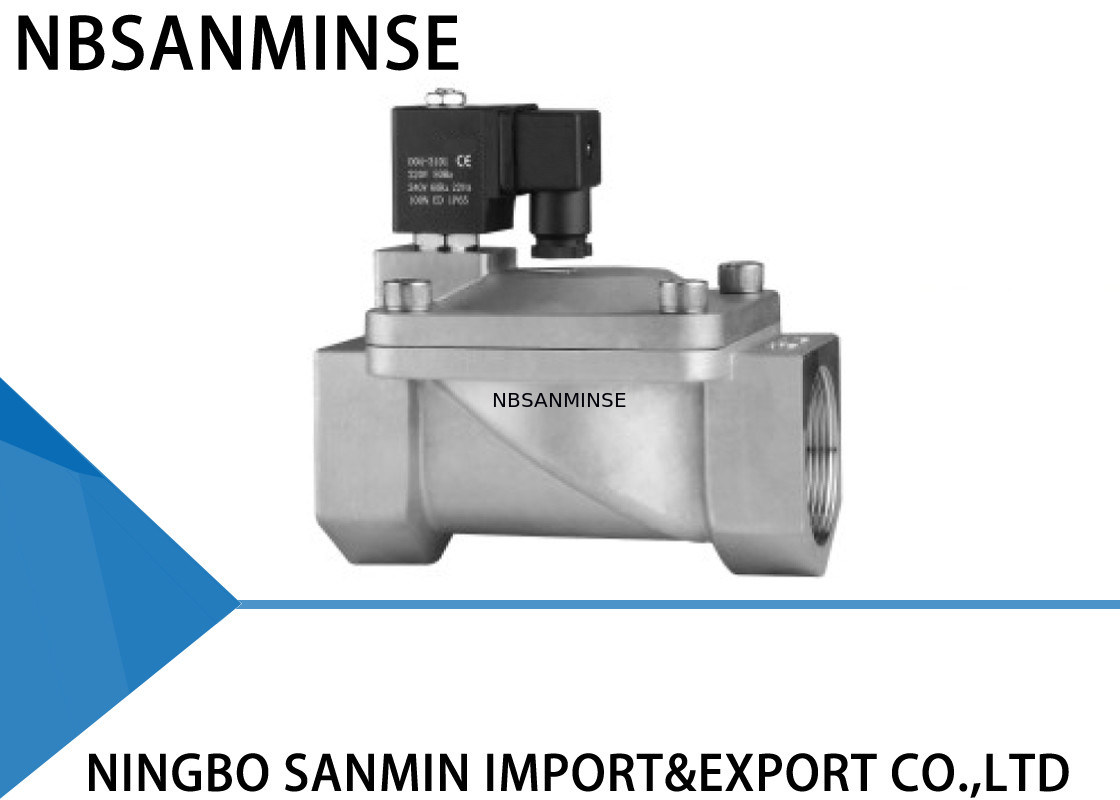

P7 Large Diameter Normally Open Solenoid Valve Stainless Steel 304 / 316

P7 Large Diameter Normally Open Solenoid Valve Stainless Steel 304 / 316

Applicability

1 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .

2 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness

3 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .

4 . Pay attention to the environmental temperature on the influence of solenoid valve .

5 . Power supply current and power consumption should be selected according to the output capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the VA value is higher .

Reliability

1. Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .

Security

1. General solenoid valve is not waterproof , when needs waterproof model , we can be customized .

2. Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .

3. Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .

Economy

There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products

Details

1: 2 Way normally closed solenoid valve , Closed when de - energized , open when energized .

2: Body material: 316 stainless steel

3: Max. Allowable pressure 20kgf / cm ² ; Ambient Temp . 0 ℃ ~ 65 ℃

4: Serialized products , small in size , large flow rate , widely use

5: Flow as the arrow , mounts in any position ; Best position is Solenoid Vertical and upright direction .

6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VDC / 12VDC

7: Coil can fix Germany Nass Coil , for Orifice under DN25 only

8: This series valves are offered NBR , VITON , EPDM etc for Seals and diaphragm to provide on -off control of various fluids.

Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .

3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder,  air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
