CO2 Liquid Steam Brass Solenoid Valve Normally Closed High / Low Temperature

CO2 Liquid Steam Brass Solenoid Valve Normally Closed High / Low Temperature

Applicability

1 . The pipeline fluid must same as solenoid valve marked medium .

2 . Fluid temperature must be less than the marked temperature .

3 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness

4 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .

5 . Pay attention to the environmental temperature on the influence of solenoid valve .

Reliability

Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .

Security

1 . General solenoid valve is not waterproof , when needs waterproof model , we can be customized .

2 . Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .

Economy

There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products.

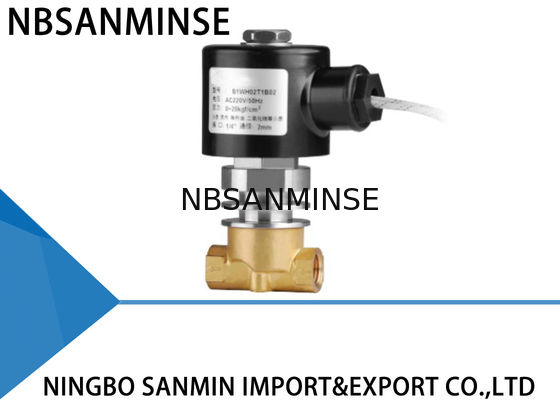

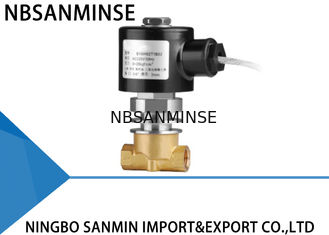

B Series solenoid valve it is serialized products , large flow rate , good applicability . widely used in steam , oi and the other high & low temperqture linquid control

Adopted high temperature resistance seal material - PTFE ( which material import ) , when the meida passage the properties is good .

Coils type : high temperature resistance coil meanwile has the heat conduction protection .

Ensure the long life time and high reliability .

Main Technical Parameters

1 . 2 / 2 - Way solenoid valve , closed when de - energized , open when energized .

2 . Main material : body : forged brass , component : Stainless Steel

3 . Seal material : PTFE

4 . Ambient temp . : - 20 ~ 65 ℃

5 . Operating pressure : 0 . 0 ~ 50 . 0 kgf / cm ²

6 . Media temp . : - 100 ℃ ~ - 10 ℃   high temp . : 99 ℃ ~ 200 ℃

7 . Media : high temperature : steam , heat conducting oil and so on low temperature : n₂ , o₂ ,   co₂

attenation : under the naturature temperature , such as air , water and the other

media , please choose the other economy & suitable solenoid valve .

8 . Voltage : AC24V / 110V / 240V / 230V 50 / 60 HZ  DC 12V / 24V

power consumption : AC27va ( 16 W ) DC 24W

Voltage tolerance : - 10 % ~ + 10 %

Coils type : w ( normally ) a = din standard , metallic housing

Safty series : class h heat resistance coil , ip 65

9 . Install : flow as the arrow , solenoid vertical and upright direction . if media has the eranule impurity , please install more than 60 mesh filter .

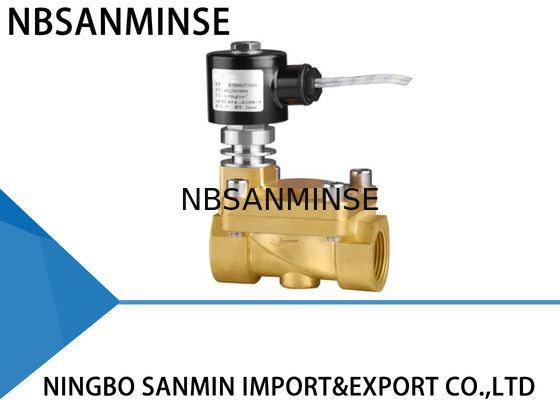

Large Diameter

Main Technical Parameters

1 . 2 / 2 - Way solenoid valve , Closed when de - energized , open when energized .

2 . Main material : body : forged brass  component : stainless steel

3 . Seal Material : PTFE

4 . Ambiet Temp . : - 20 ~ 65 ℃

5 . Operating Pressure : 1 . 0 ~ 10 . 0 kgf / cm ² Max . : 15 . 0 kgf / cm ²

6 . Media Temp . : Low Temp . : - 100 ℃ ~ - 10 ℃  high Temp . : 99 ℃ ~ 185 ℃

7 . Media : high temperature steam , heat conducting oil and so on low temperature : N_{2 ,} O_{2 ,} CO₂

Attenation : Under the naturature temperature , such as air , water and the other media , please choose the other economy & suitable solenoid valve .

8 . Voltage : AC24V / 110V / 240V / 230V /  50 / 60 HZ  DC12V / 24V

Power Consumption : AC27VA ( 16W ) DC24W

Voltage Tolerance : - 10 % ~ + 10 %

Coil type : W ( Normal ) = Leed Wires A = DIN Standard , Metallic Housing

Safty Series : Class H Heat resistance coil , IP 65

9 . Install : Flow as the arrow , solenoid , vertical and upright direction . if media has the granule impurity , please install more than 60 mesh filter .

Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
6: Provide free products information .
7: Reliable quality assured and active after-sell service
8: One year quality guarantee

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder,  air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
