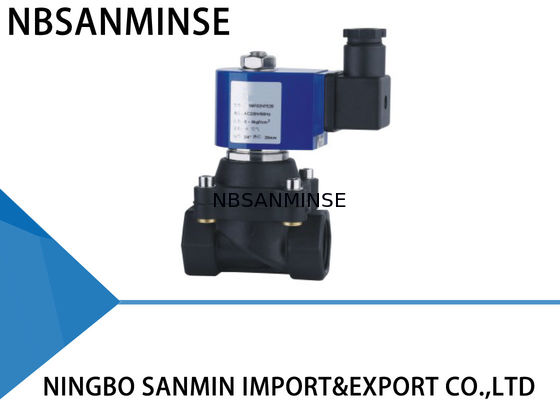

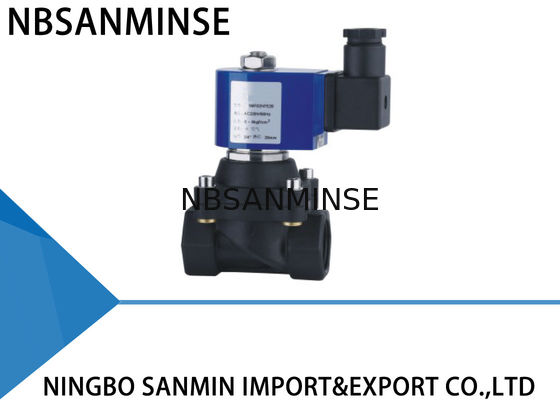

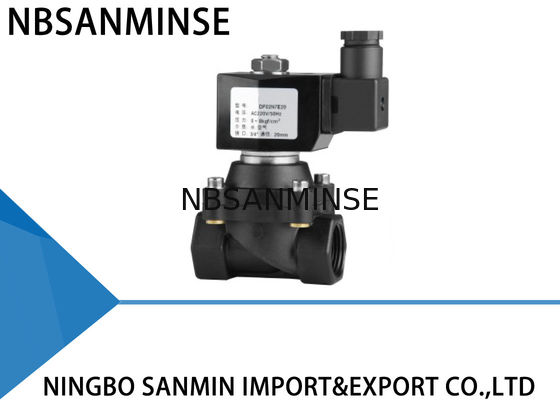

Z8 Reinforced Nylon Plastic Solenoid Valves For Water Industrial / Irrigation Solenoid Valve

Product Details:
Place of Origin: China
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: Z8 Normally Closed
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation

Detail Information

Medium: Water , Air Type: Normally Open
Temperature: 0 ℃ ~ 65 ℃ Connection: Thread
Action: Zero Press Differential Body: Reinforced Nylon ( PA6 )
Pressure: 0 - 5 Kgf / Cm ² Port Size: 1 / 2 " , 3 / 4 " , 1 "
High Light:

magnetic solenoid valve

,

electronic solenoid valve

Product Description

Z8 Reinforced Nylon Plastic Solenoid Valves For Water , Industrial / Irrigation Solenoid Valve








Applicability :



1 . The pipeline fluid must same as solenoid valve marked medium .

2 . Fluid temperature must be less than the marked temperature .

4 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid

valve , general solenoid valve is better claim to medium cleanness

5 . Pay attention to the environmental temperature on the influence of solenoid valve .

6 . Power supply current and power consumption should be selected according to the output

capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the

VA value is higher .

7 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions

permit , please install bypass pipe , easy maintenance ; When there is water drain to customize

solenoid valve opening and closing time regulation .



Reliability :



Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .



Economy :



There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products




Details



 1 : 2 / 2 - Way normally open solenoids valve .

2 : Open when de - energized , closed when energized

3 : Body material : Nylon ( PA6 )

4 : Max pressure : 10 bar Ambient temp 0 - 65 ℃

5 : Serialized products , small in size , large flow rate

6 : Voltage : AC 220V / 230V / 240V / 110V / 24V / 12V

7 : Voltage tolerance : - 10 % ~ + 10 %

8 : Diaphragm seals : NBR , VITON , EPDM , SILICA GEL

9 : Plastic body : Its advantages are low cost , light , good appearance and easy to install , Consult factory for other size .




Why choose us



1: Various style for each products and completely series pneumatic products .

2: Large stock for fast shipping .

3: High quality with competitive price .

4: Sample order & small quantity order is acceptable .

5: Reliable quality assured and active after-sell service

6: One year quality guarantee




FAQ



Q: How much is our minimum order quantity ?

A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?

A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your business scope ?

A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



Q: what types of products you can make ?

A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?

A: Design as  your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
