SMF10 - L 1/4 NPT Air Compressor Pressure Switch Pressure Operated Electric Switch Easy Mounting NBSANMINSE

Product Details:
Place of Origin: NINGBO
Brand Name: NBSANMINSE
Certification: CE
Model Number: SMF10 - L
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation

Detail Information

Features: Easy Mounting Item Type: Switches
Warranty: 12 Months Medium: Air
Port: One Port,four Port Factory Setting: 0.6-0.8Mpa
High Light:

magnetic solenoid valve

,

electric solenoid valve

Product Description

SMF10 - L 1/4 NPT Air Compressor Pressure Switch Pressure Operated Electric Switch Easy Mounting NBSANMINSE

ON>OFF is NO , ON<OFF is NC

The images shown are not all the actual item and are for your reference only

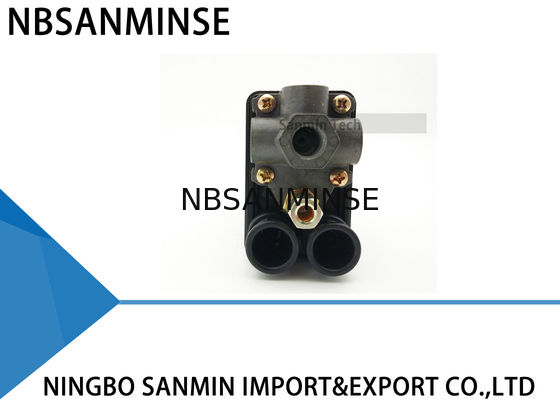

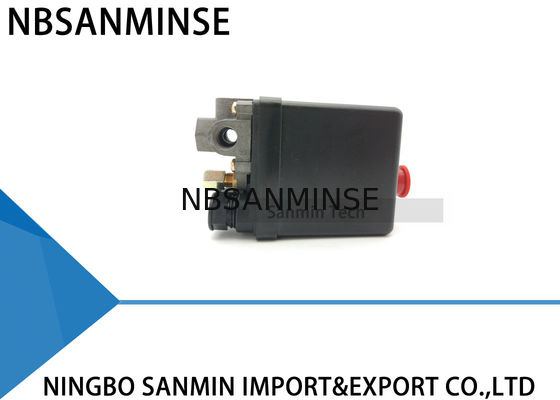

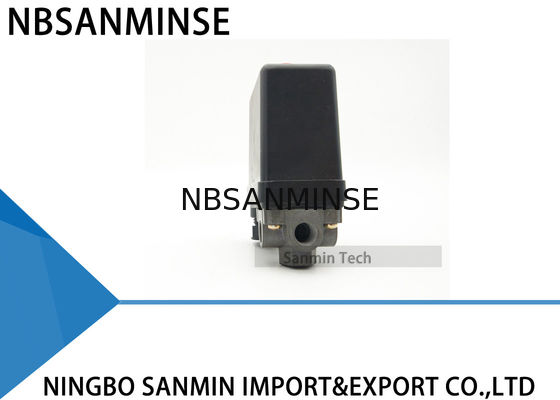

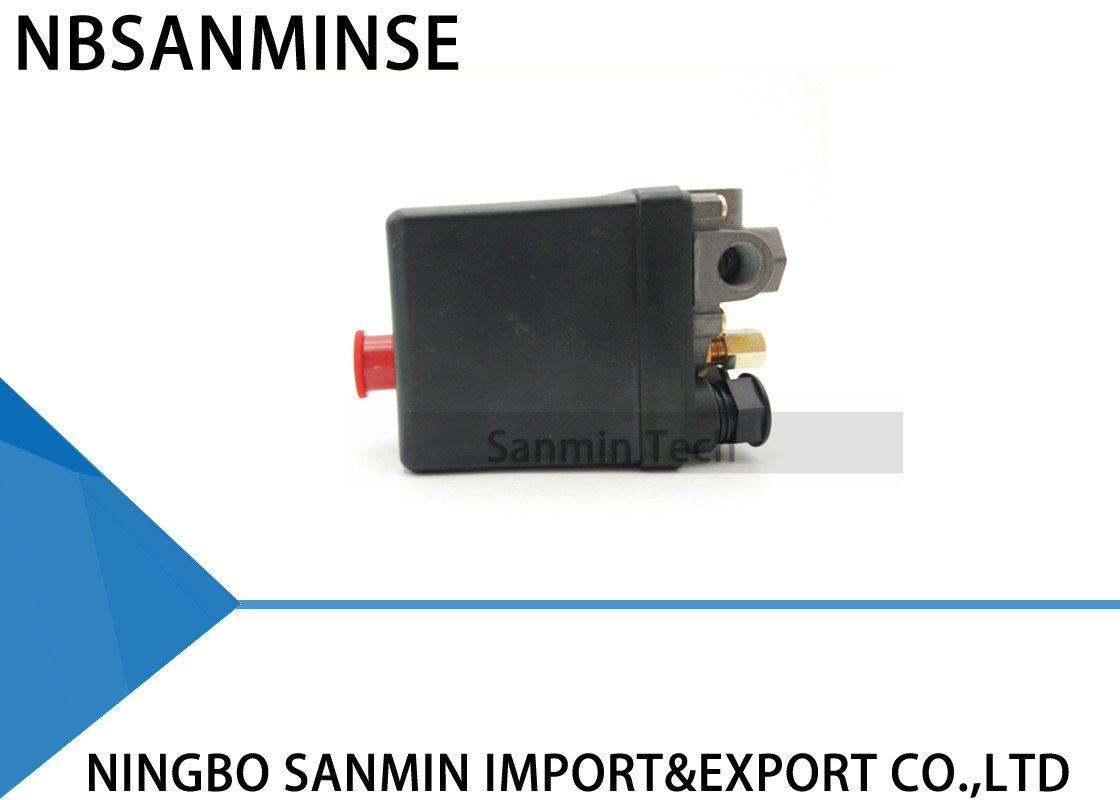

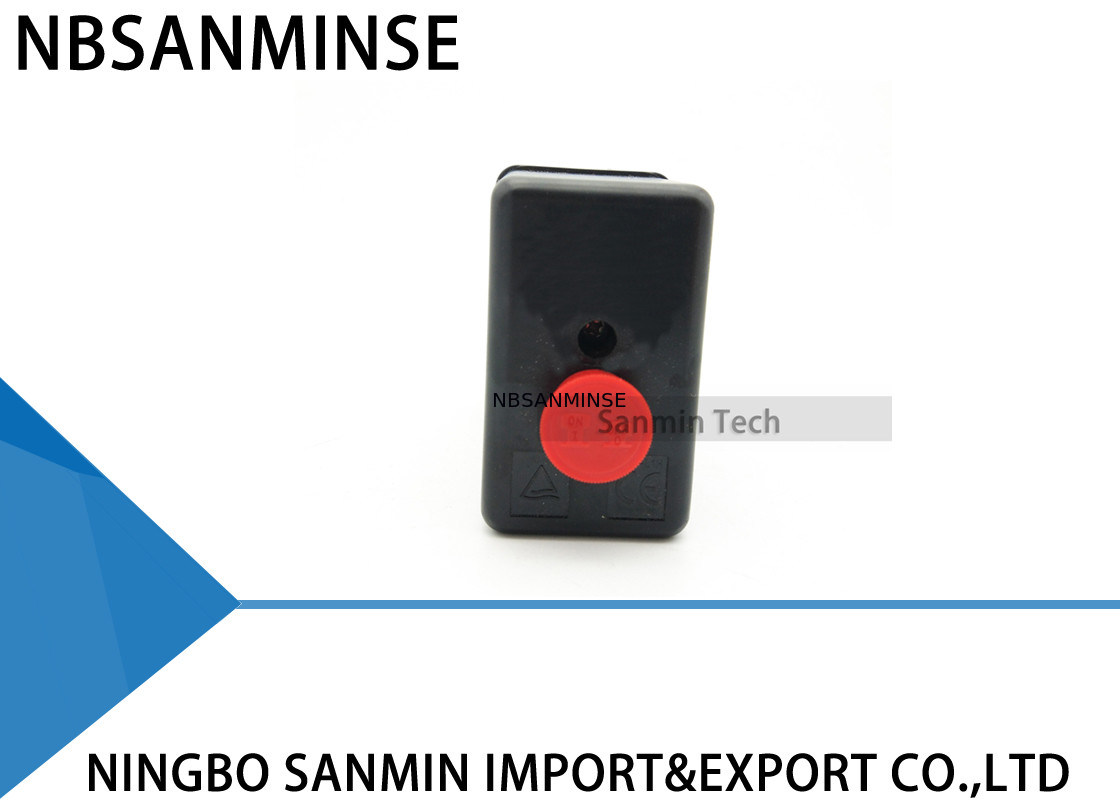

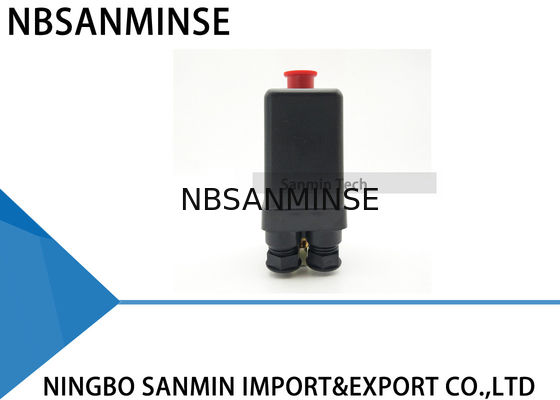

IMG_20180117_143840.1__ IMG_20180117_143844.1__ IMG_20180117_143848.1__ IMG_20180117_143851__ IMG_20180117_143858.1__ IMG_20180117_143903.1__


NPT1-4 = NPT 1/4"
Normally vertical design,female thread,if special request,please make a memo to us during payment.


The SMF10-L pressure switch is a pressure-operated electric switch for use in regulating the tank pressure between two preset values on electrically driven air compressors. It is available with an unloader valve, which prevents compressors from starting under load, and an On-Off button for manual cut off the compressor. A four port manifold style is available which provides a means for easy mounting of valves and gauges.


MODEL
SMF10-L1H
SMF10-L4H
Medium
Air
Air
Operating Pressure Range
0.5~1.2Mpa
0.5~1.2Mpa
Differential Pressure
0.2Mpa
0.2Mpa
Factory Setting
0.6~0.8 Mpa
0.6~0.8 Mpa
Operating Temperature Range
-30~55C° C
-30~55° C
Electrical Rating
240V,20A, 50Hz
240V,20A, 50Hz
Contact Arrangement
Normally Open(NC)
Normally Open(NC)
Port
one port
four ports
Pipe Fittings
G1/4, G3/8 or 1/4, 3/8 NPT Female
G1/4, G3/8 or 1/4, 3/8 NPT Female
Approval: UL, CUL, CE , CCC


Why choose us
1: Various style for each products and completely series pneumatic products .
2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: Large stock for fast shipping .


FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .


Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .


Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .


Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



F10-L_
