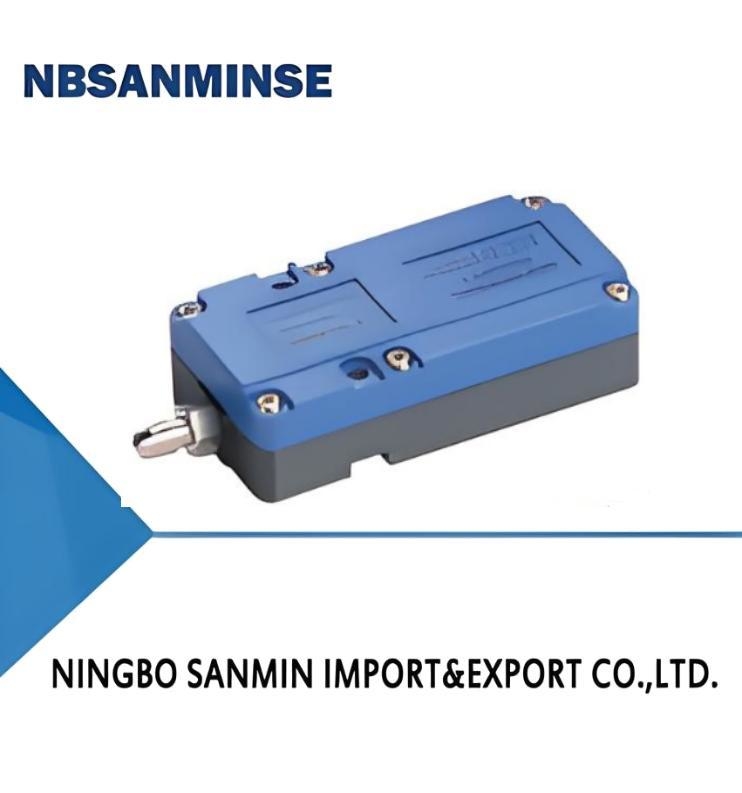

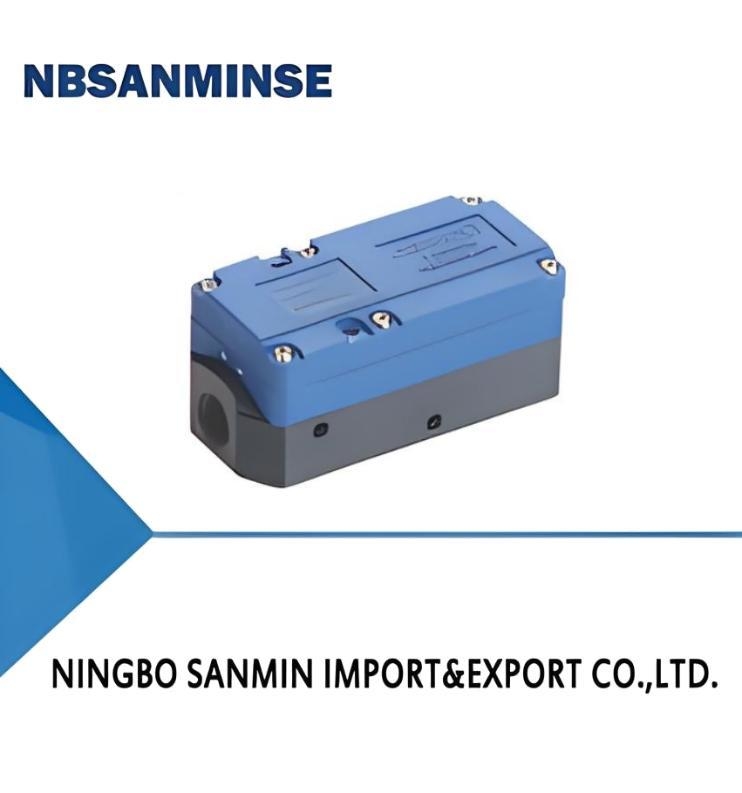

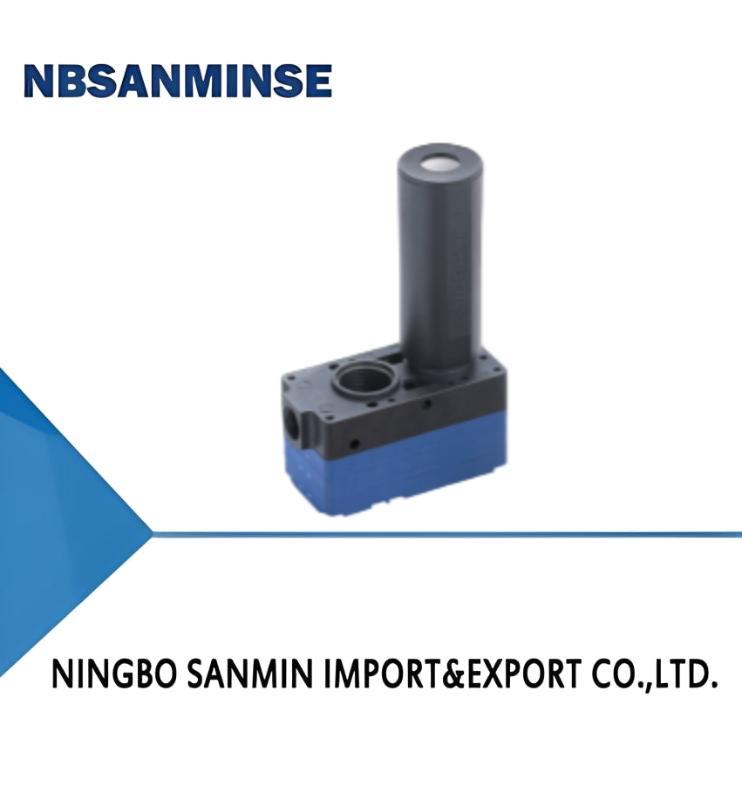

ABM/ABX Series Mini Vacuum Generator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	ABM5,ABX5

Detail Information
Air Supply Pressure Range Bar:	4.5~6.0	Max. Vacuum Level -kPa:	85
Max. Vacuum Flow NL/min:	35~37	Air Consumption NL/min:	12~20
Noise Level DB(A):	50~65

Product Description

Features

◇ Energy-efficient nozzle design

◇ Small size, light weight, can be connected with suction cup directly

◇ There are a variety of air port specifications(A,NA ,B,NB,C,NC)

◇ Built-in silencer and external silencer are optional

Advantages

◇ It can produce more vacuum flow in the condition of less air consumption

◇ For the occasions with limited installation space and weight

◇ Suitable port connection specifications canbe selected according to the

on-site requirements

◇ It can meet different requirements of vacuum flow in different working

conditions

◇ Reduce product noise greatly

Applications

◇ Universal vacuum generator, widely used in all kinds of vacuum systems

◇ Suitable for metal plate handling, packaging machinery, injection molding

and industrial robot technology field

Structure

◇ (1) Air supply port

◇ (2) Vacuum port

◇ (3) Exhaust port

◇ (4) Vacuum filter

◇ (5) Silencer

How to order

ABM 10 -B-F

① ② ③ ④

①Series

Specification

Port connection

④Sealing

ABM-Universaltype(-85kPa)

A NA

Nil-Default,NBR

ABX-High vacuum leveltype(-92kPa)

B NB

F -Fluorine rubber

C NC

E -EPDM

(Refer to table1)

Port connection table1

Port connection

Air supply port

Vacuum port

Exhaust port

Applicable vacuum generator

M5-φ6

G1/8

Internal silencer

ABM5,10 ABX5,10

M5-φ6

NPSF1/8

Internal silencer

ABM5,10 ABX5,10

G1/8

G3/8

Internal silencer

ABM5,10,20,30 ABX5,10,20,30

NPSF1/8

NPSF3/8

Internal silencer

ABM5,10,20,30 ABX5,10,20,30

G1/8

G3/8

External silencer

ABM5,10,20,30 ABX5,10,20,30

NPSF1/8

NPSF3/8

External silencer

ABM5,10,20,30 ABX5,10,20,30

Selection - ABM

Model/
Specification

ABM5-□

ABM5-A

ABM5-NA

ABM5-B

ABM5-NB

ABM5-C

ABM5-NC

ABM10-□

ABM10-A

ABM10-NA

ABM10-B

ABM10-NB

ABM10-C

ABM10-NC

ABM20-□

ABM20-B

ABM20-NB

ABM20-C

ABM20-NC

ABM30-□

ABM30-B

ABM30-NB

ABM30-C

ABM30-NC

Selection - ABX

Model/
Specification

ABX5-□

ABX5-A

ABX5-NA

ABX5-B

ABX5-NB

ABX5-C

ABX5-NC

ABX10-□

ABX10-A

ABX10-NA

ABX10-B

ABX10-NB

ABX10-C

ABX10-NC

ABX20-□

ABX20-B

ABX20-NB

ABX20-C

ABX20-NC

ABX30-□

ABX30-B

ABX30-NB

ABX30-C

ABX30-NC

Technical parameters - ABM

Model	Air supply pressue range bar	Max. vacuum level -kPa	Max. vacuum flow NL/min	Air consumption NL/min	Noise level dB(A)	Working temperature ℃	Recom Air supply portP	mended hos dia Vacuum portV
ABM5	4.5~6.0	85	35~37	12~20	50~65	-20~80	φ6	φ8
ABM10	4.5~6.0	85	70~75	28~42	55~68	-20~80	φ6	φ10
ABM20	4.5~6.0	85	141~150	55~85	60~68	-20~80	φ8	φ12
ABM30	4.5~6.0	85	175~220	87~125	60~68	-20~80	φ10	φ12

Technical parameters - ABX

Model	Air supply pressue range bar	Max. vacuum level -kPa	Max. vacuum flow NL/min	Air consumption NL/min	Noise level dB(A)	Working temperature ℃	supply portP	Recom Airmended hose dia. mm Vacuum portV
ABX5	4.5~6.0	92	30~32	18~22	50~65	-20~80	φ6	φ 8
ABX10	4.5~6.0	92	52~63	31~40	55~68	-20~80	φ6	φ10
ABX20	4.5~6.0	92	110~125	79~89	60~69	-20~80	φ8	φ12
ABX30	4.5~6.0	92	180~185	128~137	60~69	-20~80	φ10	φ12

◇ Note: Max. air supply pressure is 7.0 bar

Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model	Air supply pressure bar	Air consumption NL/min	0	10	20	30	40	50	60	70	80	Max. vacuum level -kPa
ABM5	4.5	12	35.0	20.5	12.0	10.5	8.5	6.5	4.5	2.5	0.8	85
ABM10	4.5	28	70.0	40.5	25.0	21.0	18.0	14.0	9.5	5.0	1.3	85
ABM20	4.5	55	141.0	77.0	45.0	39.5	29.5	25.0	17.5	12.0	3.0	85
ABM30	4.5	87	175.0	105.0	70.0	63.0	53.0	40.0	26.0	14.0	6.5	85
ABM5	6.0	20	37.0	25.0	15.5	12.0	8.0	6.0	4.0	2.7	0.6	85
ABM10	6.0	42	75.0	55.0	27.0	20.0	18.0	12.0	9.0	5.0	2.0	85
ABM20	6.0	85	150.0	100.0	55.0	38.0	30.0	24.0	16.0	11.0	3.2	85
ABM30	6.0	125	220.0	150.0	81.0	65.0	50.0	38.0	27.0	18.0	5.0	85

Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model	Airsupply pressure bar	Air consumption NL/min	10	20	30	40	50	60	70	80	Max. vacuum level -kPa
ABM5	4.5	12	0.11	0.42	0.95	1.66	2.50	3.65	5.25	7.89	85
ABM10	4.5	28	0.08	0.20	0.44	0.80	1.24	1.80	2.55	3.80	85
ABM20	4.5	55	0.04	0.12	0.23	0.41	0.65	0.93	1.33	2.03	85
ABM30	4.5	87	0.03	0.09	0.16	0.27	0.43	0.66	0.95	1.43	85
ABM5	6.0	20	0.13	0.51	1.15	1.93	2.87	4.09	5.84	10.46	85
ABM10	6.0	42	0.03	0.23	0.53	0.92	1.37	1.95	2.77	4.62	85
ABM20	6.0	85	0.02	0.15	0.28	0.46	0.71	1.02	1.48	2.55	85
ABM30	6.0	125	0.02	0.08	0.14	0.31	0.49	0.69	1.02	1.75	85

Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model	Air supply pressure bar	Air consumption NL/min	0	10	20	30	40	50	60	70	80	90	Max. vacuum level -kPa
ABX5	4.5	18	30.0	13.0	7.5	7.0	6.0	5.0	4.0	3.2	1.8	0.4	92
ABX10	4.5	31	52.0	240	18.0	15.0	13.0	10.5	8.0	6.0	2.5	0.8	92
ABX20	4.5	79	100.0	46.0	34.0	30.5	25.0	21.0	17.0	10.5	5.0	1.6	92
ABX30	5.0	128	180.0	95.0	55.0	45.5	40.5	30.5	25.0	19.0	11.5	3.0	92
ABX5	6.0	22	32.0	20.0	8.5	7.5	6.0	5.0	4.0	3.0	1.5	0.15	92
ABX10	6.0	40	63.0	36.0	18.0	16.0	12.5	10.5	8.5	6.0	3.5	0.5	92
ABX20	6.0	89	125.0	73.0	35.0	30.0	25.0	22.0	18.0	12.0	7.0	0.9	92
ABX30	6.0	137	185.0	103.0	51.0	46.0	38.0	31.0	25.0	19.0	12.0	1.8	92

Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model	Airsupply pressure bar	Air consumption NL/min	10	20	30	40	50	60	70	80	90	Max. vacuum level -kPa
ABX5	4.5	18	0.13	0.60	1.26	2.30	3.20	4.50	6.15	8.50	15.50	92
ABX10	4.5	31	011	0.30	0.65	1.10	1.55	2.15	2.85	4.70	10.20	92
ABX20	4.5	79	0.09	0.16	0.32	0.55	0.80	1.50	1.80	2.70	5.00	92
ABX30	5.0	128	0.06	0.12	0.23	0.36	0.53	0.76	1.10	1.60	2.90	92
ABX5	6.0	22	015	0.71	1.52	2.54	3.72	5.12	6.95	9.70	21.00	92
ABX10	6.0	40	0.09	0.32	0.71	1.18	1.74	2.40	3.26	4.55	10.20	92
ABX20	6.0	89	0.05	0.15	0.31	0.52	0.77	1.08	1.54	2.15	4.92	92
ABX30	6.0	137	0.03	0.13	0.23	0.38	0.58	0.82	1.11	1.54	3.00	92

Dimensions(mm)

Dimensions(mm)

Repair kits
