AZH Series Basic Vacuum Generator

Minimum Order Quantity :	100PCS	Packaging Details :	Plastic bag
Delivery Time :	5-30days	Supply Ability :	10000PCS

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Model Number:	AZH05D

Detail Information
Shape:	B - Box Type	Rated Air Supply Pressure Bar:	4.5
Air Consumption NL/min:	13.5	Noise Level DB(A):	75
Air Supply Pressure Bar:	4.5

Product Description

Features

◇ Single stage vacuum generator with plastic housing

◇ High vacuum level type and large vacuum flow type for option

◇ Body ported type and box type for option

◇ Thread connection or one-touch fitting for port connection

Advantages

◇ Small size,light weight and cost-effective

◇ Suitable for various occasions

◇ Box type with built-in silencer to reduce noise

◇ Thread connection and one-touch fitting for option

Applications

◇ Widely used in all kinds of vacuum systems

◇ Suitable for various handling operations such as automotive,

metal sheet, wood, food and packaging, etc.

◇ High vacuum type and large flow type for different occasions

Structure

◇ (1) Exhaust port

◇ (2) Air supply port

◇ (3) Vacuum port

◇ (4) Mounting hole

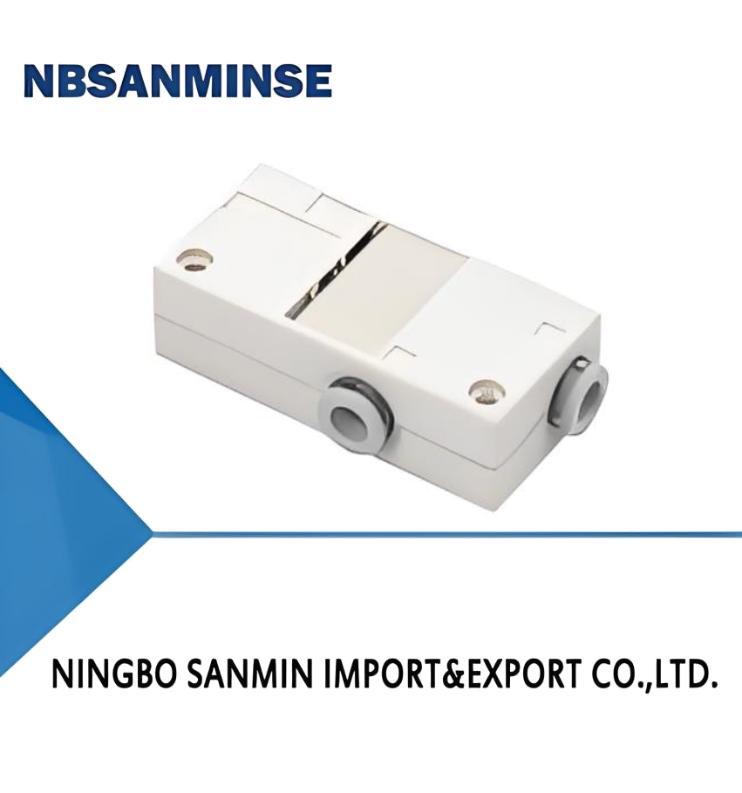

Selection-Box type

Model/Shape
BS

AZH05BS-06-06

AZH05BS-01-01

AZH05BL-06-06

AZH05BL-01-01

AZH07BS-06-06

AZH07BS-01-01

AZH07BL-06-06

AZH07BL-01-01

AZH10BS-06-06

AZH10BS-01-01

AZH10BL-06-06

AZH10BL-01-01

AZH13BS-08-10

AZH13BS-01-02

AZH13BL-08-10

AZH13BL-01-02

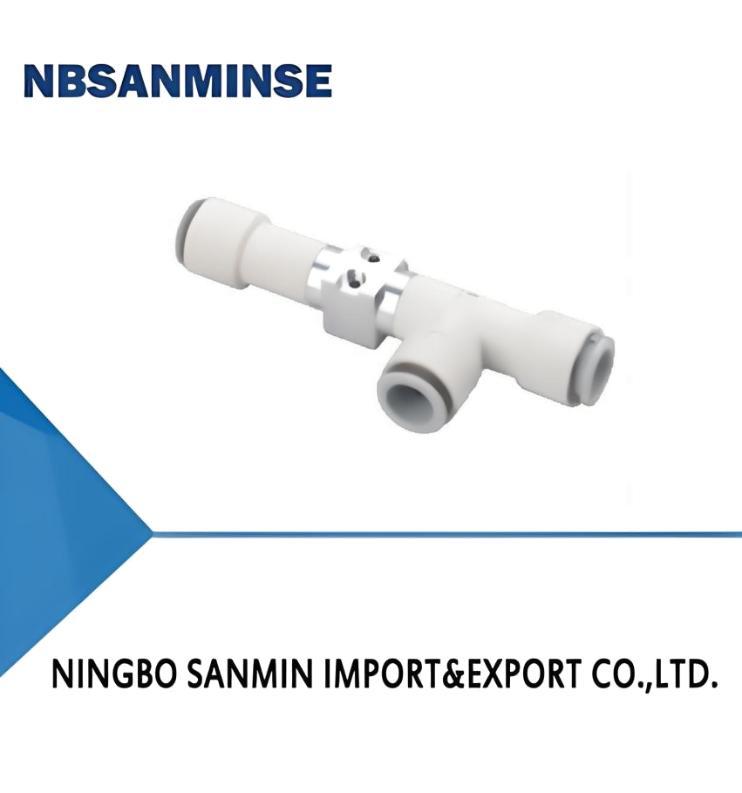

Selection-Body ported type

Model/Shape DS	DL
AZH05DS-06-06-06 AZH05DS-01-01-01	AZH05DL-06-06-06 AZH05DL-01-01-01
AZH07DS-06-06-06 AZH07DS-01-01-01	AZH07DL-06-06-06 AZH07DL-01-01-01
AZH10DS-06-06-08 AZH10DS-01-01-01	AZH10DL-06-06-08 AZH10DL-01-01-01
AZH13DS-08-10-10 AZH13DS-01-02-02	AZH13DL-08-10-10 AZH13DL-01-02-02
AZH15DS-10-12-12 AZH15DS-02-03-03	AZH15DL-10-12-12 AZH15DL-02-03-03
AZH18DS-12-12-12 AZH18DS-03-03-03	AZH18DL-12-12-12 AZH18DL-03-03-03
AZH20DS-12-16-16 AZH20DS-03-04-04	AZH20DL-12-16-16 AZH20DL-03-04-04

Technical parameters

Model	Rated air supplypressure bar	Max.vacuu 5	m level -kPa L	Max.vac 5	uum flow NL/min L	Air consumption NL/min	Noise level dB(A)	Working temperature ℃	Weight g	Recommen Air supply ports	dedhose Vacuum portv	dia. (mm) Exhaust portE
AZH05B	4.5	88	48	5	9	13.5	68	5~50	28	φ6	φ6	-
AZH07B	4.5	88	48	12	22	23.5	68	5~50	28	φ6	φ6	-
AZH10B	4.5	88	48	24	34	46.0	72	5~50	33	φ6	φ6	-
AZH13B	4.5	88	48	40	75	78.0	72	5~50	66	φB	φ10	-

Technical parameters

Model	Ratedair supply pressure bar	Max.Vacuum level -kPa		Max.vacuum flow NL/min		Air consumption NL/min	Noise level dB(A)	Working temperature ℃	Weight g	Recommended hose dia. (mm)
		S	L	S	L					Airsupply port S	Vacuum port V	Exhaust port E
AZH05D	4.5	88	48	7.5	9	13.5	75	5~50	11	φ6	φ6	φ6
AZH07D	4.5	88	48	12	22	23.5	75	5~50	12	φ6	φ6	φ6
AZH10D	4.5	88	48	24	34	46.0	68	5~50	16	φ6	φ6	φ8
AZH13D	4.5	88	48	40	75	78.0	68	5~50	27	φ8	φ10	φ10
AZH15D	4.5	88	53	60	80	97.0	72	5~50	43	φ10	φ12	φ12
AZH18D	4.5	88	53	70	110	150.0	72	5~50	55	φ12	φ12	φ12
AZH20D	4.5	88	53	85	140	185.0	75	5~50	95	φ12	φ16	φ16

Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model	Air supply pressure bar	Air consumption NL/min	0	10	20	30	40	50	60	70	80	Max. vacuum level -kPa
AZH05S	4.5	13.5	5.0	4.5	4.1	3.8	3.3	2.3	1.6	0.9	0.3	88
AZH07S	4.5	23.5	12.0	11.0	10.0	9.0	8.0	7.0	5.5	2.1	0.8	88
AZH10S	4.5	46.0	24.0	23.0	20.5	17.5	13.0	11.5	9.5	7.0	2.5	88
AZH13S	4.5	78.0	40.0	35.0	32.5	28.0	23.0	19.5	13.0	9.0	4.5	88
AZH15S	4.5	97.0	60.0	52.5	45.5	38.0	28.5	20.5	15.5	11.5	5.0	88
AZH18S	4.5	150.0	70.0	62.0	52.0	45.0	38.0	26.0	22.0	16.5	8.5	88
AZH205	4.5	185.0	85.0	76.0	67.0	58.0	47.5	38.0	33.5	19.0	12.0	88

Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model	Air supply pressure bar	Air consumption NL/min	10	20	30	40	50	60	70	Max. vacuum level -kPa
AZH05S	4.5	13.5	0.89	1.70	3.20	5.00	7.80	12.00	19.00	88
AZH07S	4.5	23.5	0.37	1.00	1.90	3.00	5.40	6.70	15.00	88
AZH10S	4.5	46.0	0.25	0.60	1.25	2.00	2.90	4.60	7.30	88
AZH13S	4.5	78.0	0.10	0.27	0.53	1.00	1.75	4.20	7.30	88
AZH15S	4.5	97.0	0.04	0.21	0.35	0.63	1.23	4.10	6.50	88
AZH18S	4.5	150.0	0.02	0.15	0.29	0.46	0.78	1.38	3.51	88
AZH20S	4.5	185.0	0.02	0.12	0.21	0.34	0.55	0.85	1.58	88

Vacuum flow(NL/min) at different vacuum levels(-kPa)

Model	Air supply pressure bar	Air consumption NL/min	0	10	20	30	40	45	Max. vacuum level -kPa
AZH05L	4.5	13.5	9.0	8.0	7.0	6.0	3.0	1.9	48
AZH07L	4.5	23.5	22.0	21.0	20.5	15.5	10.5	6.8	48
AZH10L	4.5	46.0	34.0	32.0	26.0	19.0	12.0	8.0	48
AZH13L	4.5	78.0	75.0	72.0	65.0	43.0	19.0	9.0	48
AZH15L	4.5	9Z.0	80.0	72.0	60.0	45.0	36.5	16.0	53
AZH18L	4.5	150.0	110.0	105.0	95.0	80.0	55.0	30.0	53
AZH20L	4.5	185.0	140.0	130.0	120.0	100.0	80.0	62.0	53

Evacuation time(s/L) to reach different vacuum levels(-kPa)

Model	Air supply pressure bar	Air consumption NL/min	10	20	30	40	45	Max. vacuum level -kPa
AZH05L	4.5	13.5	0.49	1.50	2.90	5.10	7.20	48
AZH07L	4.5	23.5	0.28	0.75	1.50	2.50	3.50	48
AZH10L	4.5	46.0	0.14	0.40	0.81	1.40	1.80	48
AZH13L	4.5	78.0	0.04	0.12	0.24	0.62	2.40	48
AZH15L	4.5	97.0	0.03	0.15	0.23	0.40	0.92	53
AZH18L	4.5	150.0	0.02	0.10	0.18	0.32	0.67	53
AZH20L	4.5	185.0	0.01	0.08	0.14	0.20	0.30	53

Technical parameters

Dimensions(mm)

ModeVSize	A	B	C	D	E\|	F	G	H	L	K	J
AZH05DS-06-06-06	58.5	34.0	14.2	17.0	6	21.0	3.2	24.0	6	22.0	6
AZH07DS-06-06-06	61.0	34.0	14.2	17.0	6	22.0	3.2	24.0	6	22.0	6
AZH10DS-06-06-08	66.0	37.0	17.2	20.0	6	24.5	4.2	26.0	8	230	6
AZH10DL-06-06-08	70.0	37.0	17.2	20.0	6	24.5	4.2	26.0	8	23.0	6
AZH13DS-08-10-10	74.0	42.5	20.0	22.0	8	27.0	4.2	28.0	10	27.5	10
AZH13DL-08-10-10	79.5	42.5	20.0	22.0	8	27.0	4.2	28.0	10	27.5	10
AZH15DS-10-12-12	93.3	47.0	22.5	27.0	10	32.8	4.2	31.5	12	29.5	12
AZH18DS-12-12-12	114.0	41.0	21.0	10.0	12	50.0	3.5	35.5	12	30.5	12
AZH20DS-12-16-16	124.6	46.0	27.0	12.0	12	54.3	3.5	38.5	16	32.7	16

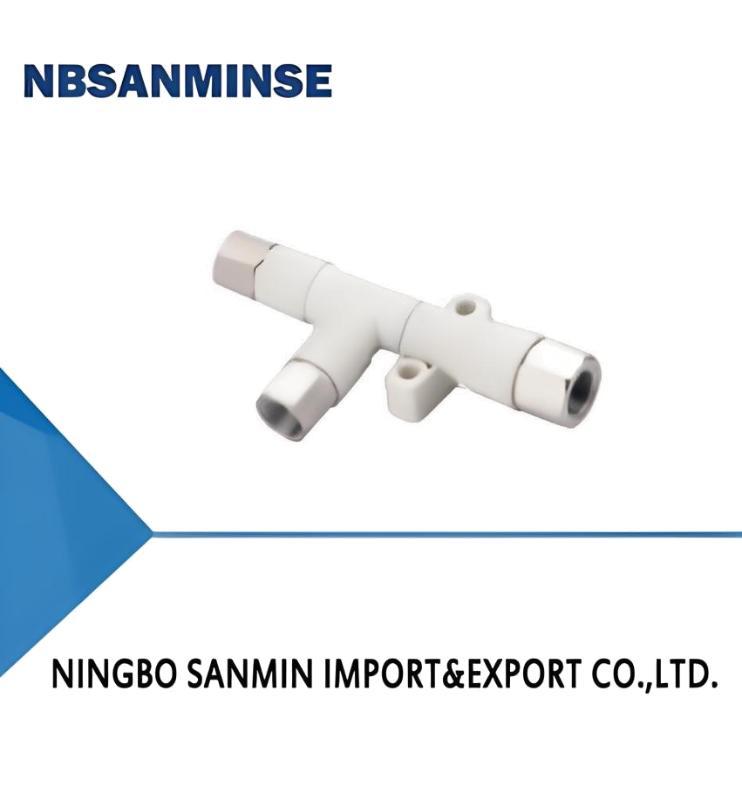

AZH-D Body portedtype(One-touch fitting)
ModeVSize	A	B	C	D	E\|	F	G	H	L	K	J
AZH05DS-01-01-01	73.5	41.5	14.2	17.0	Rc1/8	28.5	3.2	31.5	Rc1/8	29.5	Rc1/8
AZH07DS-01-01-01	76.0	41.5	14.2	17.0	Rc1/8	29.5	3.2	31.5	Rc1/8	29.5	Rc1/8
AZH10DS-01-01-01	82.0	44.5	17.2	20.0	Rc1/8	33.0	4.2	33.5	Rc1/8	30.5	Rc1/8
AZH10DS-01-01-01	86.0	44.5	17.2	20.0	Rc1/8	33.0	4.2	33.5	Rc1/8	30.5	Rc1/8
AZH13DS-01-02-02	94.5	54.0	20.0	22.0	Rc1/8	38.5	4.2	36.5	Rc1/4	39.0	Rc1/4
AZH13DL-01-02-02	99.5	54.0	20.0	22.0	Rc1/8	38.5	4.2	36.5	Rc1/4	39.0	Rc1/4
AZH15DS-02-03-03	116.5	58.5	22.5	27.0	Rc1/4	44.5	4.2	43.0	Rc3/8	41.0	Rc3/8
AZH18DS-03-03-03	133.0	52.5	21.0	10.0	Rc3/8	57.5	3.5	47.0	Rc3/8	42.0	Rc3/8
AZH20DS-03-04-04	151.0	61.0	27.0	12.0	Rc3/8	69.3	3.5	50.0	Rc1/2	47.7	Rc1/2

Dimensions(mm)

ModeVSize	A	B	C	D	E	F\|	G	H	Q	L	K	J
AZH05B-06-06	60	16	31	5.8	2	3.2	47	22	24	6	5	6
AZH07B-06-06	60	16	31	5.8	2	3.2	47	22	24	6	5	6
AZH10B-06-06	63	18	32	5.8	2	3.2	50	23	26	6	5	6
AZH13B-08-10	78	23	38.5	7.5	3	4.2	61	27.5	28	10	7	8

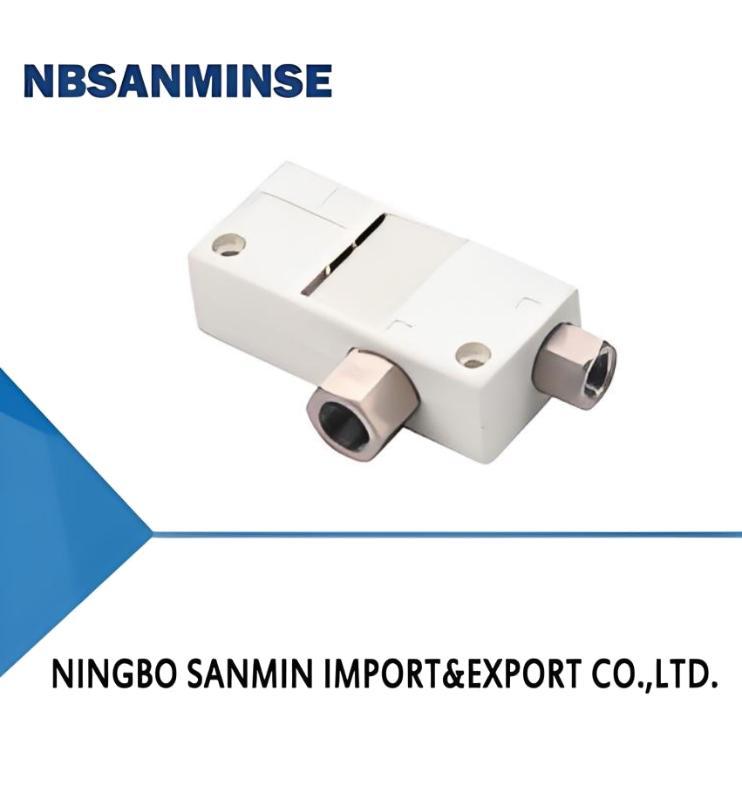

AZH-B Box type(One-touch fiting)
ModeVSize	A	B	C	D	E	F	G	H	Q	M	K	S
AZH05B-01-01	68	16	39	5.8	2	3.2	47	Rc1/8	31.5	Rc1/8	5	12
AZH07B-01-01	68	16	39	5.8	2	3.2	47	Rc1/8	31.5	Rc1/8	5	12
AZH10B-01-01	71	18	40	5.8	2	3.2	50	Rc1/8	33.5	Rc1/8	5	12
AZH13B-01-02	86.5	23	50	7.5	3	4.2	61	Rc1/8	36.5	Rc1/4	7	14
