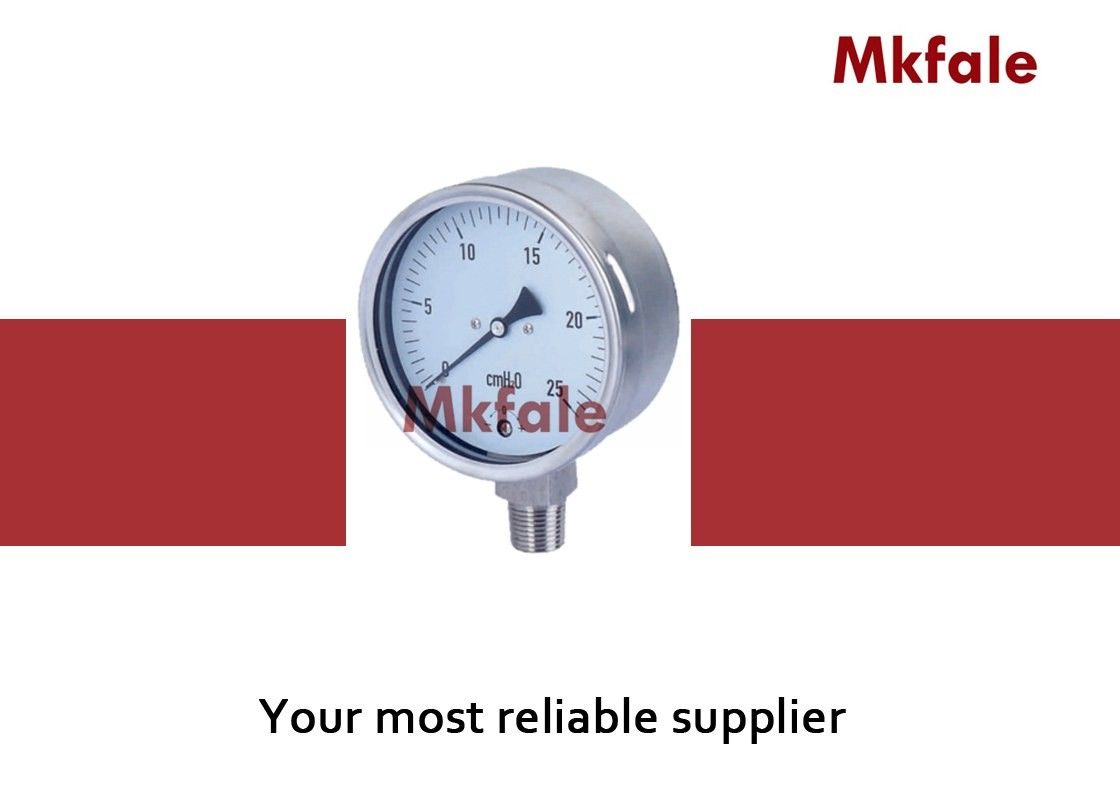

2 4 Inch Stainless Steel Pressure Gauge , Dry Type Digital Water Pressure Gauge
Technical Specification Table
|
STAINLESS STEEL CASE
CAPSULE GAUGE
|
SMSSD All Stainless
Steel Capsule Gauge
|
| Application |
SMSSD Series is a premium capsule gauge designed for use in low pressure measurement on
extreme corrosive and severe environment. It is non fillable design and by removing the
bezeiring coulb access to zero adjustment zeroing screw on the front dial in replace of
adjustable pointer. Most popular in use in all industries such as process,mining,machine
tools,power plant,steel mills,pulp & paper,water & sewage and petrochemical plants.
|
| Features |
Accuracy class 1.6, Interna calibration Device(ICD)
All stainless steel material,Blow-out-back, Knock-down system back and front flange
DIN case,bayonet lock design, Over pressure up to 30% of Full Scale
Restrictor screw standard, Standard dial unit ranges
Scale ranges -600..0,0..10 to 1000Mbar
|
| Technical Specification |
Nominal Size |
63,75,100 and 160mm |
| Accuracy Class |
Class 1.6,Class 2.5(Φ63,75mm) |
| Ingress Protection. |
IP4 |
| Connection Size |
G3/8 , G1/4,G1/2 or NPT or others |
| Scale Range |
Pressure 0..16 to 0..1000 mbar, *Φ63,75mm min range 16mbar
Vacuum -600 mbar..0, Campund -200..+400 mbar
|
| Filling |
Dry type |
| Tube Element Shape |
Capsule type diaphragm tube |
| Operating Temperature |
Ambient temperature -10° ..+70℃, Medium temperature 90℃ Max. |
| Temperature Error |
Additional error when pressure element tmperature
deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling
|
| Over Pressure Limit |
130% of Full Scale |
| Dial Graduation |
Black graduation on white for single range, Black and red graduation on white for dual ranges |
| Design Material |
Casing and Bezel Ring |
SS304 |
| Sensing Element |
Capsule type,SS316L |
| connection |
SS316L |
| Window |
Plain instrement glass |
| Window gasket |
Industrial rubber seal |
| Pointer |
Black painted aluminium |
| Dial Plate |
Aluminium alloy |
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Customize according to your special request .
4: Provide free products information .
5: One year quality guarantee
