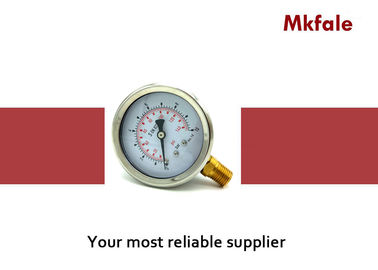

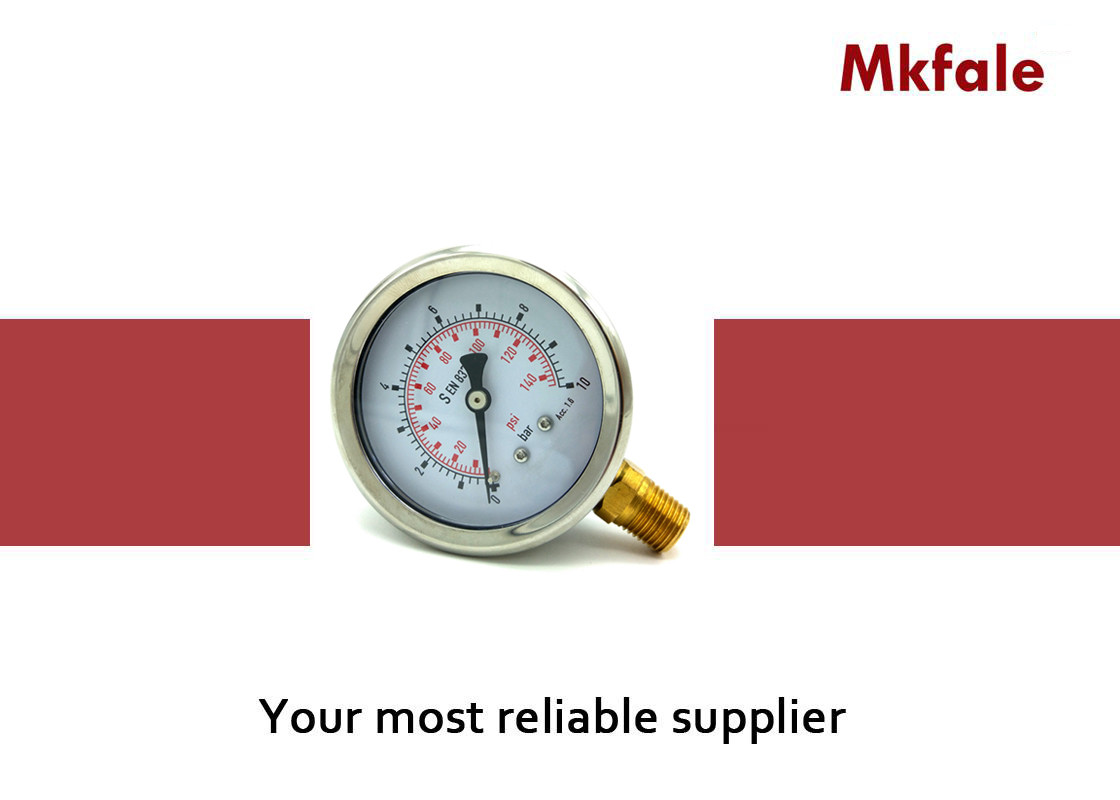

SM1SP - 63mm L / B Liquid Filled Pressure Gauge For Extreme Vibration Application

Product Description

SM1SP - 63mm L / B Liquid Filled Pressure Gauge For Extreme Vibration Application

ONE PIECE CONNECTION STAINLESS STEEL CASE DESIGN
SM1SP One piece connection with crimped case design

Application :
A special design with stainless steel case and copper alloy wetted part and fillable option for
extreme vibration aplication and non-corrosive ambient field condition,with bayonet lock
case design.applicable for pneumatic and hydraulic systems, compressors, engines, pumps,
sprinkles system,building automation system and processing unit where vibration is
concern.

Features :
Accuracy class 1.6,class 1.0, Wide range vibration application
Stainless steel case design, Knock-down system back and front flange
Crimped lock case design, Over pressure up to 30% of Full Scale
Restrictor screw standard, Excellent vibration resist with liquid filling
Design scale ranges up to 600 bar

Technical Specification :

Nominal Size : 63,100 150mm

Accuracy Class : Class 1.6,Class 1.0(Φ>100mm)

Ingress Protection. : IP65 (Weather tight)

Connection Size : G1/4,G1/2 or NPT

Scale Range : Pressure 0..1000 bar, Vacuum -1 bar..0, Compound -1..24 bar
Tube Element Shape : P≤100 bar in c tube, P＞100 bar in helicoil

Filling : Dry or liquid filled

Operating Temperature : Ambient temperature -10° ..+70° C, Medium temperature 90° C Max.
Temperature Error : Additional error when pressure element tmperature deviates from reference temperature +20° C(+68° F), be ±0.4%/10° C(50° F) rising or falling

Over Pressure Limit : 130% of F.S.P≤100 bar, 115% of F.S.P＞100bar



Mounting Code
L:Bottom entry, W:Bottom with back flange, B:Back entry(centre-back,cower-back)
F:Back with front flange, Z:Back with bracket


Why choose us

1: Various style for each products and completely series pneumatic products .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Provide free products information .

FAQ

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
