SMPB8102 Series Silicon - Diffused Pointer Type Pressure Transmitter 24VDC IP65

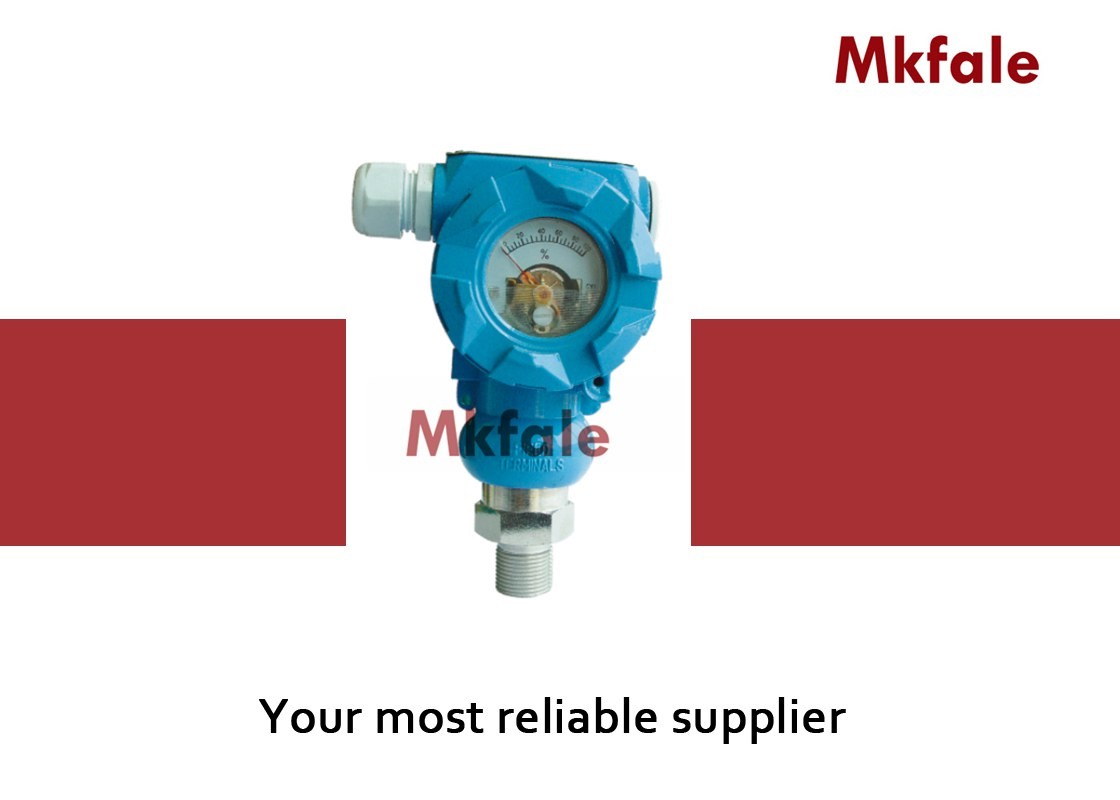

Large Image : SMPB8102 Series Silicon - Diffused Pointer Type Pressure Transmitter 24VDC IP65

Product Details:

Place of Origin:	CHINA
Brand Name:	Mkfale
Certification:	ISO9001
Model Number:	SMPB8102

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

SMPB8102 Series Silicon - Diffused Pointer Type Pressure Transmitter 24VDC IP65

Description

Power Consume:	< 0 . 5W ( 24VDC )	Housing Material:	Aluminium
Diaphragm Material:	SS316L	Wetted Parts:	SS304
Enclosure Protection:	IP65	Operating Temp:	-20 To +85℃
Highlight:	stainless steel pressure gauge , industrial pressure gauge

SMPB8102 Series Silicon - Diffused Pointer Type Pressure Transmitter 24VDC IP65

Tecvhnical Specification Table

Type	SMPB8102
Accuracy	0.25%F S,0.5%F S(including linearity.Hysteresis and repeatability)
Measuring Range	-1 ... 0bar to -1...25bar,0... 0.1bar to 0... 600bar
Linear	Superior to 0.25%F S
1 year stability	Superior to 0.25%F S
Response time	≤ 10 ms
Power supply	24VDC (or 12 to 36VDC)
Output	4 to 20mA(or 0 to 10mA,1 to 5V, 0 to 5V,0 to 10V)
Proof pressure	150%F S
Burst pressure	300%F S
Operating Temp	-20 to +85℃
Compensated Temp	-10 to +70℃
Storing Temp	-40 to +125℃
Process connection	M20*1.5 male or 1/2NPT male
Electric connection	M20*1.5 male
Enclosure Protection	IP65
Wetted parts	SS304
Diaphragm material	SS316L
Housing material	Aluminium
Power Consume	<0.5W(24VDC)
Weight	750g

Why choose us

1: Various style for each products and completely series industry instruments.
2: Provide free products information .
3: Reliable quality assured and active after-sell service
4: Large stock for fast shipping .
5: High quality with competitive price .

FAQ

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.

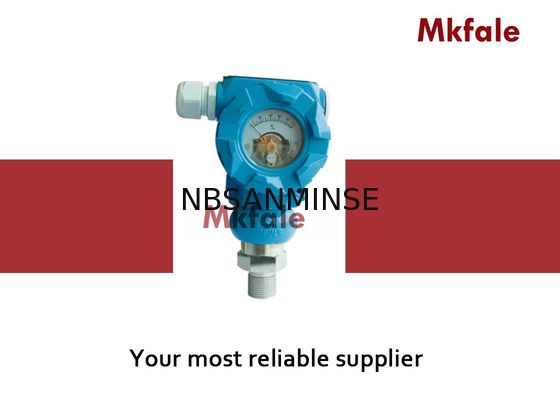

SMPB8102 Series Silicon - Diffused Pointer Type Pressure Transmitter 24VDC IP65 0
