SMAPB6300 Small Steam Pressure Transmitter Liquid High Temperature Pressure Transmitter

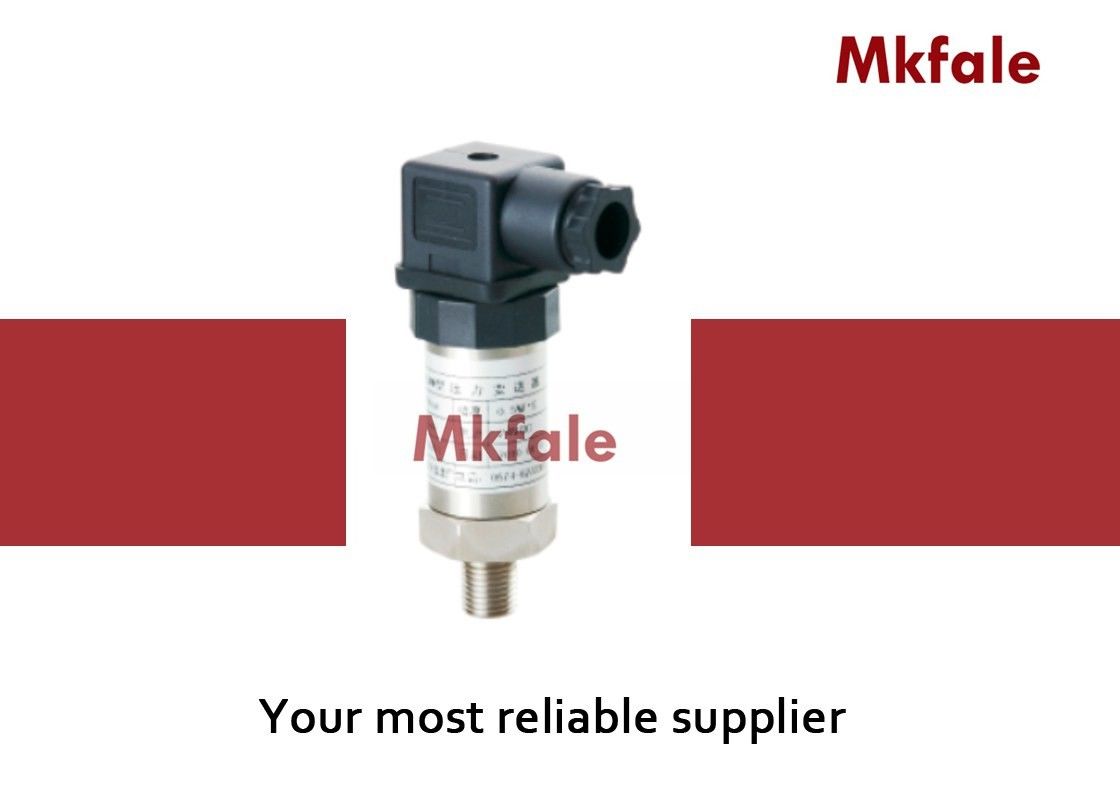

Large Image : SMAPB6300 Small Steam Pressure Transmitter Liquid High Temperature Pressure Transmitter

Product Details:

Place of Origin:	CHINA
Brand Name:	Mkfale
Certification:	ISO9001
Model Number:	SMAPB6300

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

SMAPB6300 Small Steam Pressure Transmitter Liquid High Temperature Pressure Transmitter

Description

Power Consume:	< 0 . 5W ( 24VDC )	Electrical Connections:	DIN43650 Plag Connector
Housing Material:	Plastic	Accuracy:	0.5% FS , 1% FS , 5% FS
Linear:	Superior To 0.5% FS	Response Time:	≤ 10ms
Highlight:	pressure transmitter with display , differential pressure transmitter

SMAPB6300 Small Steam Pressure Transmitter Liquid High Temperature Pressure Transmitter

Technical Specification Table

Type	SMAPB6300
Accuracy	0.5%F S,1%F S,5%F S(including linearity.Hysteresis and repeatability
Measuring Range	0... 1bar to 0... 25bar
Linear	Superior to 0.5%F S
Response time	≤10ms
Power supply	24VDC (or 12 to 36VDC)
Output	4 to 20mA
Load(Ω)	＜(u-12) / 0.02A
Proof pressure	150%F S
Burst pressure	300%F S
Operating Temp	-20 to +85℃
Storing Temp	-40 to +125℃
Process connection	1/2NPT male or 1/4NPT male or 1/8NPT male
Wetted parts	SS304
Housing material	Plastic
Electrical Connections	DIN43650 Plag Connector
Power Consume	<0.5W(24VDC)
Weight	170g

Why choose us

1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

SMAPB6300 Small Steam Pressure Transmitter Liquid High Temperature Pressure Transmitter 0
