High Temperature Digital Pressure Transmitter with 4 ~ 20mA Output and Stainless Steel Wetted Parts

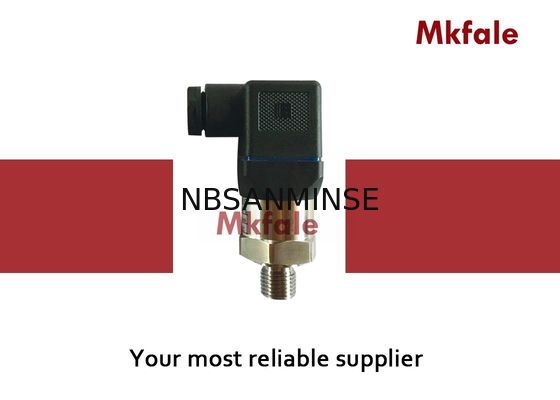

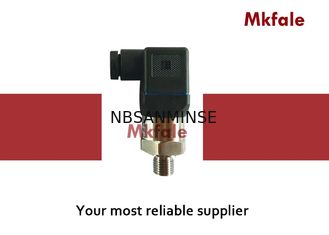

Large Image : High Temperature Digital Pressure Transmitter with 4 ~ 20mA Output and Stainless Steel Wetted Parts

Product Details:

Place of Origin:	CHINA
Brand Name:	Mkfale
Certification:	ISO9001
Model Number:	SMPBA10

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

High Temperature Digital Pressure Transmitter with 4 ~ 20mA Output and Stainless Steel Wetted Parts

Description

Output:	4 ~ 20mA	Wetted Parts:	SS304
Diaphragm Material:	SS316L	Electrical Connections:	DIN43650 Hersman Junction Box
Housing Material:	Plastic	Power Consume:	< 0.5W
Highlight:	high accuracy pressure transmitter , differential pressure transmitter

High Temperature Hydraulic Pressure Transmitter Stainless Steel Wetted Parts

SMPB SERIES PRESSURE TRANSMITTER: SMPBA10

Specification	Value
Accuracy	0.5% F•S, 0.2% F•S
Measuring Range	-0.1MPa ~ 0; 0 ~ (10KPa ~ 60MPa), ≤ 0 ~ 0.5M liquid level
Linear	Superior to 0.2% FS
1 year stability	Superior to 0.2% FS
Response time	≤ 10mS
Power supply	24VDC, 12VDC - 36VDC (constant voltage)
Output	4~20mA
Load(Ω)	0 ~ 600 Ω (Rz = (V - 12) / 0.02 (V is supply voltage)
Proof pressure	150% FS
Burst pressure	300% FS
Operating Temp	-20 ~ +85℃ (＜85℃ use radiating tube)
Storing Temp	-20 ~ +125℃
Process connection	1/4NPT, 1/4BSP
Enclosure Protection	IP63
Wetted parts	SS304
Diaphragm material	SS316L
Electrical Connections	DIN43650 Hersman junction box
Housing material	Plastic
Power Consume	< 0.5W
Weight	150g

Why Choose Us

Various styles for each product and complete series of industry instruments
Customization available according to special requests
Free product information provided
Reliable quality assurance and active after-sales service
Large stock for fast shipping

Frequently Asked Questions

Q: How much is our minimum order quantity?

A: Our minimum quantity is 1 Piece.

Q: What is the price of the product?

A: Our prices are based on the size and type of material. Please provide your requirements for an estimated price. We can accommodate any size and design.

Q: What types of service do you offer?

A: We provide technical information for your working conditions and offer advice about product details.

Q: Could you offer free samples?

A: Yes, we offer free samples for special customers, including pre-production and production samples.
