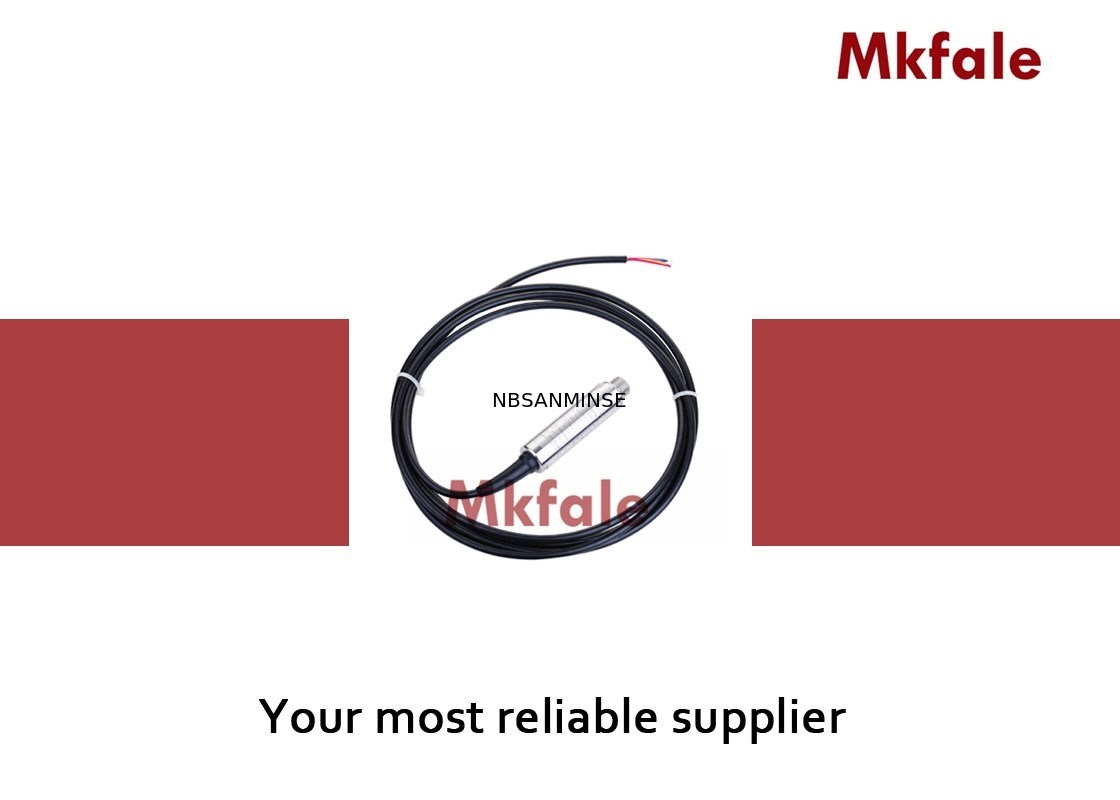

PTFE / Polythene Cable Pressure Transmitter For Level Measurement

Product Description

PTFE Submersible Level Transmitter , Pressure Transmitter For Level Measurement

Technical Specification Table

Accuracy :

0 . 5 % F S

Measuring range :

0 ~ 5 m to 0 ~ 1500m

Linearity :

Superior to 0 . 2 % F S

Temperature drift :

＜ superior to ± 0 . 03 % F S / ℃

Stability :

superior to 0 . 5 % F S for 1 year

Response time :

10ms

Power supply :

12 to 36VDC

Output :

4 ~ 20mADC

Load resistance :

0 ~ 600 Ω

Liquid Temp :

- 10 ~ 60 ℃

Compensated temp :

- 10 ~ 60 ℃

Storage temp :

- 45 ~ 125 ℃

Installation position :

Direct into the bottom of the liquid

Housing Material :

304 Stainless Steel or 316 Stainless Steel

Diaphragm material :

316L Stainless Steel

Why choose us

1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .

4: Sample order & small quantity order is acceptable .

5: 12-18month quality guarantee
6: Customize according to your special request .

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
