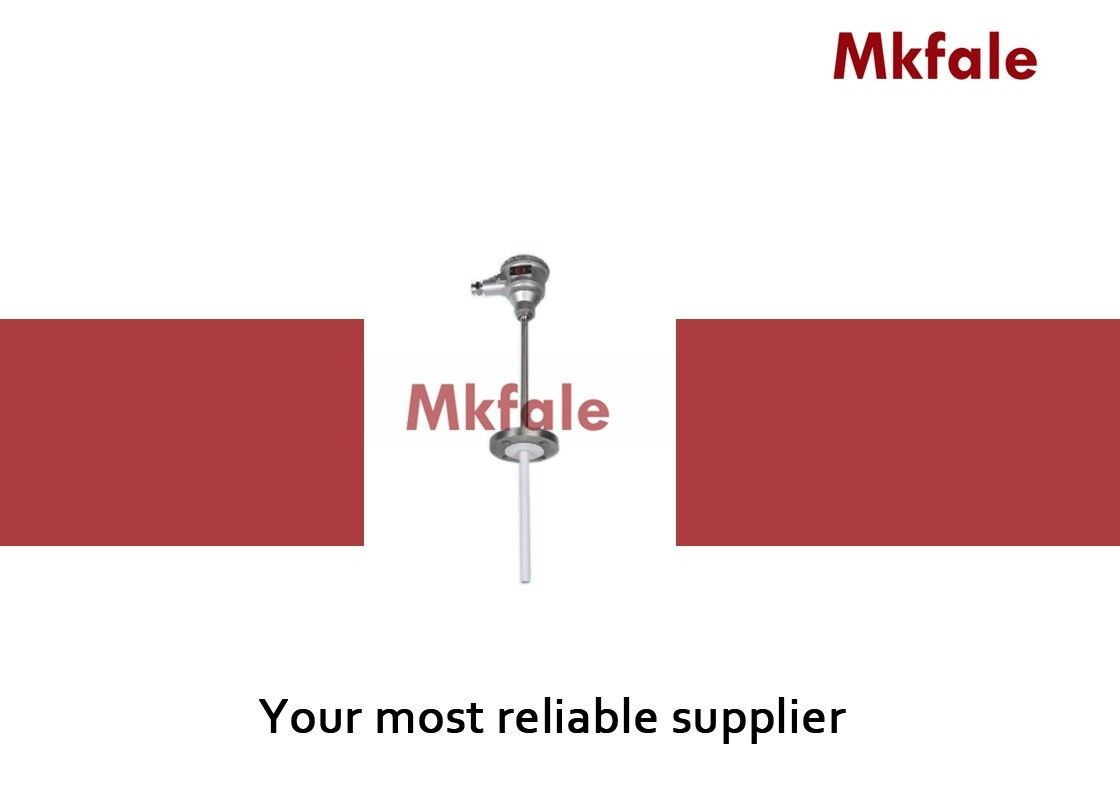

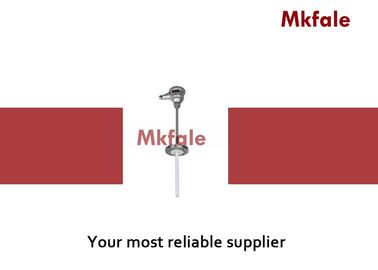

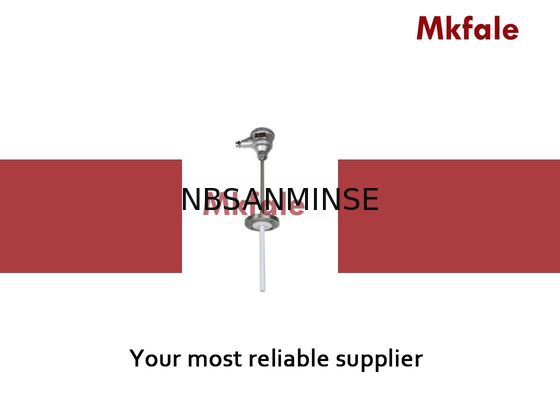

High Accuracy Thermocouple Temperature Transmitter 4-20mA Output

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : 5 - 30 Work Days
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: China Brand Name: Mkfale
Model Number: SMITT

Detail Information

Accuracy: ± 0 . 2 % F S , ± 0 . 5 % F S Output: 4 ~ 20 MA
Power Supply: 12 ~ 36VDC ( Or 24VDC ) Humidity: 5 ~ 95 %
Power: < 0 . 5 W ( 24VDC ) Senor: RTD / TC
High Light:

liquid filled pressure gauge

,

industrial pressure gauge

Product Description

High Accuracy Thermocouple Temperature Transmitter 4-20 mA Output





Technical Specification Table



Senor :

RTD / TC



RTD :

Pt100 , Pt1000 , Pt 500



Tc :

K , E , S , J , T , Etc



Range :

Optional



Internal cold junction for TC



Material :

304 , 316 Stainless Steel , Corundum Tube , Etc



Diameter :

Φ 4 , Φ 6 , Φ 8 , Φ 10 .



With explosion – proof properties



Local Indicator :

LCD , LED



Insert depth , the length and diameter size can be customized



Can be anti – corrosion features :

to protect pipe line four fluorine



Accuracy

± 0 . 2 % F S , ± 0 . 5 % F S

( Including linearity , hysteresis and repeatability )

Output ( 2 wires ) 4 … 20mA
Power supply 12 … 36 VDC ( Or 24VDC )
Ambient Temp - 25 … 85 ℃
Storage Temp - 45 … 125 ℃
Humidity 5 … 95 %
Accuracy of the indicator

± 2 . 5 % ( 100 % scale )

± 1 . 0 % ( LED )

± 1 . 0 % ( LCD )

Power consume < 0 . 5 W ( 24VDC )
Process connection Clamp , flange , screw





Why choose us



1: Provide free products information .
2: Reliable quality assured and active after-sell service
3: Various style for each products and completely series industry instruments.
4: Large stock for fast shipping .
5: High quality with competitive price .
6: Sample order & small quantity order is acceptable .



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
