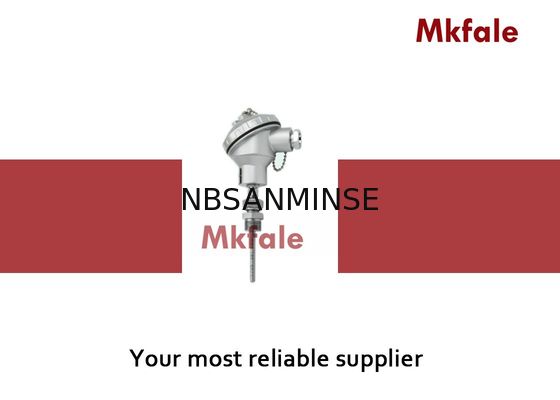

Portable Thermocouple Temperature Transmitter SMITT Clamp Flange

Product Description

Portable Thermocouple Temperature Transmitter SMITT Clamp Flange , Screw Process Connection Integral

Portable Thermocouple Temperature Transmitter SMITT Clamp Flange , Screw Process Connection Integral

Technical Specification Table

Accuracy : ± 0 . 2 % F S , ± 0 . 5 % F S

( Including linearity , hysteresis and repeatability )

Output ( 2 wires ) : 4 … 20mA

Power supply : 12 … 36 VDC ( Or 24VDC )

Ambient Temp : - 25 … 85 ℃

Storage Temp : - 45 … 125 ℃

Humidity : 5 … 95 %

Accuracy of the indicator :

± 2 . 5 % ( 100 % scale )

± 1 . 0 % ( LED )

± 1 . 0 % ( LCD )

Power consume : ＜ 0 . 5 W ( 24VDC )

Process connection : Clamp , flange , screw

Senor : RTD / TC

RTD : Pt100 , Pt1000 , Pt 5000

Tc : K , E , S , J , T , Etc

Range : Optional

Internal cold junction for TC

Material : 304 , 316 Stainless Steel , Corundum Tube , Etc

Diameter : Φ 4 , Φ 6 , Φ 8 , Φ 10 .

With explosion – proof properties

Local Indicator : LCD , LED

Insert depth , the length and diameter size can be customized

Can be anti – corrosion features : to protect pipe line four fluorine

Why choose us

1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: Various style for each products and completely series industry instruments.
6: Large stock for fast shipping .

FAQ

Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
